FRONT WHEEL SENSOR: Exploded View

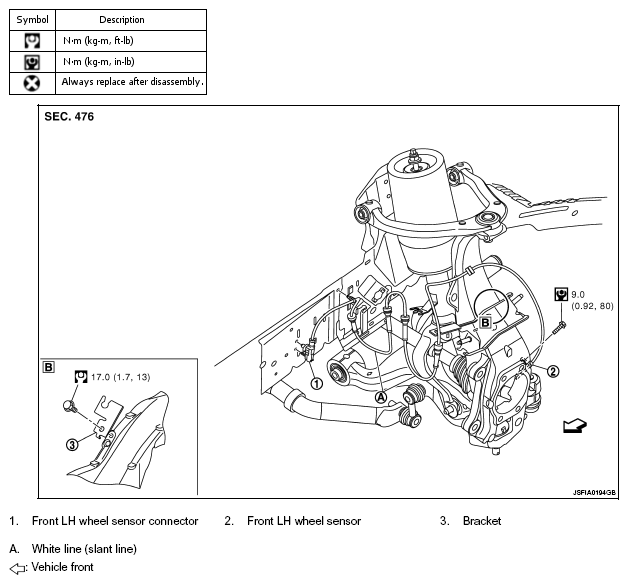

Fig 1: Front Wheel Sensor Replacement Components With Torque Specifications
G05981858Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION or COMPONENTS for symbol marks above.

NOTE: The above graphic shows left side. Right side is the mirror image.
