REAR WHEEL SENSOR: Exploded View

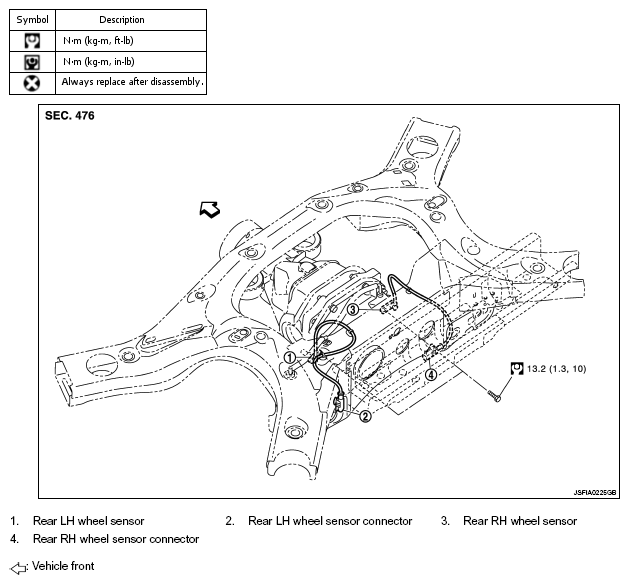

Fig 1: Rear Wheel Sensor Replacement Components With Torque Specifications
G05981859Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION or COMPONENTS for symbol marks above.
