WITH ELECTRIC MOTOR: Exploded View

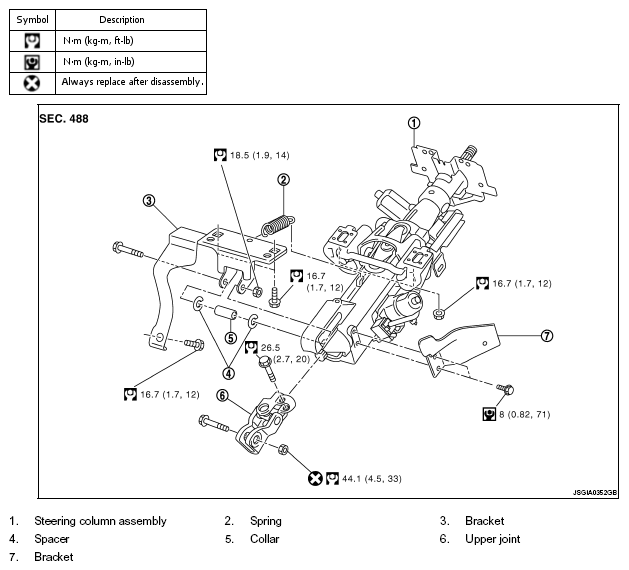

Fig 1: Exploded View Of Steering Column - With Electric Motor With Torque Specifications
G05984446Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols above.
