AWD: Exploded View

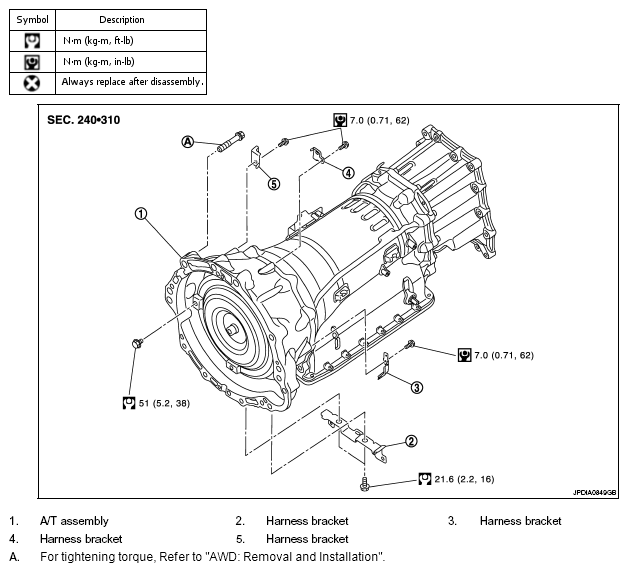

Fig 1: View Of AWD Transmission Assembly With Torque Specifications
G05980389Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols above.
