AWD models

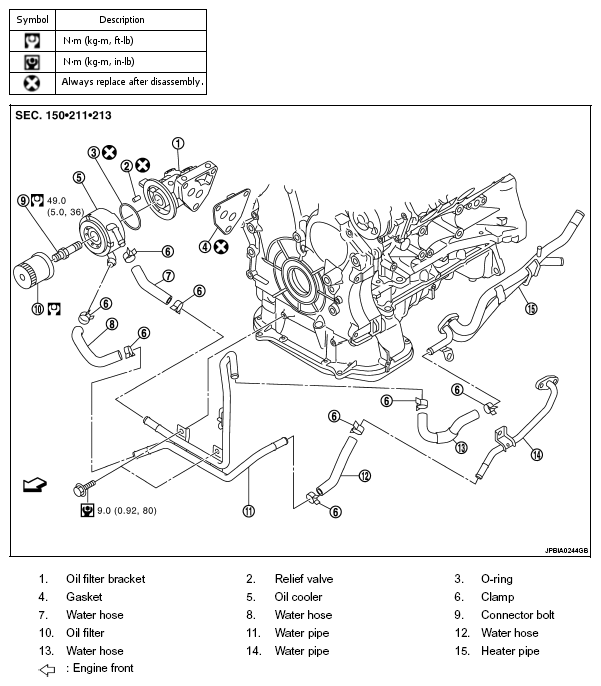

Fig 1: Exploded View Of Oil Cooler With Torque Specifications (2WD Models)
G05983669Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the graphic.
