EVAP Control System Pressure Sensor Connector End View (B252)

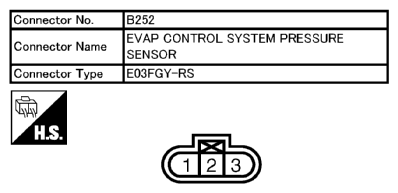

Fig 1: EVAP Control System Pressure Sensor Connector End View (B252)
G10659202Courtesy of NISSAN NORTH AMERICA, INC.
