Exploded View

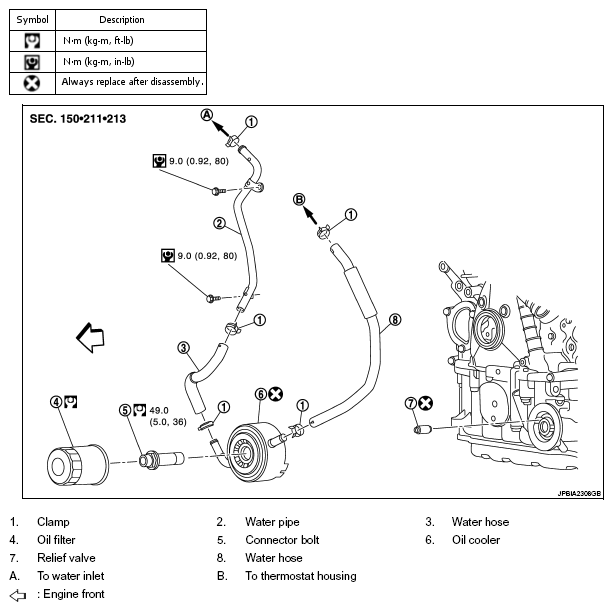

Fig 1: Exploded View Of Oil Cooler With Torque Specifications
G05983691Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to EXPLODED VIEW for symbols in the graphic.
