Component Parts Location

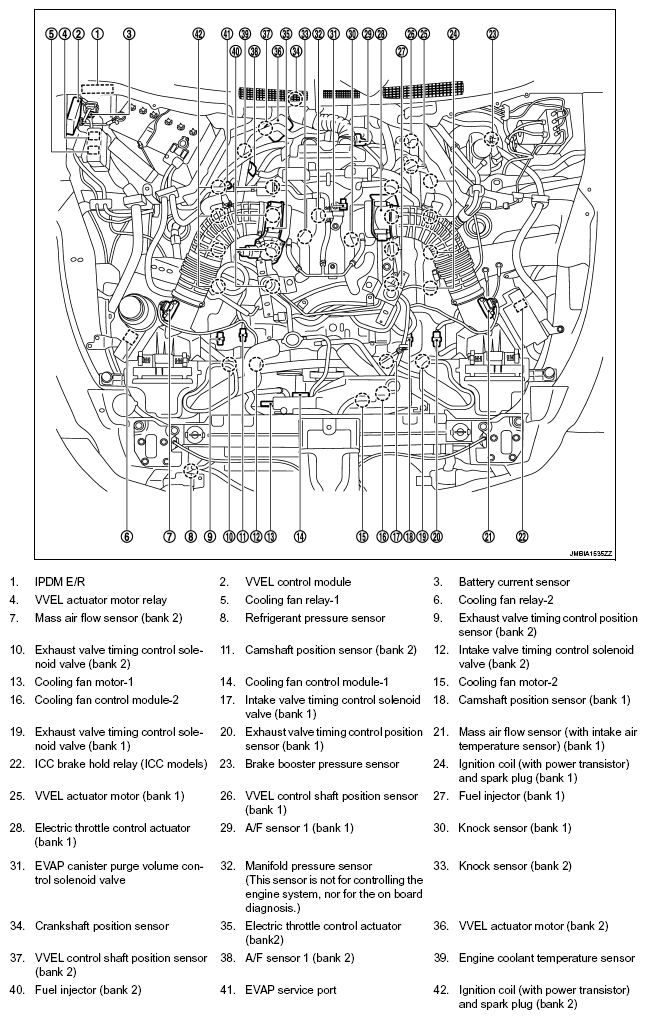

Fig 1: Identifying Air Conditioning Cut Control Component Parts Location (1 Of 24)

G05978754

Courtesy of NISSAN MOTOR CO., U.S.A.

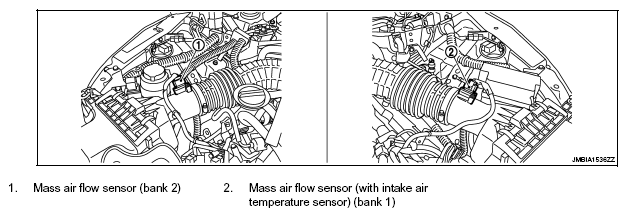

Fig 2: Identifying Air Conditioning Cut Control Component Parts Location (2 Of 24)

G05978755

Courtesy of NISSAN MOTOR CO., U.S.A.

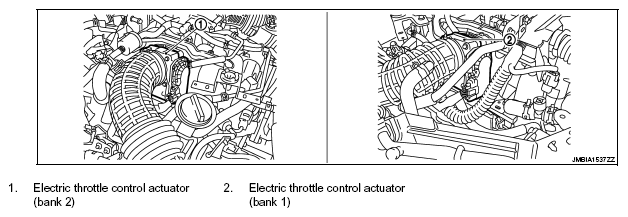

Fig 3: Identifying Air Conditioning Cut Control Component Parts Location (3 Of 24)

G05978756

Courtesy of NISSAN MOTOR CO., U.S.A.

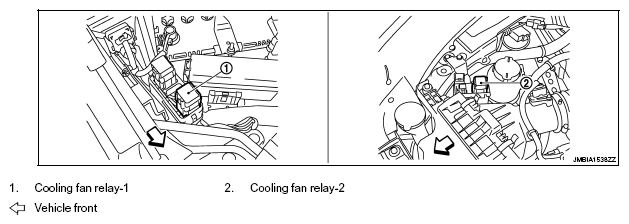

Fig 4: Identifying Air Conditioning Cut Control Component Parts Location (4 Of 24)

G05978757

Courtesy of NISSAN MOTOR CO., U.S.A.

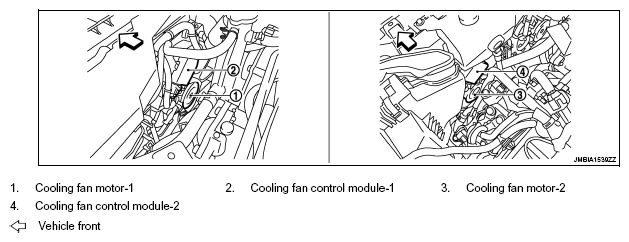

Fig 5: Identifying Air Conditioning Cut Control Component Parts Location (5 Of 24)

G05978758

Courtesy of NISSAN MOTOR CO., U.S.A.

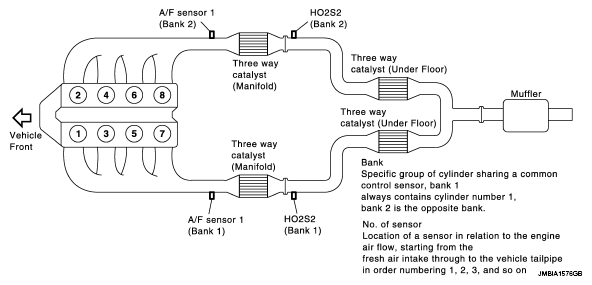

Fig 6: Identifying Air Conditioning Cut Control Component Parts Location (6 Of 24)

G05978759

Courtesy of NISSAN MOTOR CO., U.S.A.

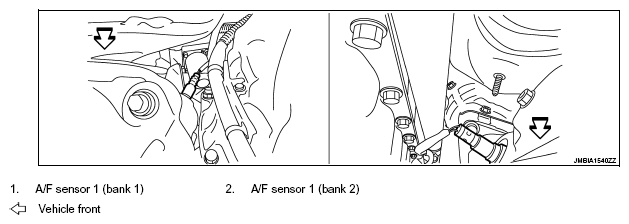

Fig 7: Identifying Air Conditioning Cut Control Component Parts Location (7 Of 24)

G05978760

Courtesy of NISSAN MOTOR CO., U.S.A.

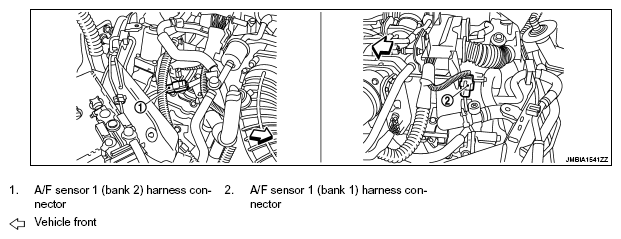

Fig 8: Identifying A/F Sensor 1 Harness Connector

G05978761

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Air Conditioning Cut Control Component Parts Location (8 Of 24)

G05978762

Courtesy of NISSAN MOTOR CO., U.S.A.

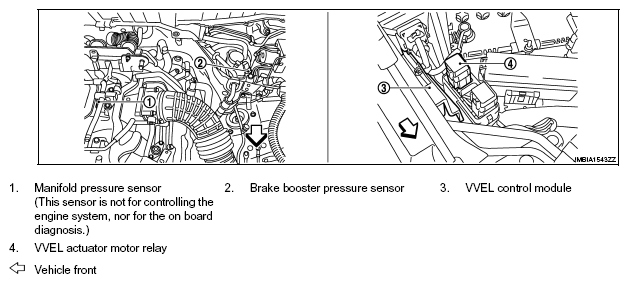

Fig 10: Identifying Air Conditioning Cut Control Component Parts Location (9 Of 24)

G05978763

Courtesy of NISSAN MOTOR CO., U.S.A.

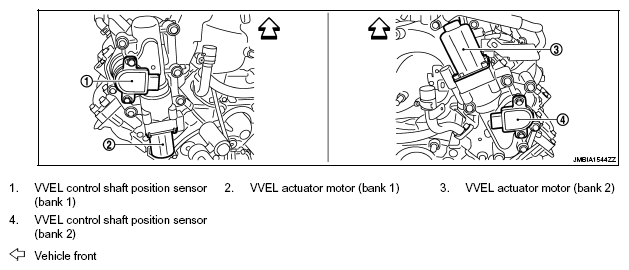

Fig 11: Identifying Air Conditioning Cut Control Component Parts Location (10 Of 24)

G05978764

Courtesy of NISSAN MOTOR CO., U.S.A.

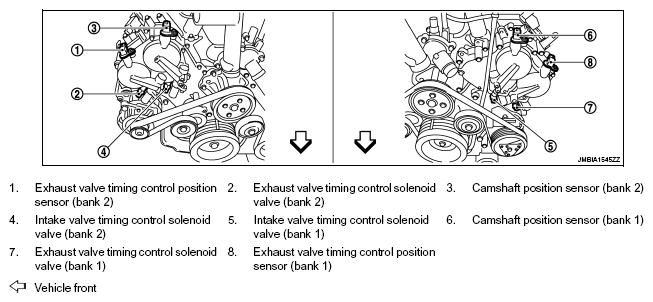

Fig 12: Identifying Air Conditioning Cut Control Component Parts Location (11 Of 24)

G05978765

Courtesy of NISSAN MOTOR CO., U.S.A.

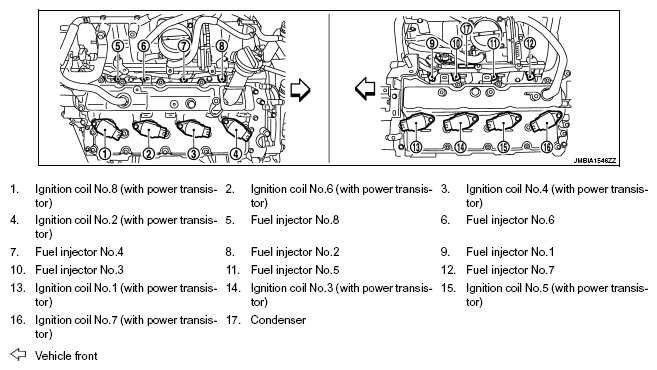

Fig 13: Identifying Air Conditioning Cut Control Component Parts Location (12 Of 24)

G05978766

Courtesy of NISSAN MOTOR CO., U.S.A.

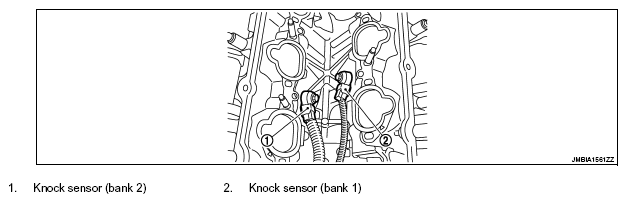

Fig 14: Identifying Air Conditioning Cut Control Component Parts Location (13 Of 24)

G05978767

Courtesy of NISSAN MOTOR CO., U.S.A.

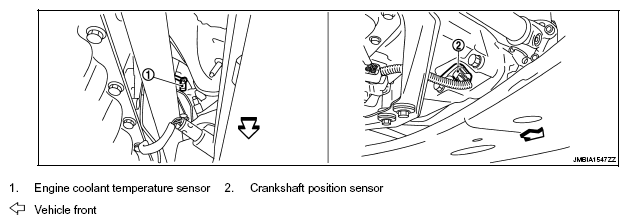

Fig 15: Identifying Air Conditioning Cut Control Component Parts Location (14 Of 24)

G05978768

Courtesy of NISSAN MOTOR CO., U.S.A.

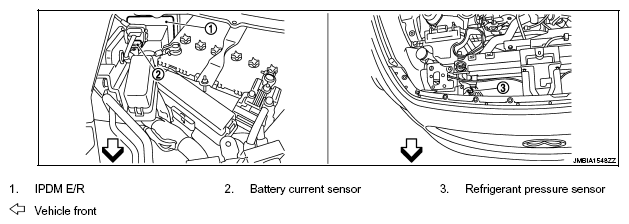

Fig 16: Identifying Air Conditioning Cut Control Component Parts Location (15 Of 24)

G05978769

Courtesy of NISSAN MOTOR CO., U.S.A.

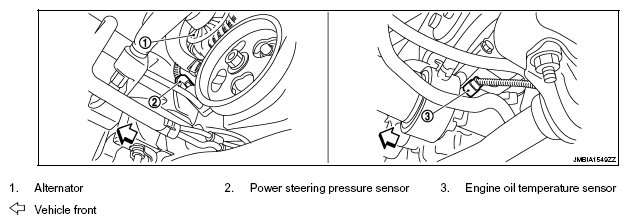

Fig 17: Identifying Air Conditioning Cut Control Component Parts Location (16 Of 24)

G05978770

Courtesy of NISSAN MOTOR CO., U.S.A.

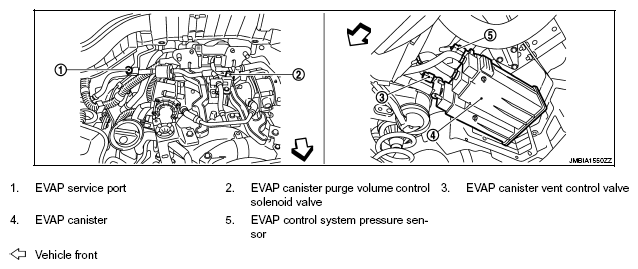

Fig 18: Identifying Air Conditioning Cut Control Component Parts Location (17 Of 24)

G05978771

Courtesy of NISSAN MOTOR CO., U.S.A.

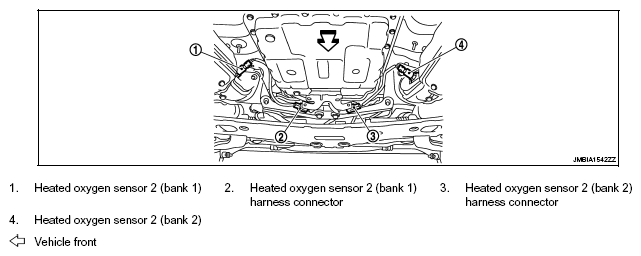

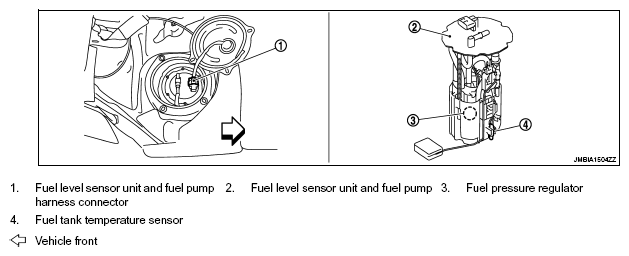

Fig 19: Identifying Air Conditioning Cut Control Component Parts Location (18 Of 24)

G05978772

Courtesy of NISSAN MOTOR CO., U.S.A.

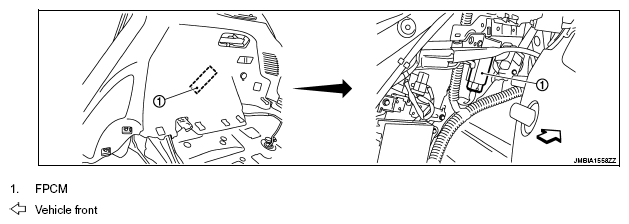

Fig 20: Identifying Air Conditioning Cut Control Component Parts Location (19 Of 24)

G05978773

Courtesy of NISSAN MOTOR CO., U.S.A.

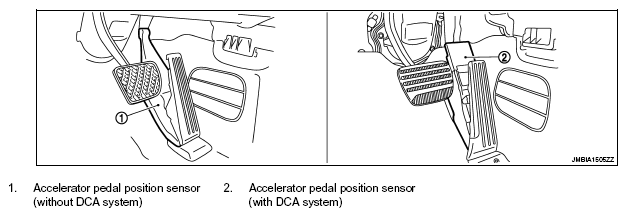

Fig 21: Identifying Air Conditioning Cut Control Component Parts Location (20 Of 24)

G05978774

Courtesy of NISSAN MOTOR CO., U.S.A.

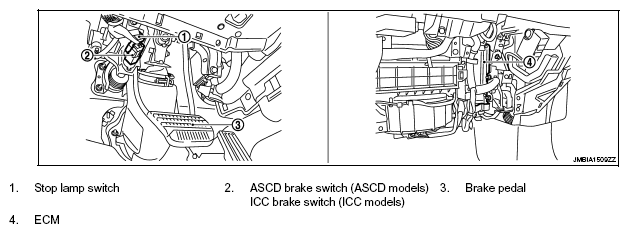

Fig 22: Identifying Air Conditioning Cut Control Component Parts Location (21 Of 24)

G05978775

Courtesy of NISSAN MOTOR CO., U.S.A.

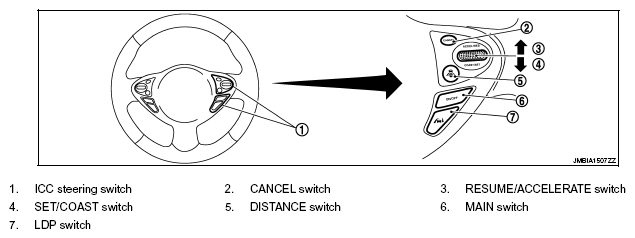

Fig 23: Identifying Air Conditioning Cut Control Component Parts Location (22 Of 24)

G05978776

Courtesy of NISSAN MOTOR CO., U.S.A.

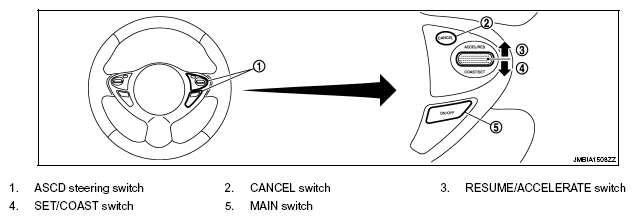

Fig 24: Identifying Air Conditioning Cut Control Component Parts Location (23 Of 24)

G05978777

Courtesy of NISSAN MOTOR CO., U.S.A.

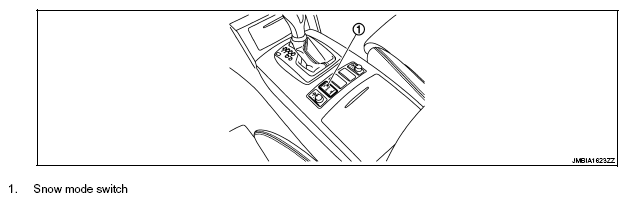

Fig 25: Identifying Air Conditioning Cut Control Component Parts Location (24 Of 24)

G05978778

Courtesy of NISSAN MOTOR CO., U.S.A.
