Component Parts Location

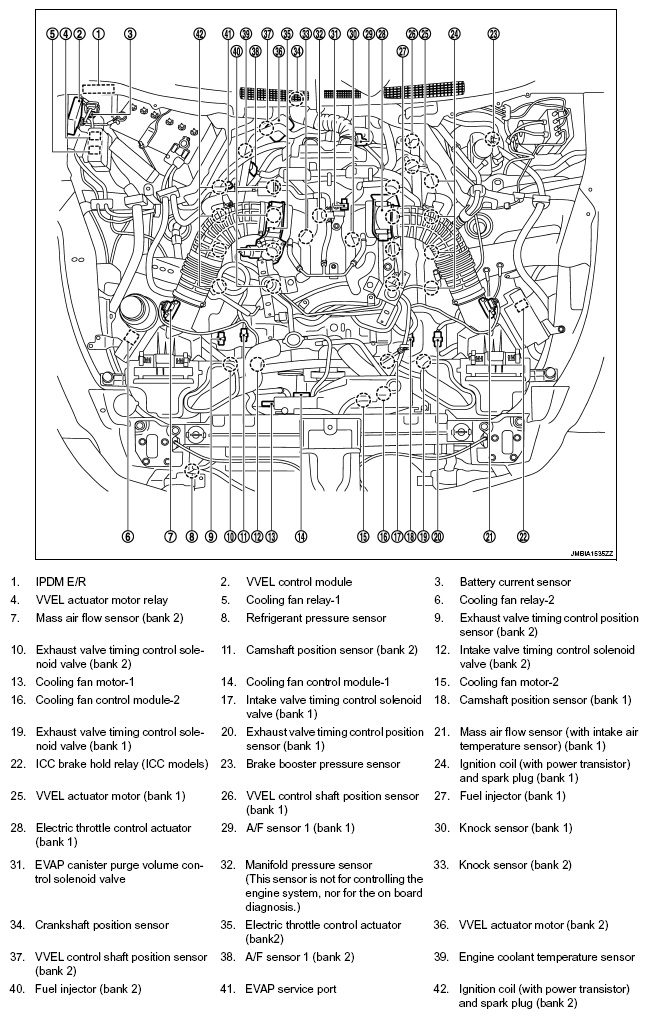

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 24)

G05978915

Courtesy of NISSAN MOTOR CO., U.S.A.

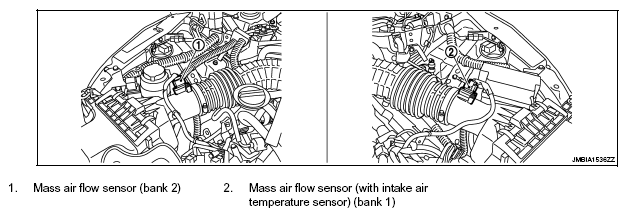

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 24)

G05978916

Courtesy of NISSAN MOTOR CO., U.S.A.

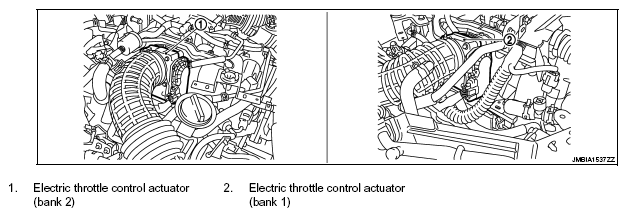

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 24)

G05978917

Courtesy of NISSAN MOTOR CO., U.S.A.

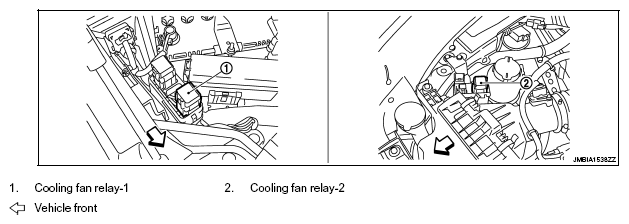

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 24)

G05978918

Courtesy of NISSAN MOTOR CO., U.S.A.

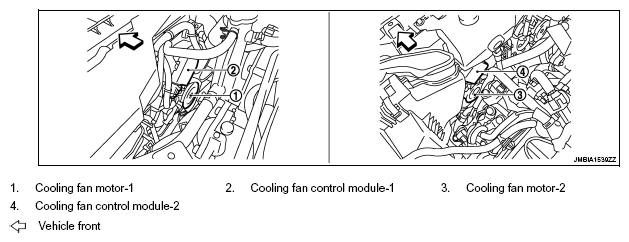

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 24)

G05978919

Courtesy of NISSAN MOTOR CO., U.S.A.

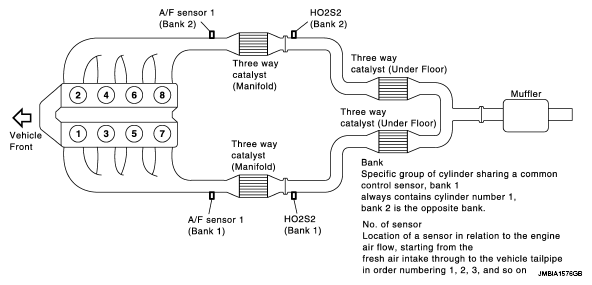

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 24)

G05978920

Courtesy of NISSAN MOTOR CO., U.S.A.

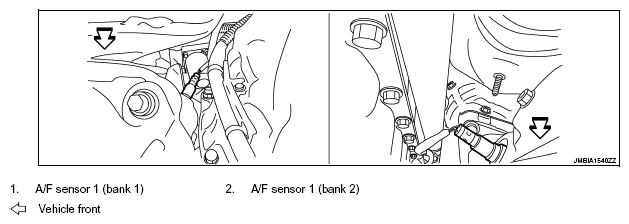

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 24)

G05978921

Courtesy of NISSAN MOTOR CO., U.S.A.

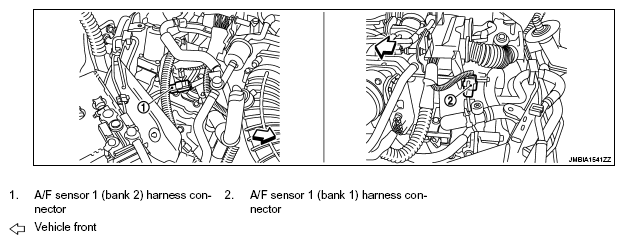

Fig 8: Identifying A/F Sensor 1 Harness Connector Location

G05978922

Courtesy of NISSAN MOTOR CO., U.S.A.

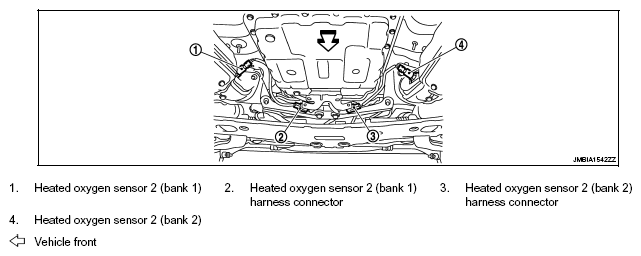

Fig 9: Identifying Intake Valve Timing Control Component Parts Location (8 Of 24)

G05978923

Courtesy of NISSAN MOTOR CO., U.S.A.

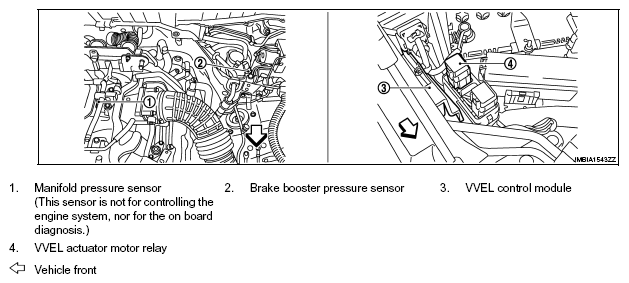

Fig 10: Identifying Intake Valve Timing Control Component Parts Location (9 Of 24)

G05978924

Courtesy of NISSAN MOTOR CO., U.S.A.

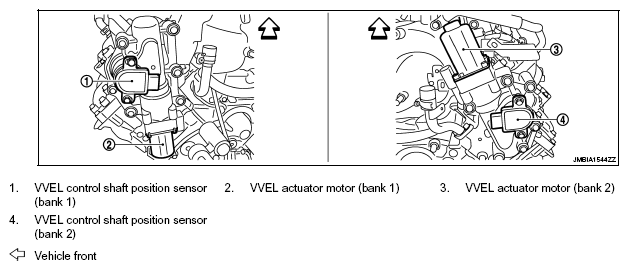

Fig 11: Identifying Intake Valve Timing Control Component Parts Location (10 Of 24)

G05978925

Courtesy of NISSAN MOTOR CO., U.S.A.

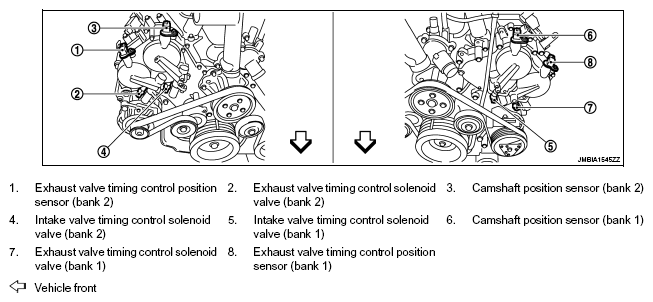

Fig 12: Identifying Intake Valve Timing Control Component Parts Location (11 Of 24)

G05978926

Courtesy of NISSAN MOTOR CO., U.S.A.

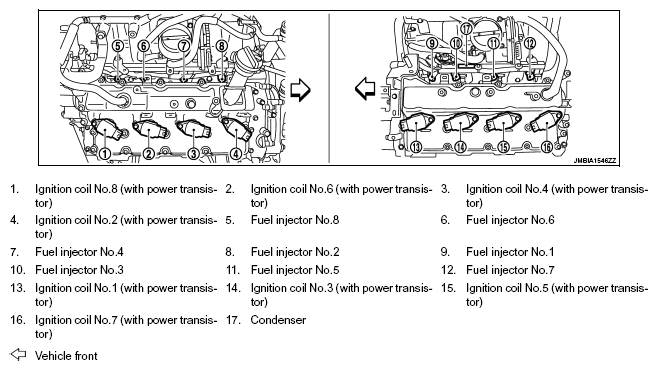

Fig 13: Identifying Intake Valve Timing Control Component Parts Location (12 Of 24)

G05978927

Courtesy of NISSAN MOTOR CO., U.S.A.

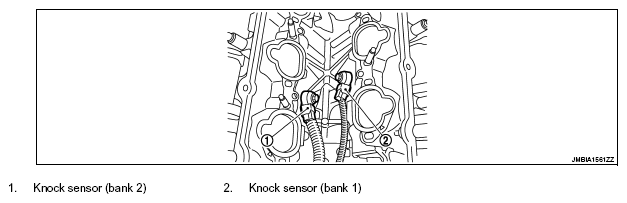

Fig 14: Identifying Intake Valve Timing Control Component Parts Location (13 Of 24)

G05978928

Courtesy of NISSAN MOTOR CO., U.S.A.

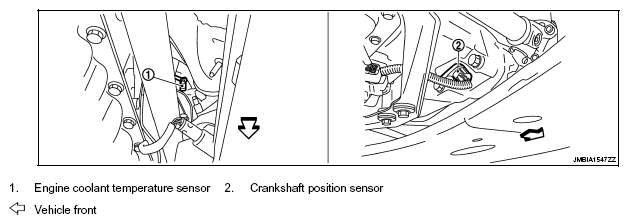

Fig 15: Identifying Intake Valve Timing Control Component Parts Location (14 Of 24)

G05978929

Courtesy of NISSAN MOTOR CO., U.S.A.

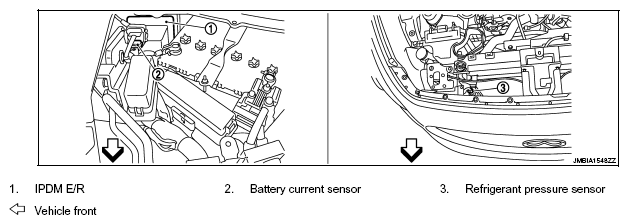

Fig 16: Identifying Intake Valve Timing Control Component Parts Location (15 Of 24)

G05978930

Courtesy of NISSAN MOTOR CO., U.S.A.

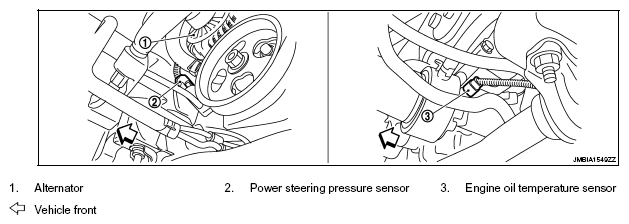

Fig 17: Identifying Intake Valve Timing Control Component Parts Location (16 Of 24)

G05978931

Courtesy of NISSAN MOTOR CO., U.S.A.

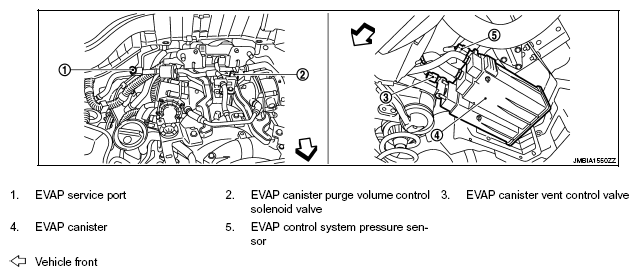

Fig 18: Identifying Intake Valve Timing Control Component Parts Location (17 Of 24)

G05978932

Courtesy of NISSAN MOTOR CO., U.S.A.

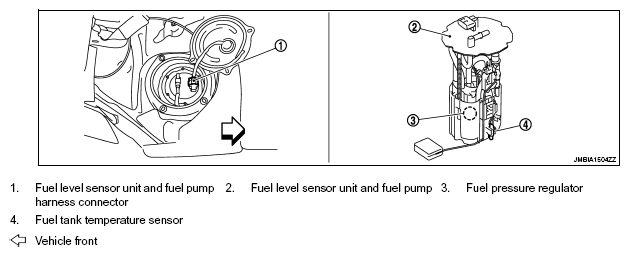

Fig 19: Identifying Intake Valve Timing Control Component Parts Location (18 Of 24)

G05978933

Courtesy of NISSAN MOTOR CO., U.S.A.

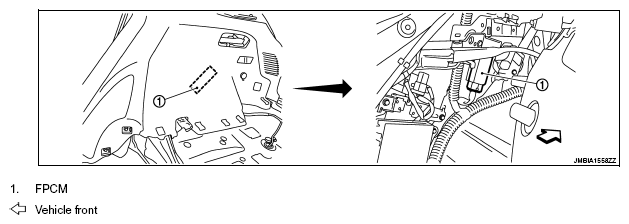

Fig 20: Identifying Intake Valve Timing Control Component Parts Location (19 Of 24)

G05978934

Courtesy of NISSAN MOTOR CO., U.S.A.

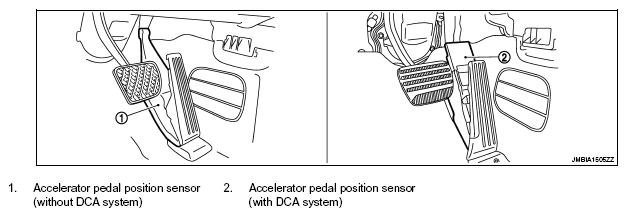

Fig 21: Identifying Intake Valve Timing Control Component Parts Location (20 Of 24)

G05978935

Courtesy of NISSAN MOTOR CO., U.S.A.

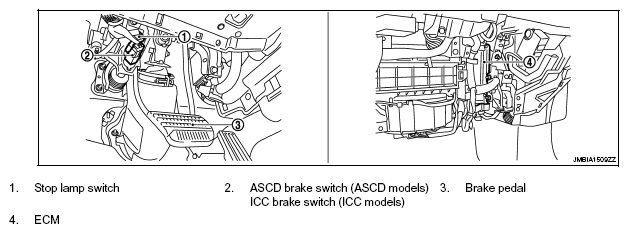

Fig 22: Identifying Intake Valve Timing Control Component Parts Location (21 Of 24)

G05978936

Courtesy of NISSAN MOTOR CO., U.S.A.

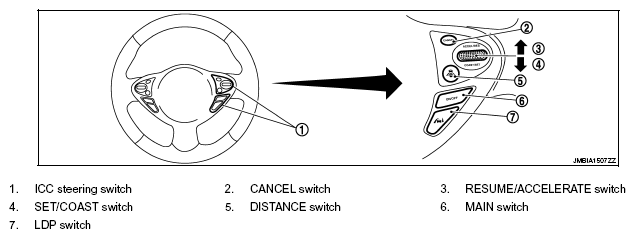

Fig 23: Identifying Intake Valve Timing Control Component Parts Location (22 Of 24)

G05978937

Courtesy of NISSAN MOTOR CO., U.S.A.

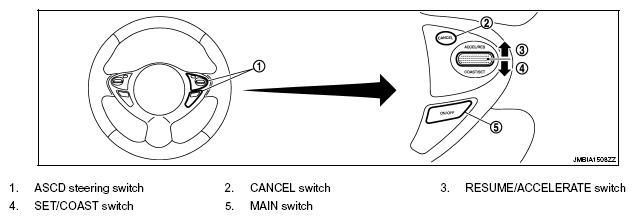

Fig 24: Identifying Intake Valve Timing Control Component Parts Location (23 Of 24)

G05978938

Courtesy of NISSAN MOTOR CO., U.S.A.

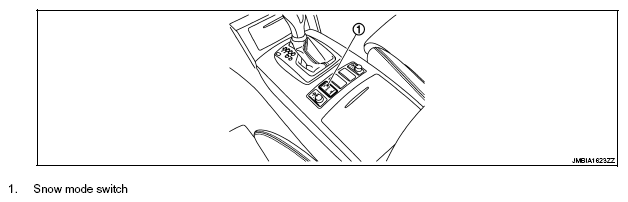

Fig 25: Identifying Intake Valve Timing Control Component Parts Location (24 Of 24)

G05978939

Courtesy of NISSAN MOTOR CO., U.S.A.
