Component Parts Location

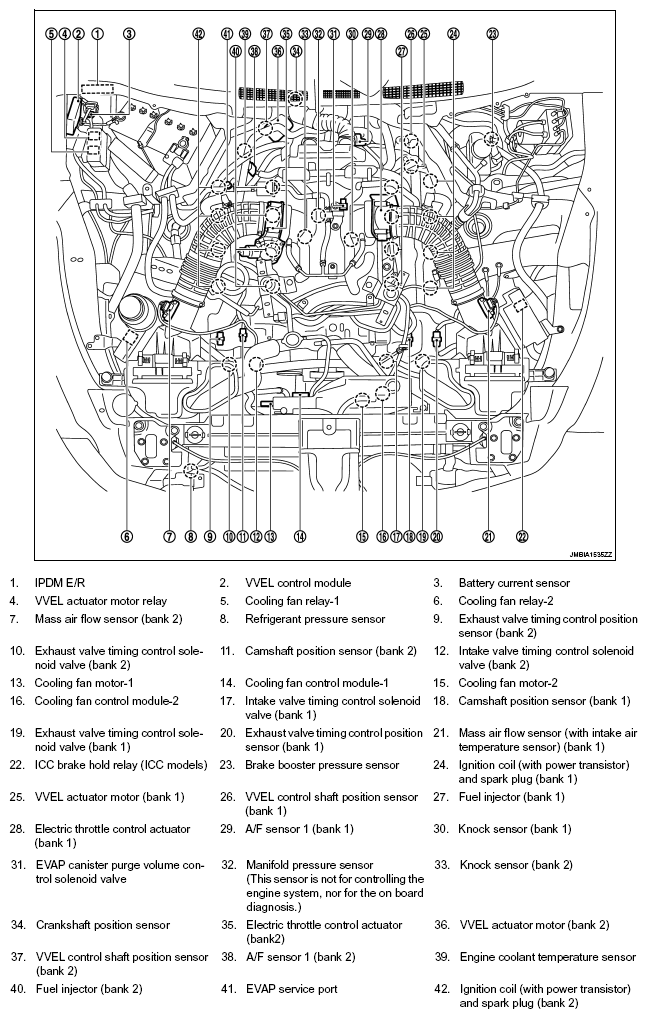

Fig 1: Identifying VVEL System Component Parts Location (1 Of 24)

G05978942

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying VVEL System Component Parts Location (2 Of 24)

G05978943

Courtesy of NISSAN MOTOR CO., U.S.A.

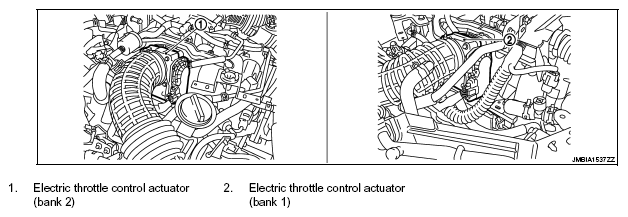

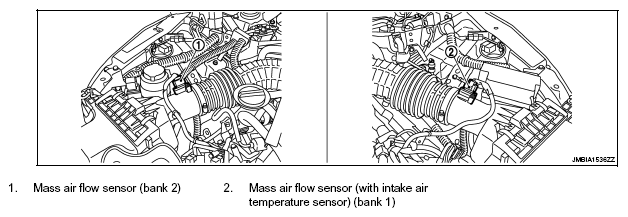

Fig 3: Identifying VVEL System Component Parts Location (3 Of 24)

G05978944

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying VVEL System Component Parts Location (4 Of 24)

G05978945

Courtesy of NISSAN MOTOR CO., U.S.A.

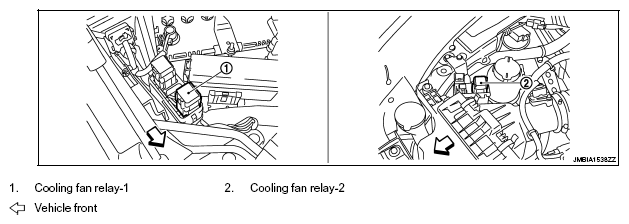

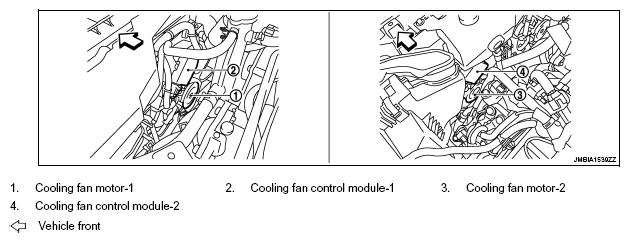

Fig 5: Identifying VVEL System Component Parts Location (5 Of 24)

G05978946

Courtesy of NISSAN MOTOR CO., U.S.A.

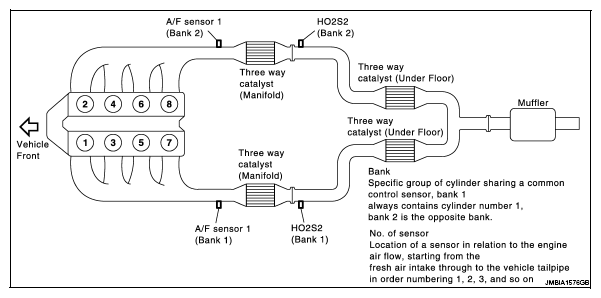

Fig 6: Identifying VVEL System Component Parts Location (6 Of 24)

G05978947

Courtesy of NISSAN MOTOR CO., U.S.A.

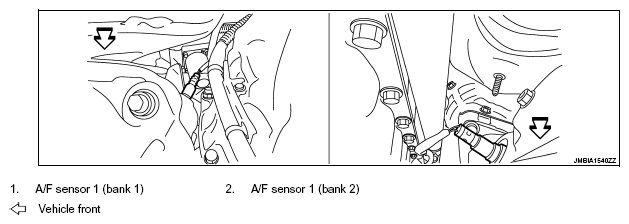

Fig 7: Identifying VVEL System Component Parts Location (7 Of 24)

G05978948

Courtesy of NISSAN MOTOR CO., U.S.A.

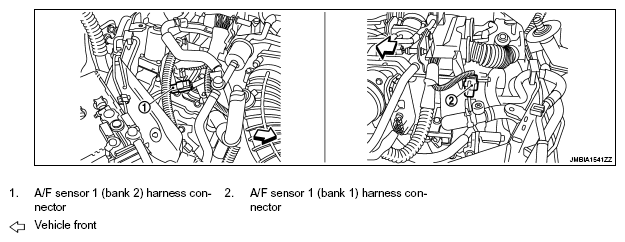

Fig 8: Identifying A/F Sensor 1 Harness Connector Location

G05978949

Courtesy of NISSAN MOTOR CO., U.S.A.

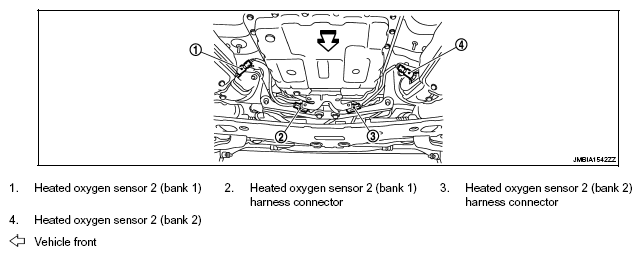

Fig 9: Identifying VVEL System Component Parts Location (8 Of 24)

G05978950

Courtesy of NISSAN MOTOR CO., U.S.A.

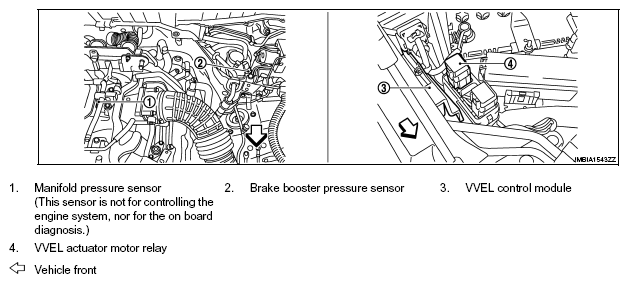

Fig 10: Identifying VVEL System Component Parts Location (9 Of 24)

G05978951

Courtesy of NISSAN MOTOR CO., U.S.A.

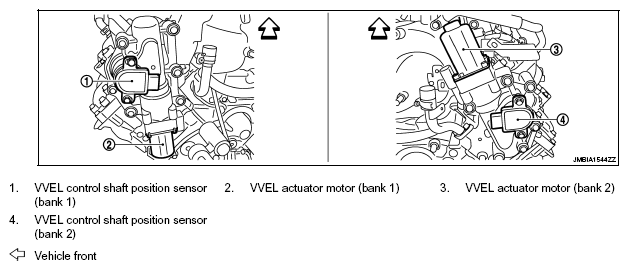

Fig 11: Identifying VVEL System Component Parts Location (10 Of 24)

G05978952

Courtesy of NISSAN MOTOR CO., U.S.A.

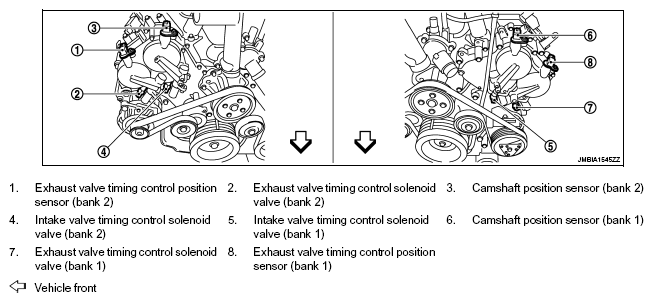

Fig 12: Identifying VVEL System Component Parts Location (11 Of 24)

G05978953

Courtesy of NISSAN MOTOR CO., U.S.A.

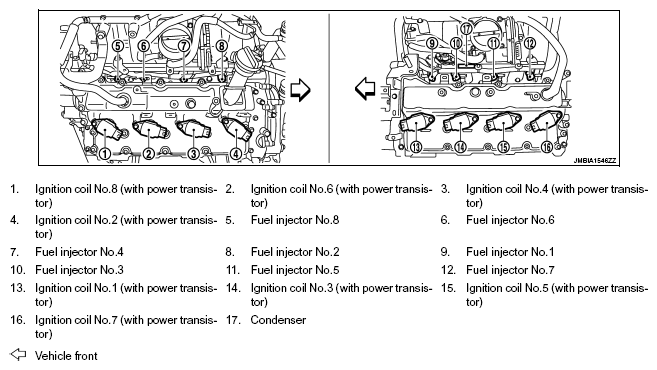

Fig 13: Identifying VVEL System Component Parts Location (12 Of 24)

G05978954

Courtesy of NISSAN MOTOR CO., U.S.A.

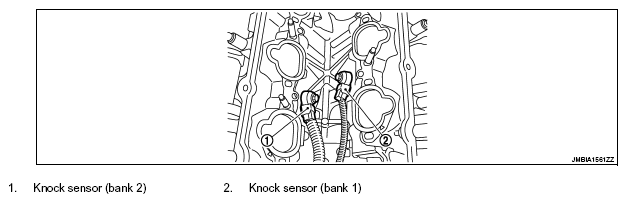

Fig 14: Identifying VVEL System Component Parts Location (13 Of 24)

G05978955

Courtesy of NISSAN MOTOR CO., U.S.A.

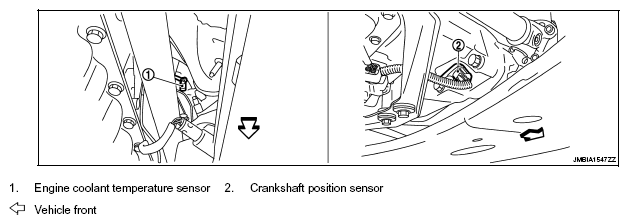

Fig 15: Identifying VVEL System Component Parts Location (14 Of 24)

G05978956

Courtesy of NISSAN MOTOR CO., U.S.A.

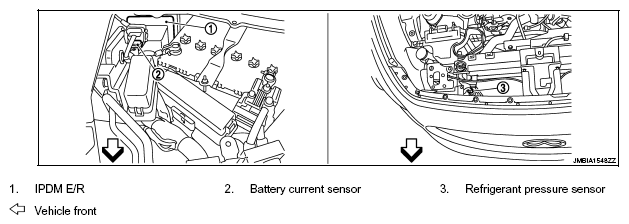

Fig 16: Identifying VVEL System Component Parts Location (15 Of 24)

G05978957

Courtesy of NISSAN MOTOR CO., U.S.A.

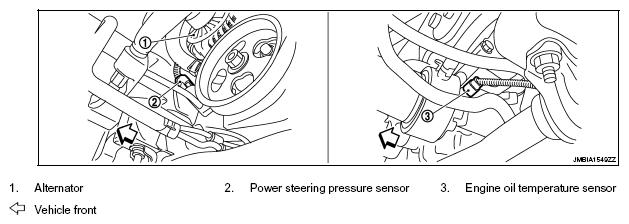

Fig 17: Identifying VVEL System Component Parts Location (16 Of 24)

G05978958

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying VVEL System Component Parts Location (17 Of 24)

G05978959

Courtesy of NISSAN MOTOR CO., U.S.A.

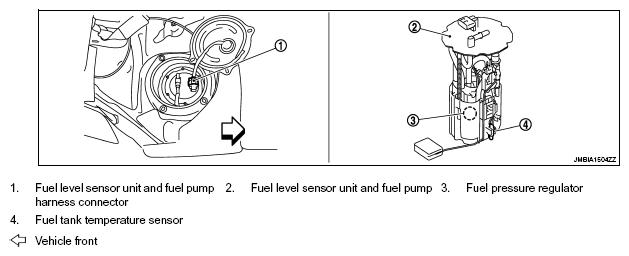

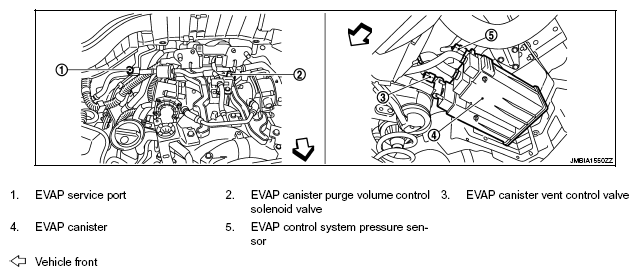

Fig 19: Identifying VVEL System Component Parts Location (18 Of 24)

G05978960

Courtesy of NISSAN MOTOR CO., U.S.A.

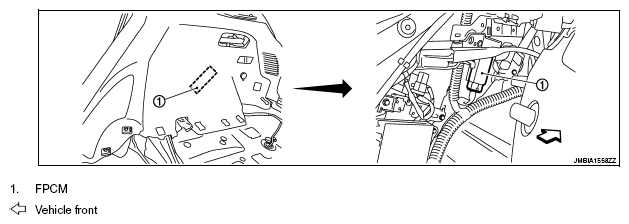

Fig 20: Identifying VVEL System Component Parts Location (19 Of 24)

G05978961

Courtesy of NISSAN MOTOR CO., U.S.A.

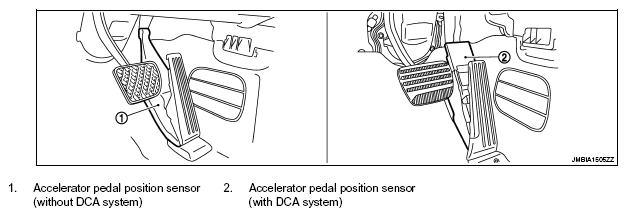

Fig 21: Identifying VVEL System Component Parts Location (20 Of 24)

G05978962

Courtesy of NISSAN MOTOR CO., U.S.A.

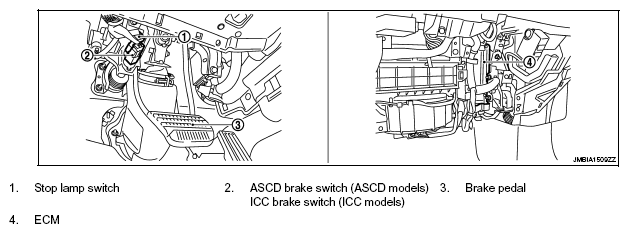

Fig 22: Identifying VVEL System Component Parts Location (21 Of 24)

G05978963

Courtesy of NISSAN MOTOR CO., U.S.A.

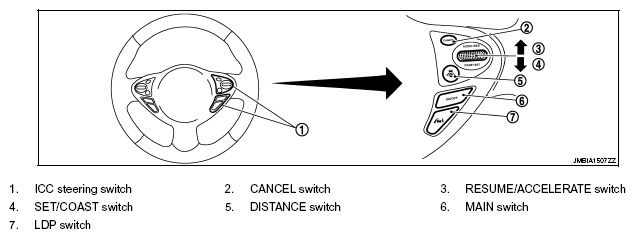

Fig 23: Identifying VVEL System Component Parts Location (22 Of 24)

G05978964

Courtesy of NISSAN MOTOR CO., U.S.A.

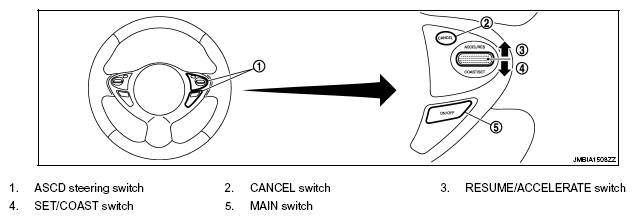

Fig 24: Identifying VVEL System Component Parts Location (23 Of 24)

G05978965

Courtesy of NISSAN MOTOR CO., U.S.A.

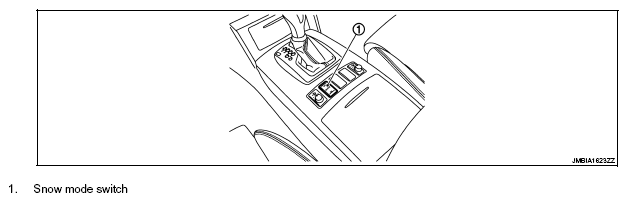

Fig 25: Identifying VVEL System Component Parts Location (24 Of 24)

G05978966

Courtesy of NISSAN MOTOR CO., U.S.A.
