Inspection Procedure

Turn ignition switch OFF.
Connect "GST" to data link connector (1), which is located under LH dash panel near the hood opener handle.

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this section, sample screens are shown.)

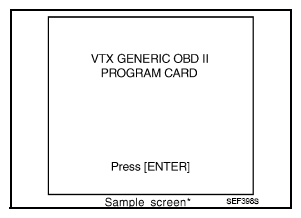

Fig 2: GST Display - Sample Screen
Courtesy of NISSAN NORTH AMERICA, INC.
Perform each diagnostic mode according to each service procedure.
For further information, see the of the tool maker.

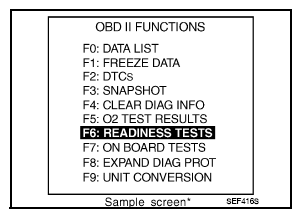

Fig 3: GST Screens Display - Readiness Tests
Courtesy of NISSAN NORTH AMERICA, INC.
