WARNING: This page is about a different car, the 2010 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

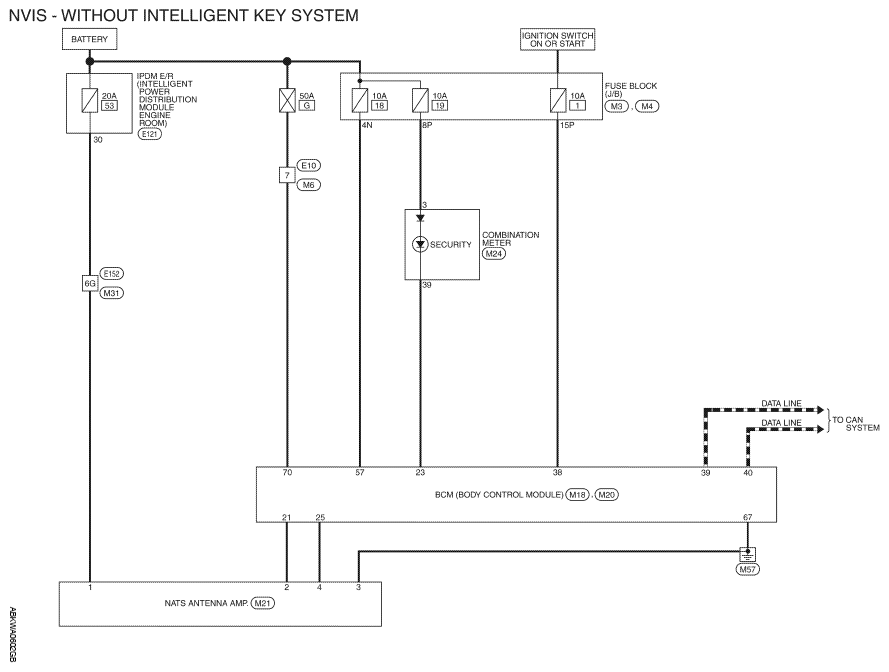

Fig 1: NVIS Without Intelligent Key System - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

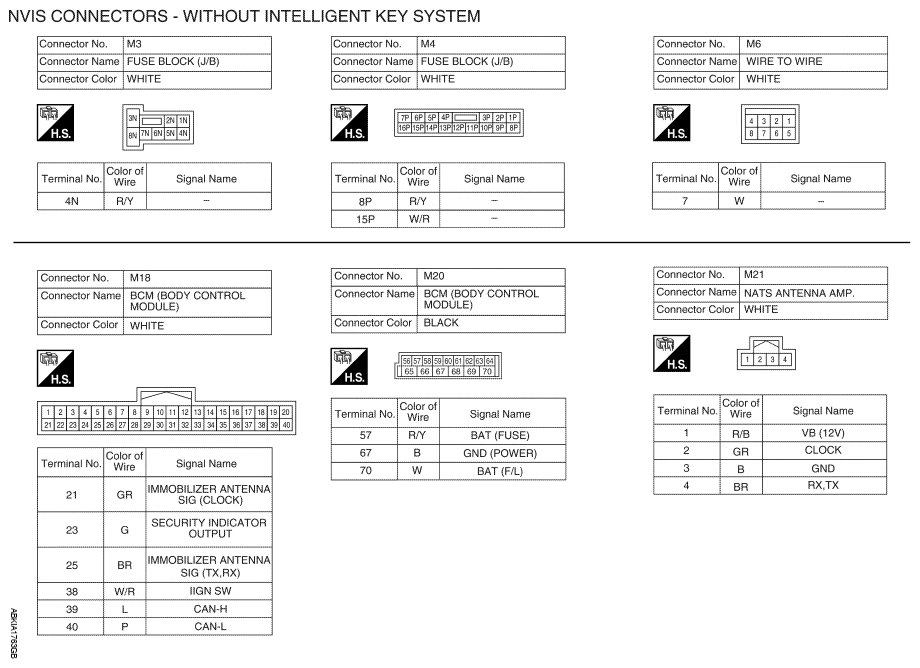

Fig 2: Identifying NVIS Connectors Without Intelligent Key System (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying NVIS Connectors Without Intelligent Key System (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

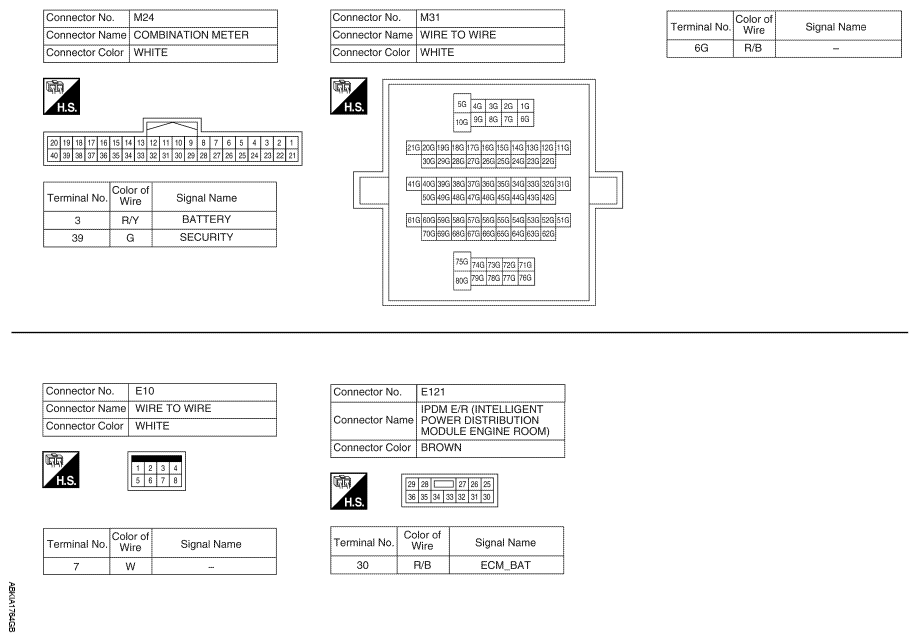

Fig 4: Identifying NVIS Connectors Without Intelligent Key System (3 Of 3)
