Disassembly and Assembly: Notes
WARNING: This page is about a different car, the 2011 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

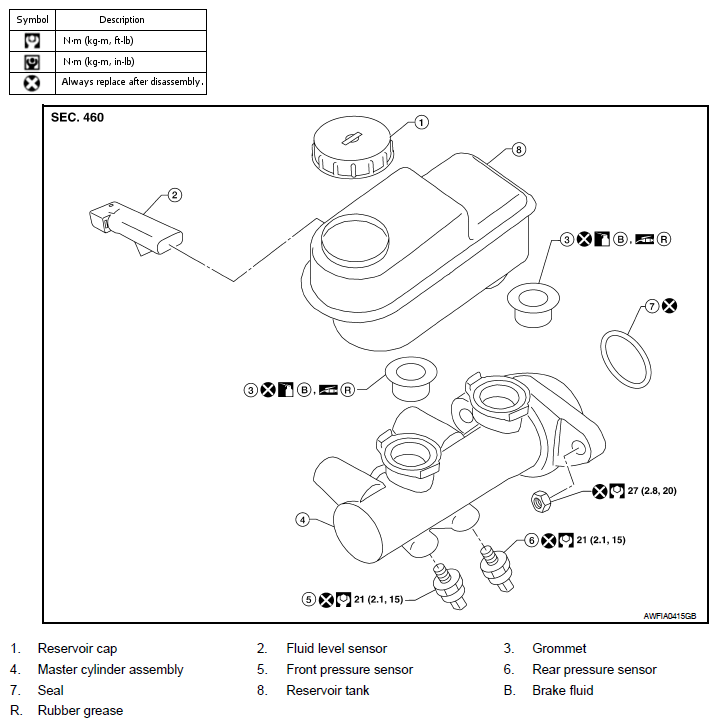

Fig 1: Exploded View Of Brake Master Cylinder With Torque Specifications
