Component Inspection

WARNING: This page is about a different car, the 2011 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CHECK BRAKE FLUID LEVEL SWITCH

Turn ignition switch OFF.
Disconnect brake fluid level switch connector.

Check continuity between brake fluid level switch terminals.

CONTINUITY CHART

Brake fluid level switch	Condition	Continuity
Terminal	Condition	Continuity
1 - 2	When brake fluid reservoir is full.	No
1 - 2	When brake fluid reservoir is empty.	Yes

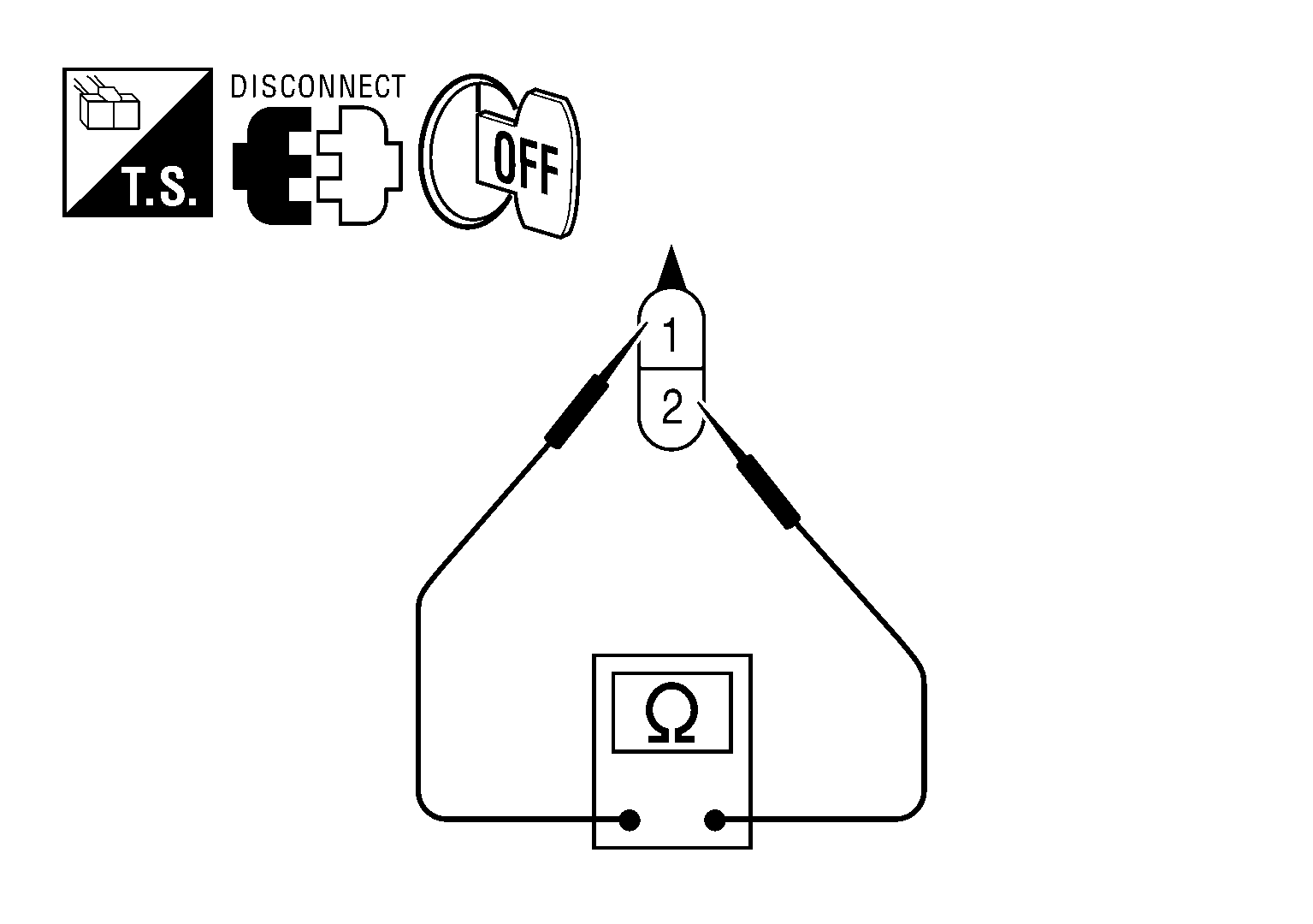

Fig 1: Checking Continuity Between Brake Fluid Level Switch Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Is the inspection result normal?

YES: Inspection End

NO: Replace brake fluid level switch.
