Values On The Diagnosis Tool

WARNING: This page is about a different car, the 2011 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

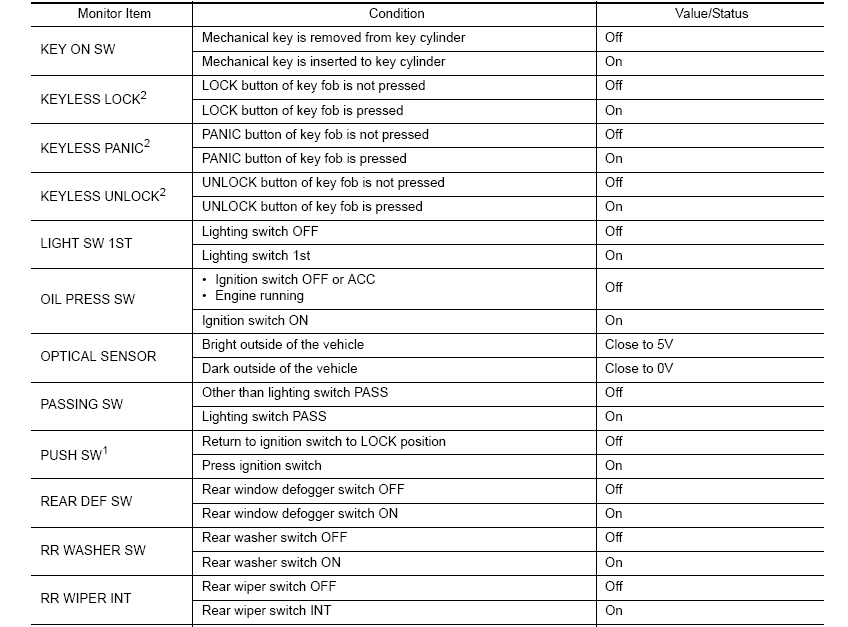

Fig 1: Identifying Diagnosis Tool Value (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

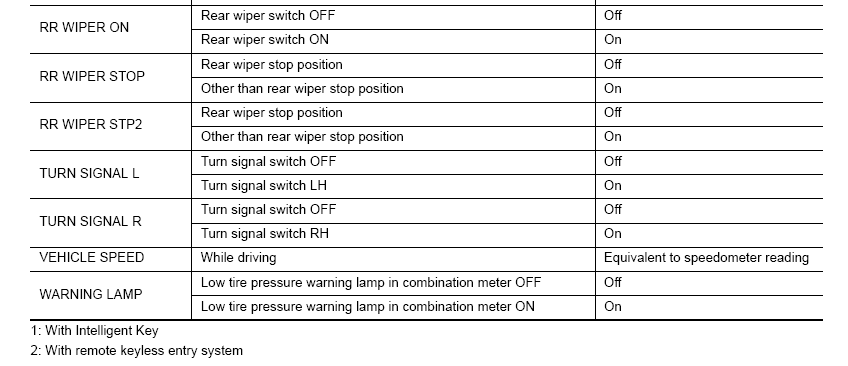

Fig 2: Identifying Diagnosis Tool Value (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

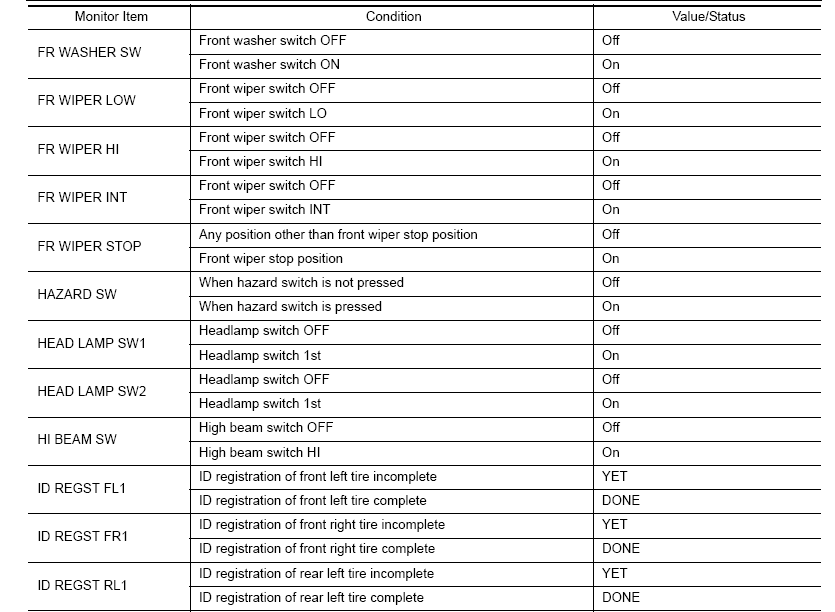

Fig 3: Identifying Diagnosis Tool Value (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

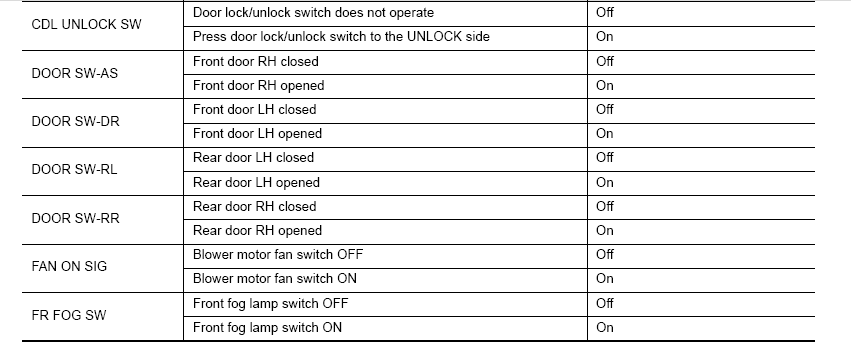

Fig 4: Identifying Diagnosis Tool Value (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

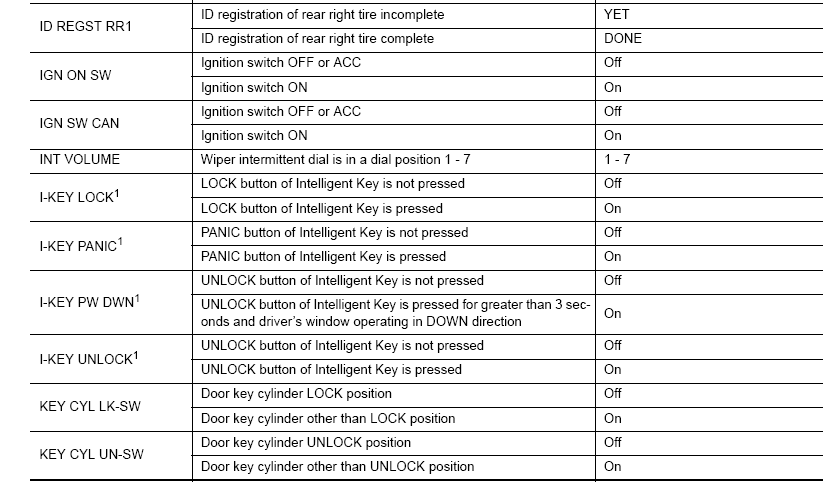

Fig 5: Identifying Diagnosis Tool Value (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

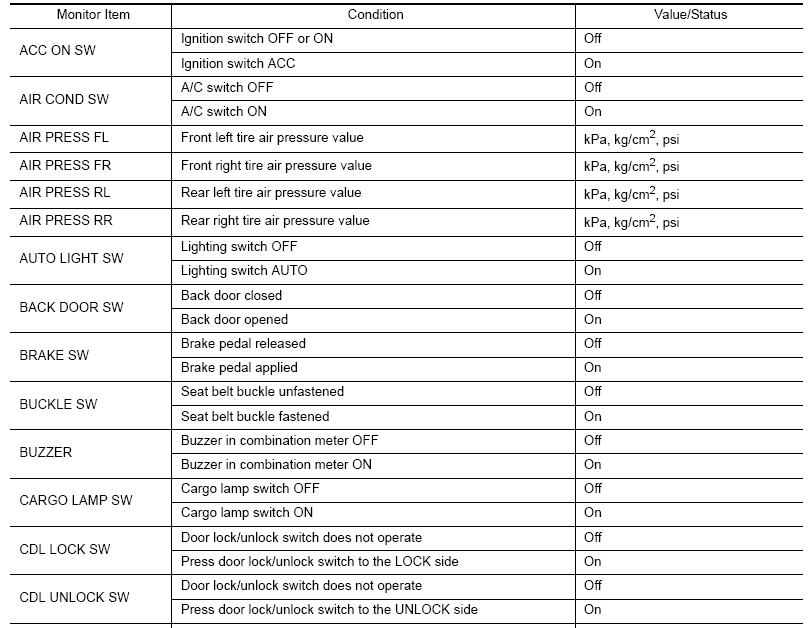

Fig 6: Identifying Diagnosis Tool Value (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

1: With Intelligent Key

2: With remote keyless entry system
