Physical Values - Steering Lock Solenoid

WARNING: This page is about a different car, the 2011 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

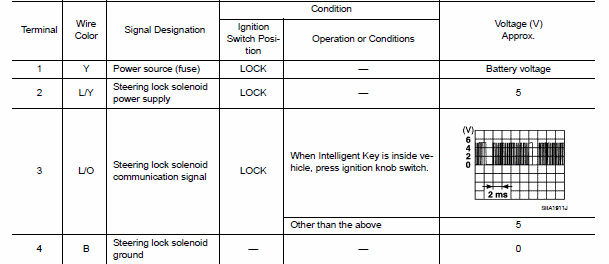

Fig 1: Identifying Steering Lock Solenoid Terminal Layout Chart
G00498523Courtesy of NISSAN MOTOR CO., U.S.A.
