IPDM E/R (Intelligent Power Distribution Module Engine Room): Wiring Diagram

WARNING: This page is about a different car, the 2011 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Intelligent Power Distribution Module Engine Room - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Intelligent Power Distribution Module Engine Room - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

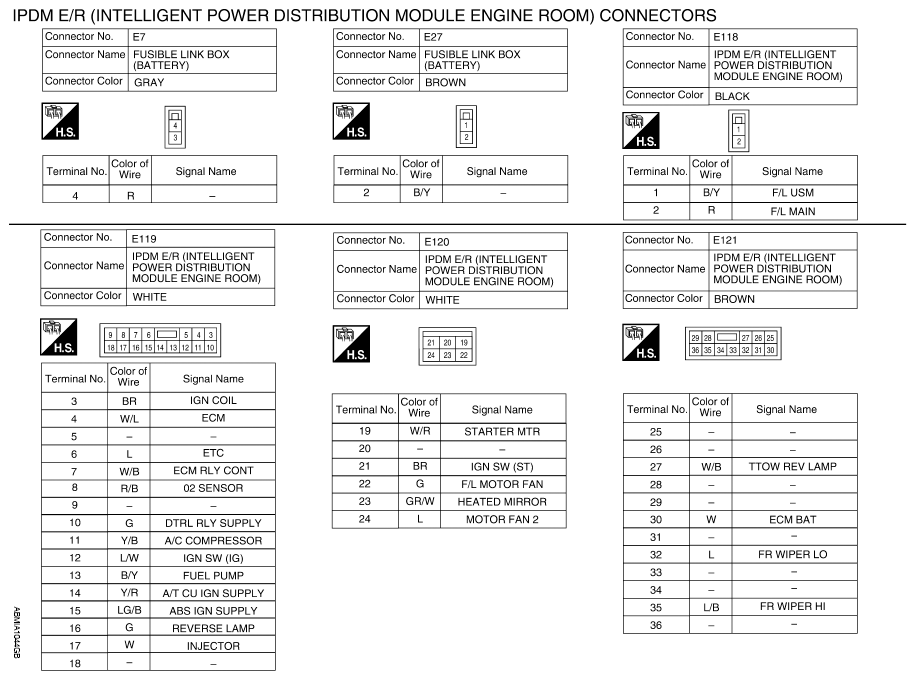

Fig 3: Identifying Power Distribution Module Engine Room Connector (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

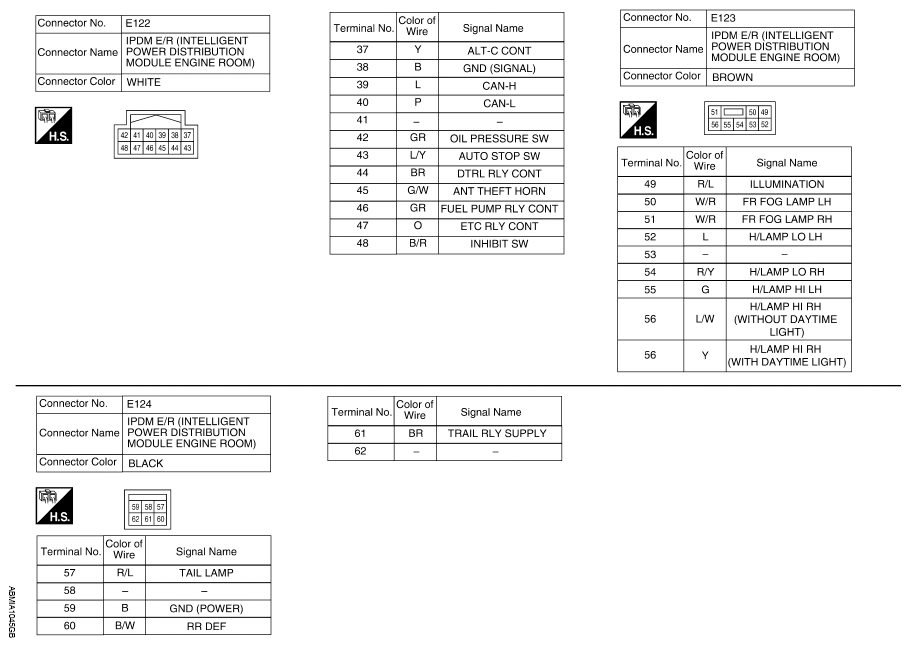

Fig 4: Identifying Power Distribution Module Engine Room Connector (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
