Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery cable from negative terminal.
Drain brake fluid. Refer to "DRAINING ".
Remove bracket A.
Disconnect ABS actuator and electric unit (control unit) harness connector (1), follow the procedure described below.
1. Push the pawl (A).
2. Move the lever (B) in the direction (C) until locked.
3. Disconnect ABS actuator and electric unit (control unit) harness connector.
Loosen flare nut of brake tube using a flare nut wrench, and then remove brake tube from ABS actuator and electric unit (control unit). Refer to "FRONT : EXPLODED VIEW ".
Remove ABS actuator and electric unit (control unit) and bracket B.

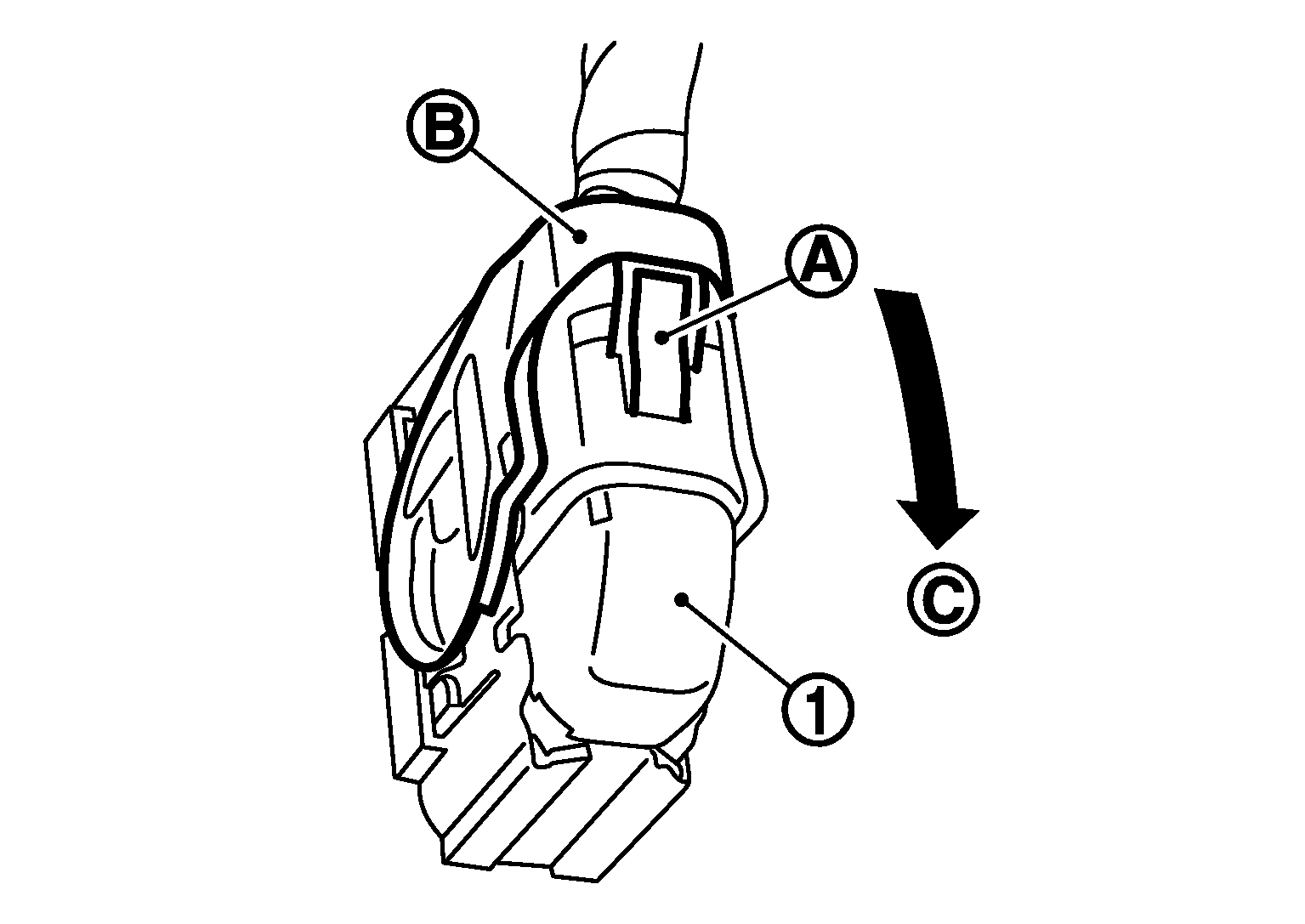

Fig 1: Removing Pawl Lever
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Never remove and never install ABS actuator and electric unit (control unit) by holding harness connector.
- Be careful not to drop ABS actuator and electric unit (control unit) and apply excessive impact to it.
Remove bracket B and bushing from ABS actuator and electric unit (control unit).
