System Diagram

WARNING: This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.

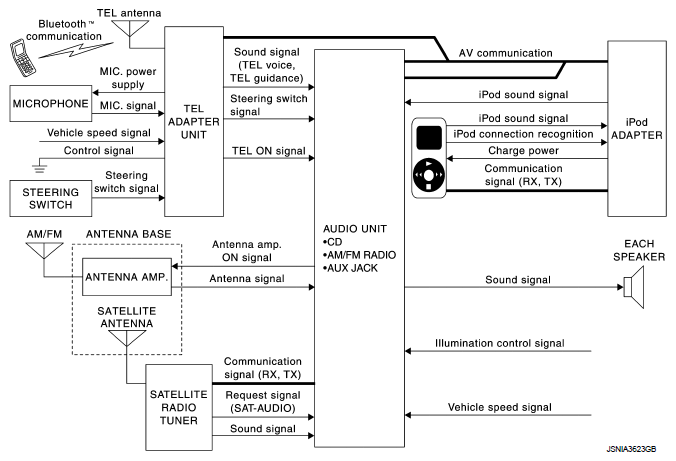

Fig 1: Vehicle Audio System Diagram Without Navigation

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: An antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.

Fig 2: Radio And Satellite Radio Antenna System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
