Unique Switch
WARNING: This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.

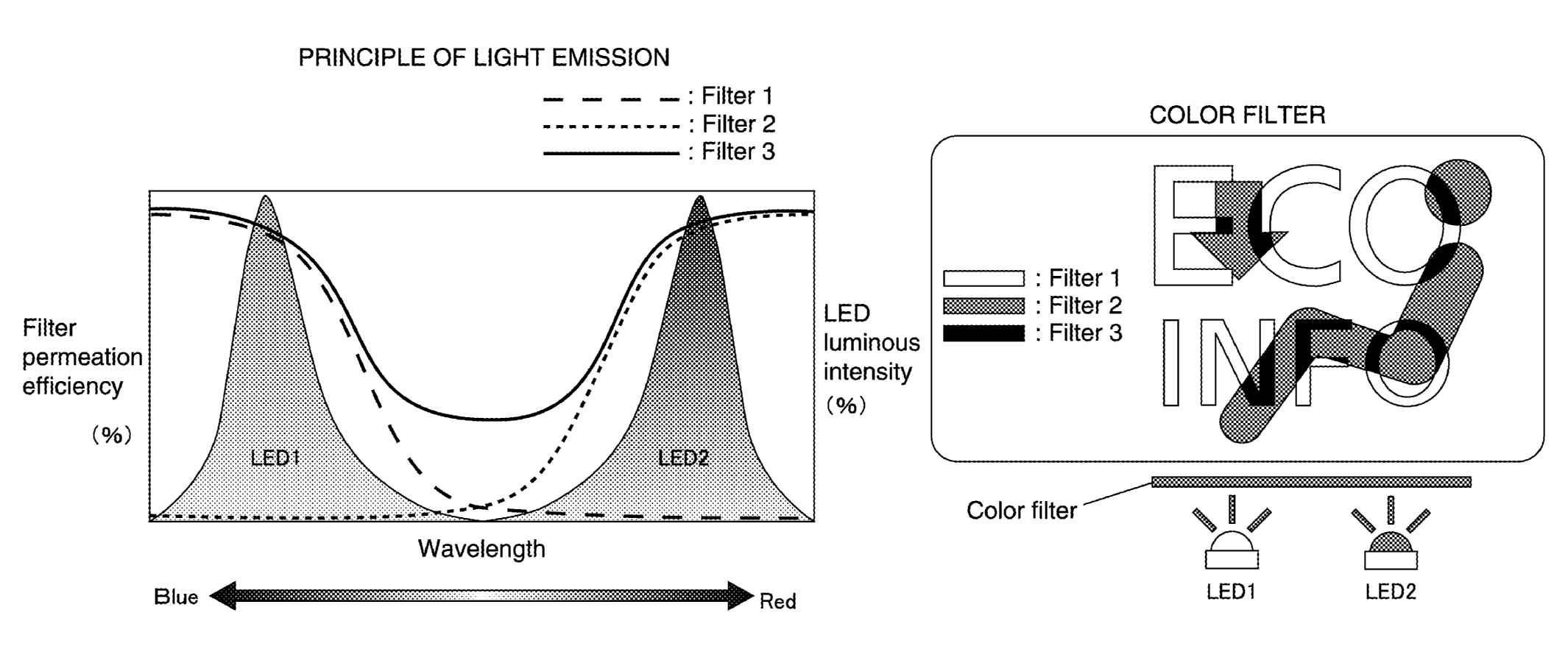

The switch integrates 2 types of LEDs*, filters that pass or absorb specified wavelengths (filter 1, filter 2), and filters adapted to both display colors (filter 3), enabling 2 different symbols to be displayed at a same position by LED changeover.
*: Abbreviation of light emitting diode. It is a semiconductor device that lights up when electric current is applied.
Operation description of unique switch
In drive mode
- LED1 lights up, the light from LED1 passes filter 1 and filter 3, and "ECO INFO" is displayed.
In air conditioner mode
- LED2 lights up, the light from LED2 passes filter 2 and filter 3, and " FLOOR " is displayed.
