NATS Antenna Amp: Removal

WARNING: This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.
  2. Remove the steering column covers. Refer to "EXPLODED VIEW ".
  3. Remove the bolt, disconnect the electrical connector, and remove the NATS antenna amp (1).

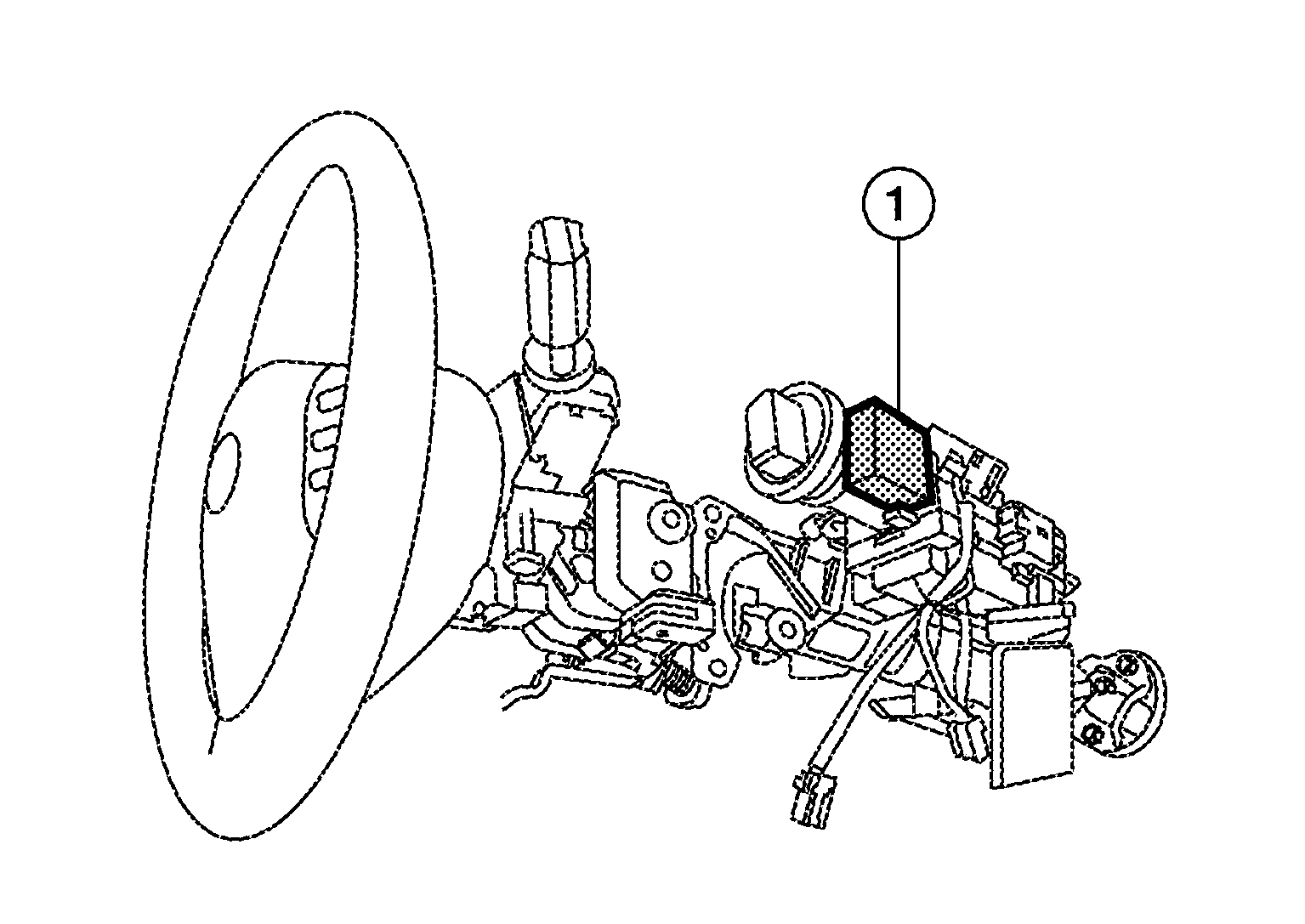

    Fig 1: Identifying NATS Antenna Amp
    G05941840Courtesy of NISSAN MOTOR CO., U.S.A.
