Component Parts Location
WARNING:
This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

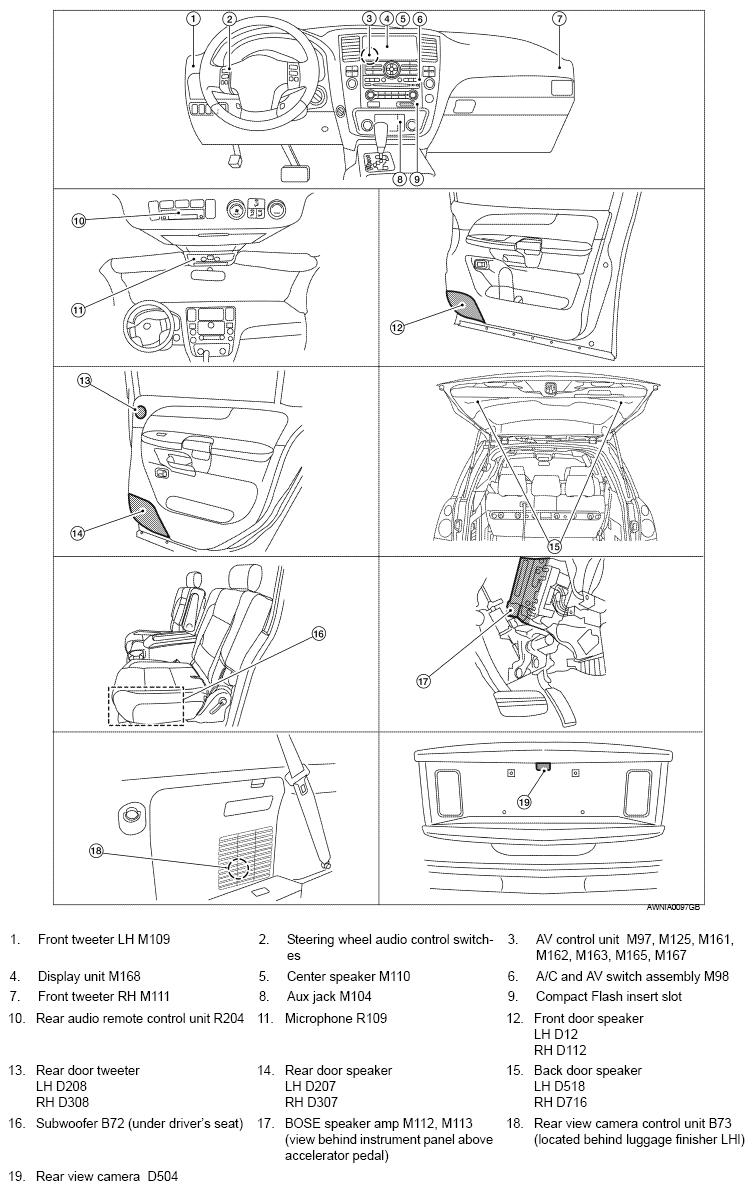

Fig 1: Identifying Audio System Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
