Removal and Installation: Notes

WARNING: This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

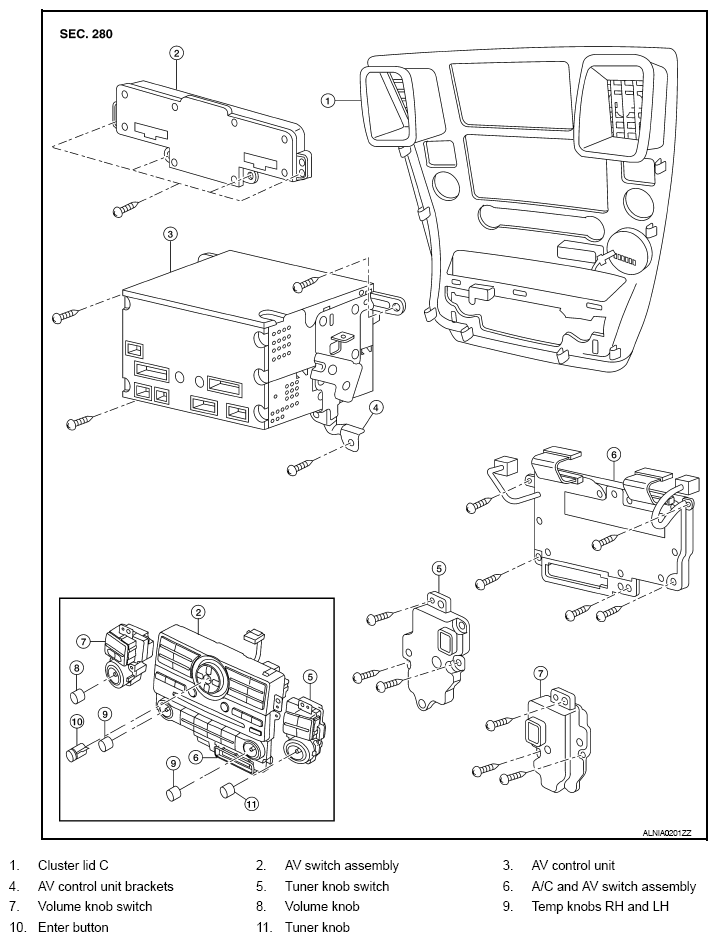

Fig 1: Identifying AV Control Unit Components

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Only remove and replace the A/C or AV switch assembly knobs if damaged or missing. The knobs must not be removed from switches when removing and installing the A/C or AV switch assembly to prevent damage to the switch assembly.
