Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use a suitable tool to prevent damage to the tweeter speaker grille trim and the instrument panel.
  1. Remove front tweeter speaker grille.
  2. Remove the front tweeter clips (C103) (A).
  3. Disconnect the front tweeter connector.
  4. Remove the front tweeter (1).

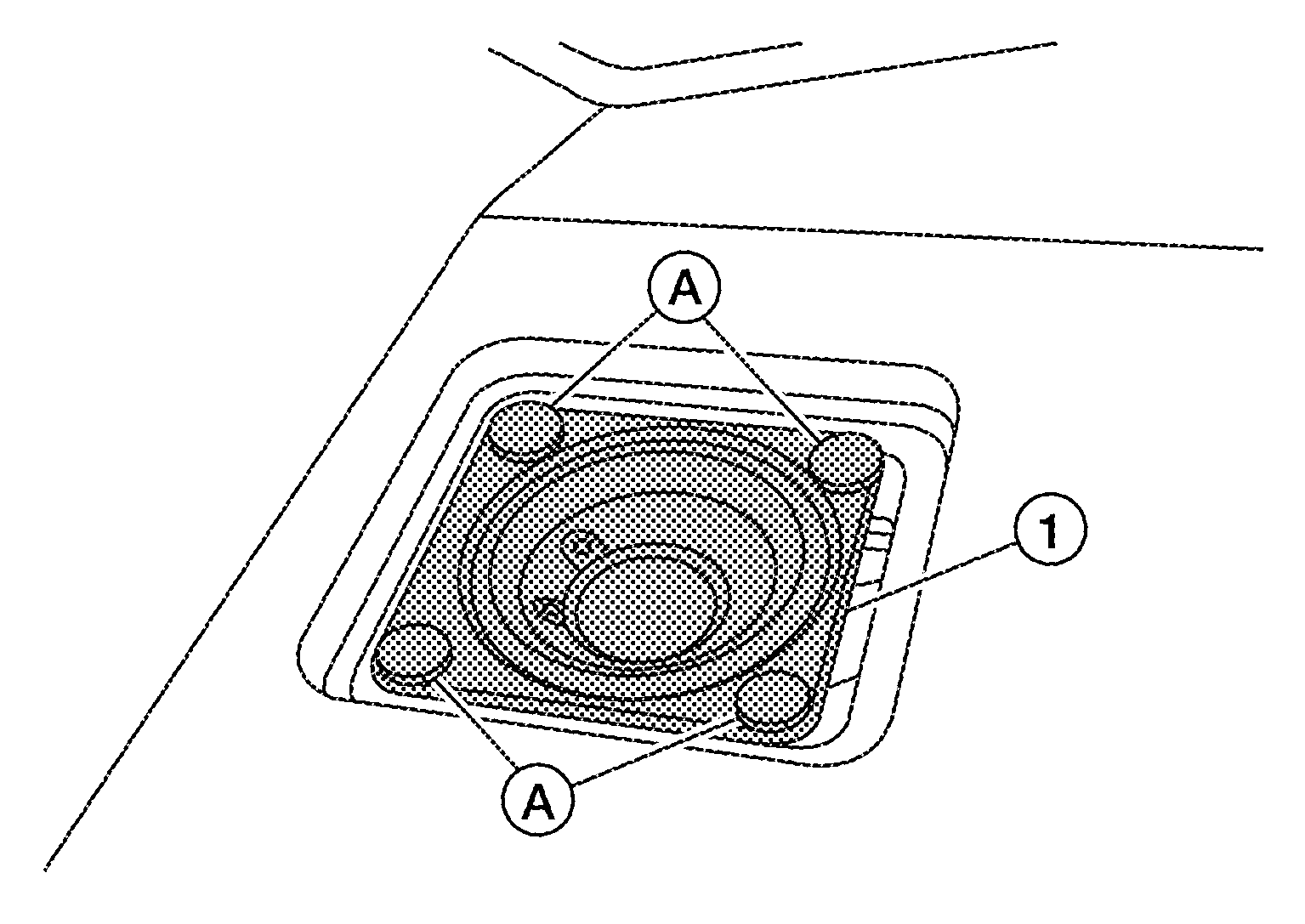

    Fig 1: Identifying Front Tweeter And Front Tweeter Clips (C103)
    G05383428Courtesy of NISSAN MOTOR CO., U.S.A.
