Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Remove the back door lower finisher. Refer to "REMOVAL AND INSTALLATION ".
Disconnect the rear view camera connector (A).
Remove the back door handle. Refer to "DOOR LOCK ASSEMBLY ".

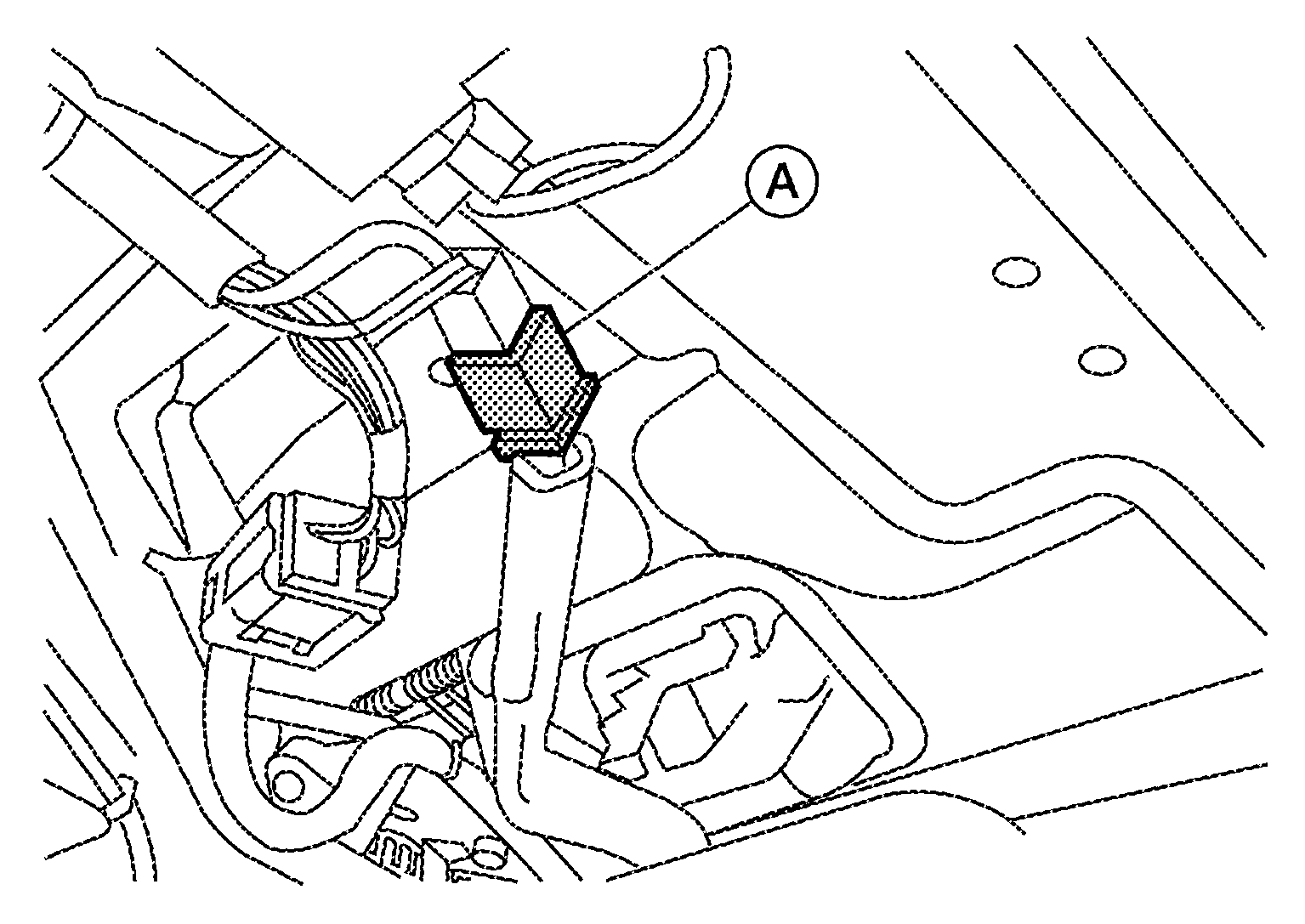

Fig 1: Identifying Rear View Camera Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the rear view camera screw (2), then remove the rear view camera (1).

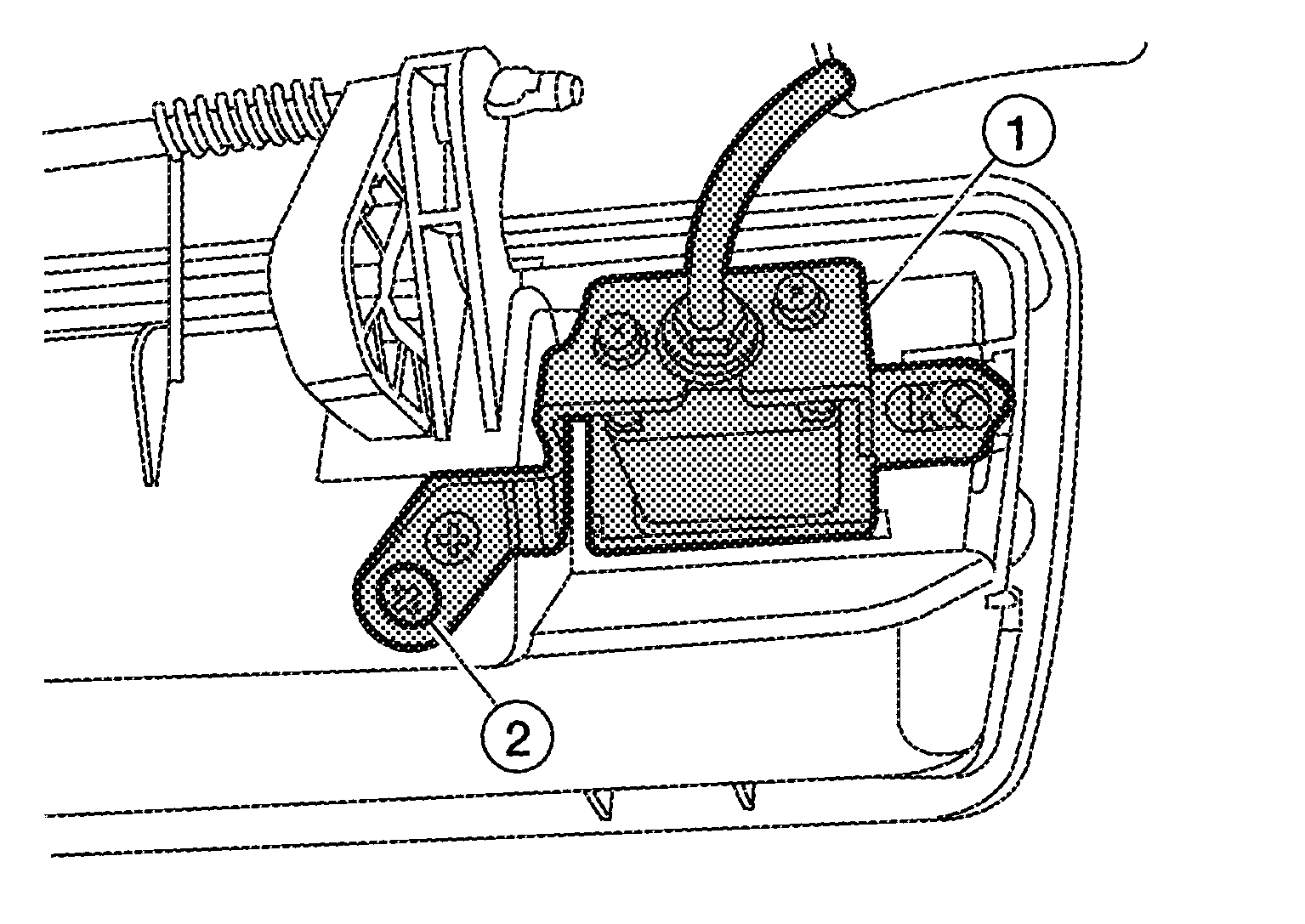

Fig 2: Identifying Rear View Camera Screw And Rear View Camera
Courtesy of NISSAN MOTOR CO., U.S.A.
