REAR VIEW MONITOR GUIDING LINE ADJUSTMENT : Special Repair Requirement

WARNING: This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Create a correction line to modify the screen.
Draw lines on the rearward of the vehicle passing through the following points: 200 mm (7.87 inch) from both sides of the vehicle, and

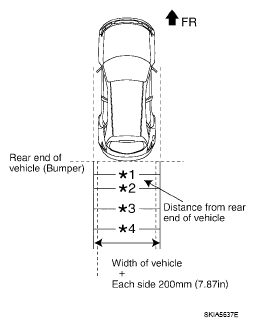

Fig 1: Identifying Side Distance Guideline Correction
Courtesy of NISSAN MOTOR CO., U.S.A.
- *1: 0.5 m (1.5 feet)
- *2: 1 m (3 feet)
- *3: 2 m (7 feet)
- *4: 3 m (10 feet)
  and from the rear end of the bumper
With the ignition switch OFF, connect CONSULT-III, then turn ignition switch ON. Select "REARVIEW CAMERA".
CAUTION: Stop engine for safety when correcting side distance guideline.
Shift the A/T selector lever to R position.

Fig 2: Identifying A/T Selector Lever To R Position
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SELCT GUIDELINE PATTERN" under "WORK SUPPORT" menu.
Touch "UP" or "DOWN", and select the guide line, "PATTERN NO. 0" or "PATTERN NO. 1", which is the closest to the corrected line.
Touch "SAVE", and confirm the guide line.
Touch "END".
Touch "ADJ GUIDELINE POSITION" under the "WORK SUPPORT" menu.
Adjust the guide line touching "X UP", "X DOWN", "Y UP" or "Y DOWN" so that the corrected line can fit the guide line.
Touch "SAVE", and confirm the guide line.
Touch "END" to finish correcting.
