Av Control Unit: Wiring Diagram

WARNING: This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

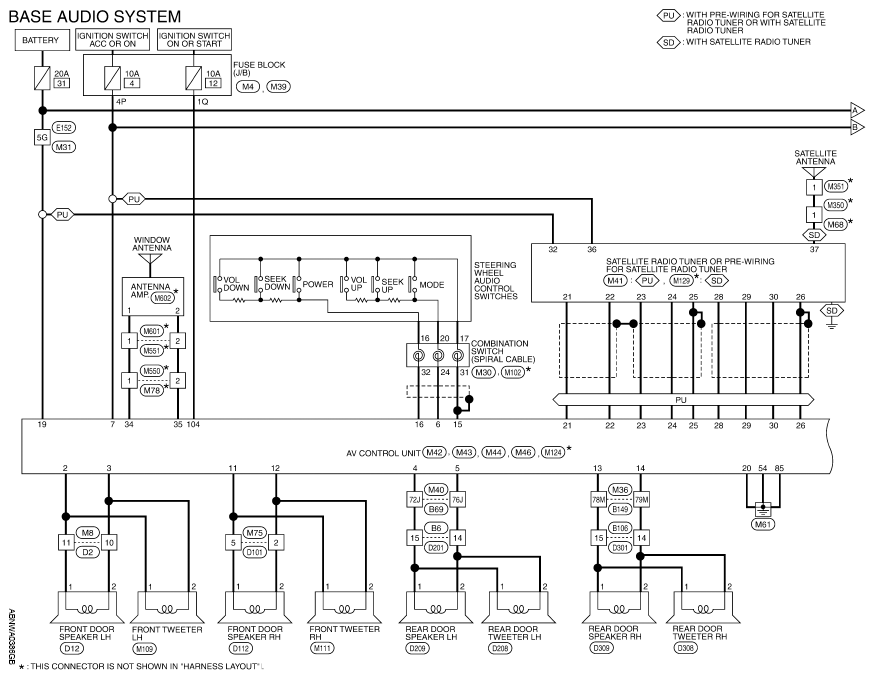

Fig 1: AV Control Unit - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

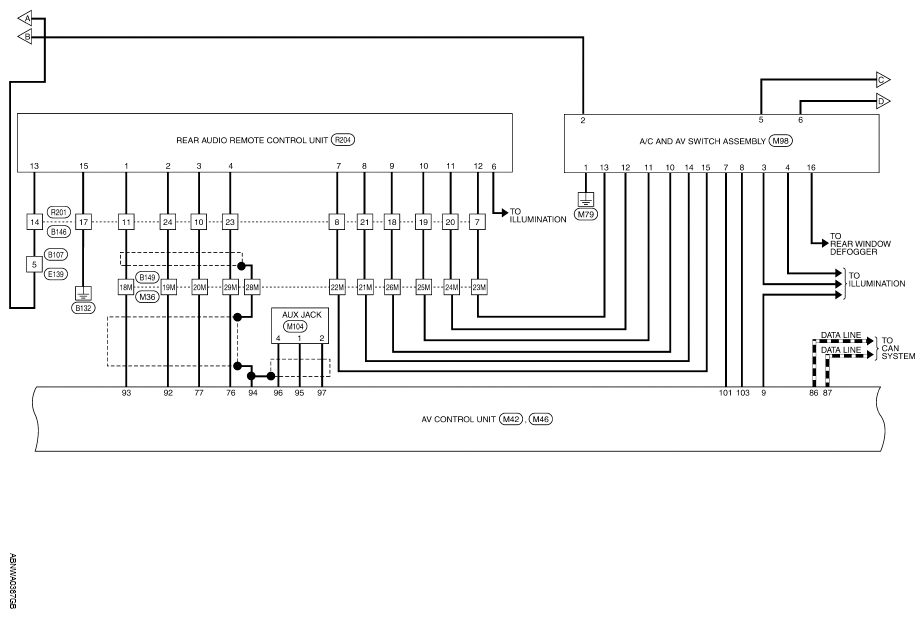

Fig 2: AV Control Unit - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

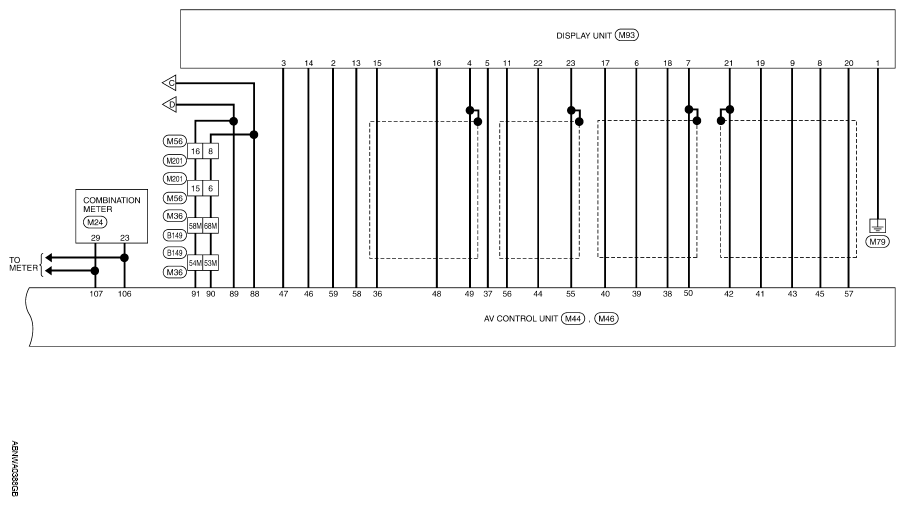

Fig 3: AV Control Unit - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

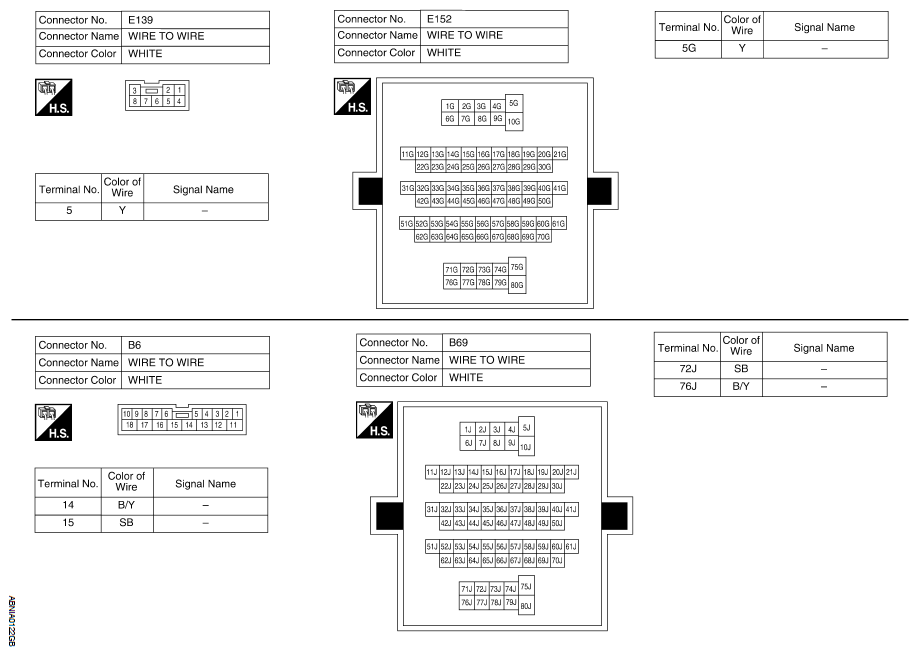

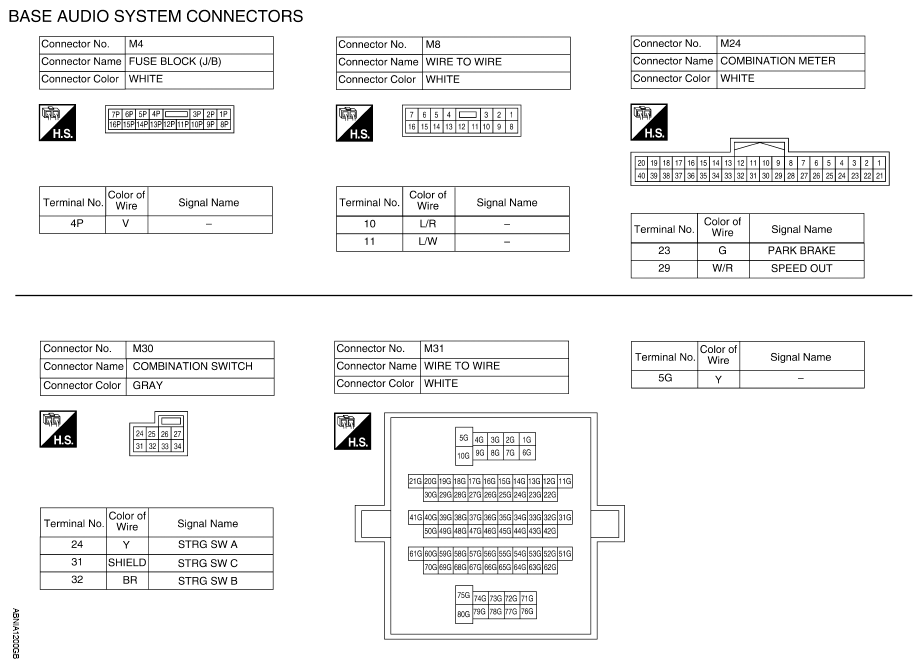

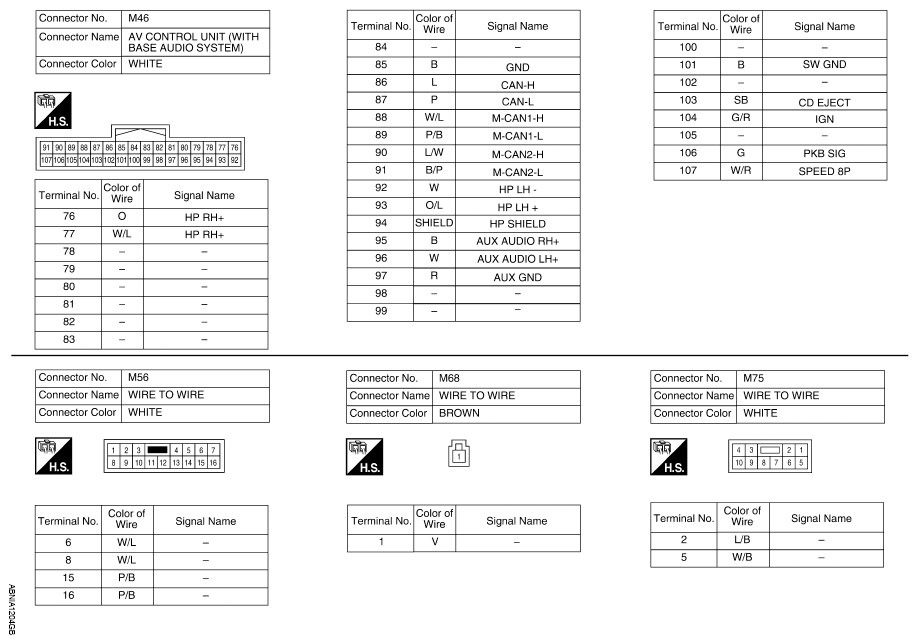

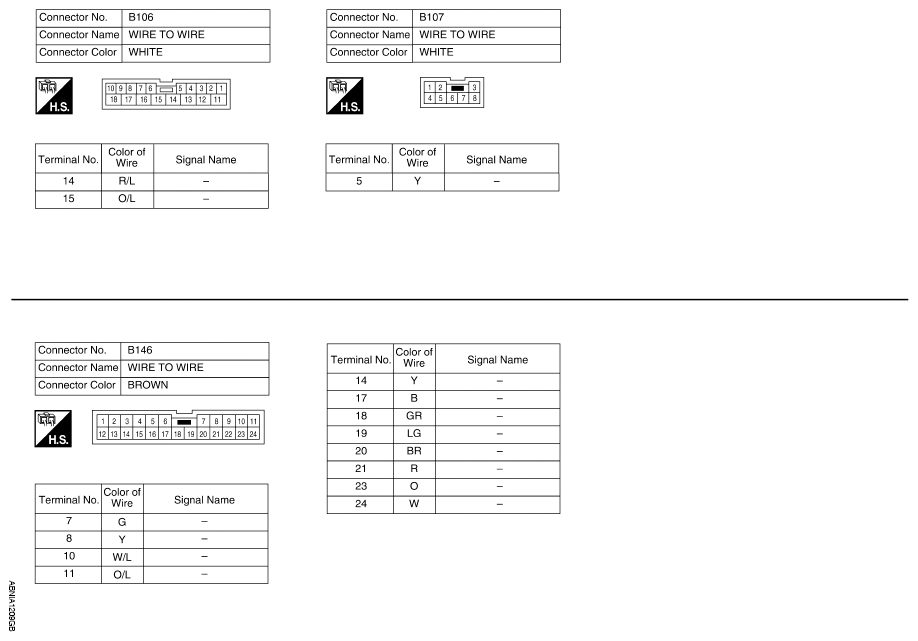

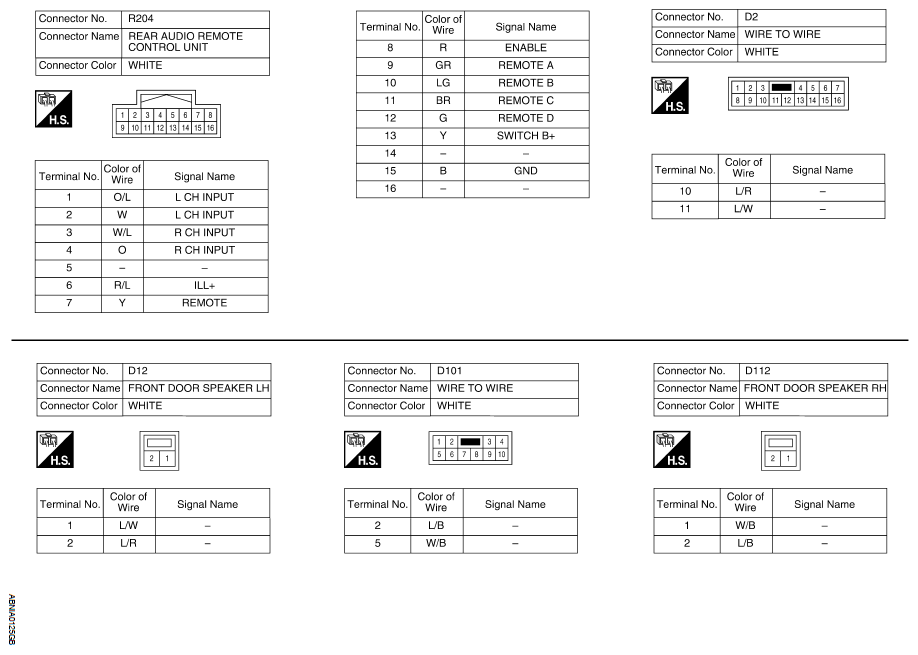

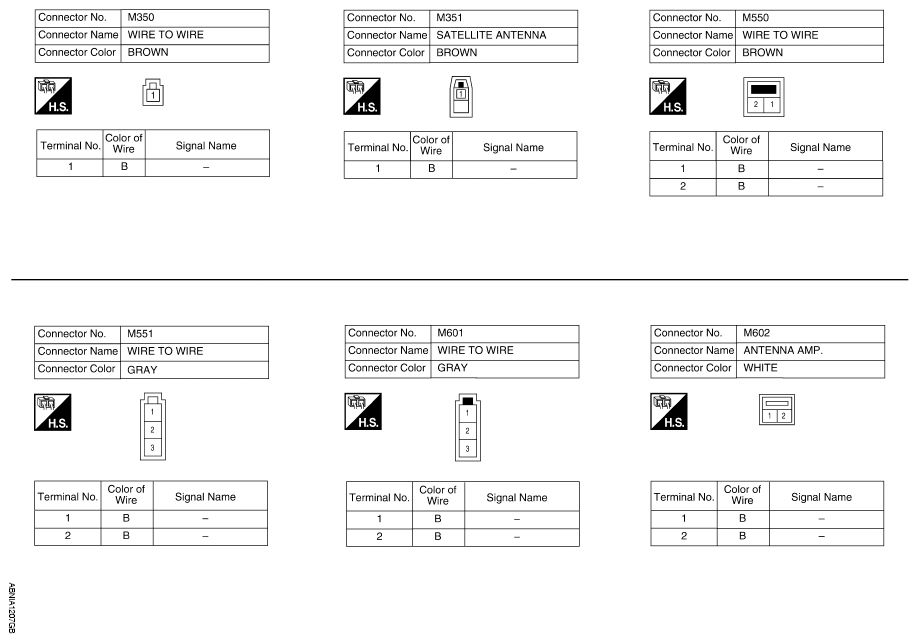

Fig 4: AV Control Unit Connector Chart (1 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

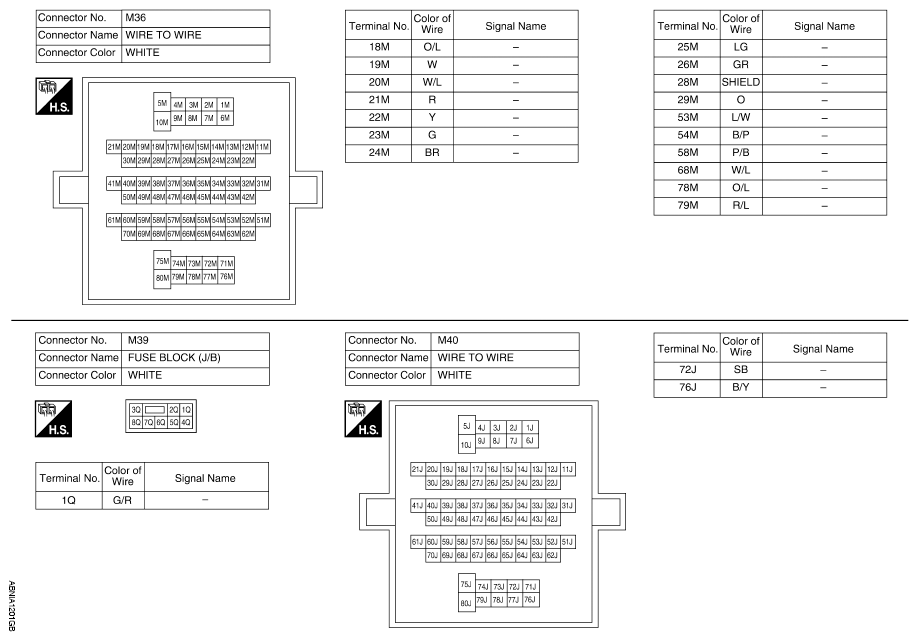

Fig 5: AV Control Unit Connector Chart (2 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

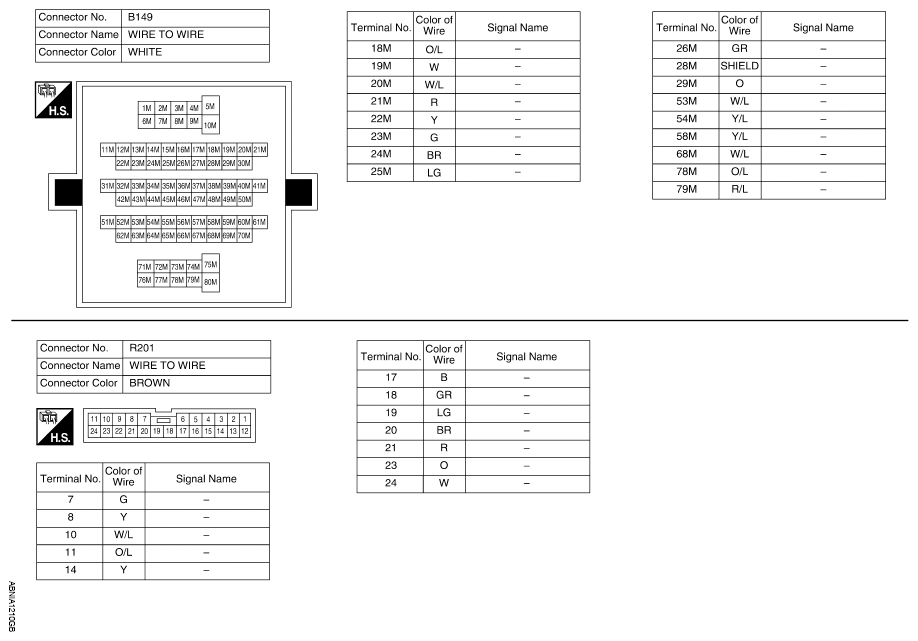

Fig 6: AV Control Unit Connector Chart (3 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

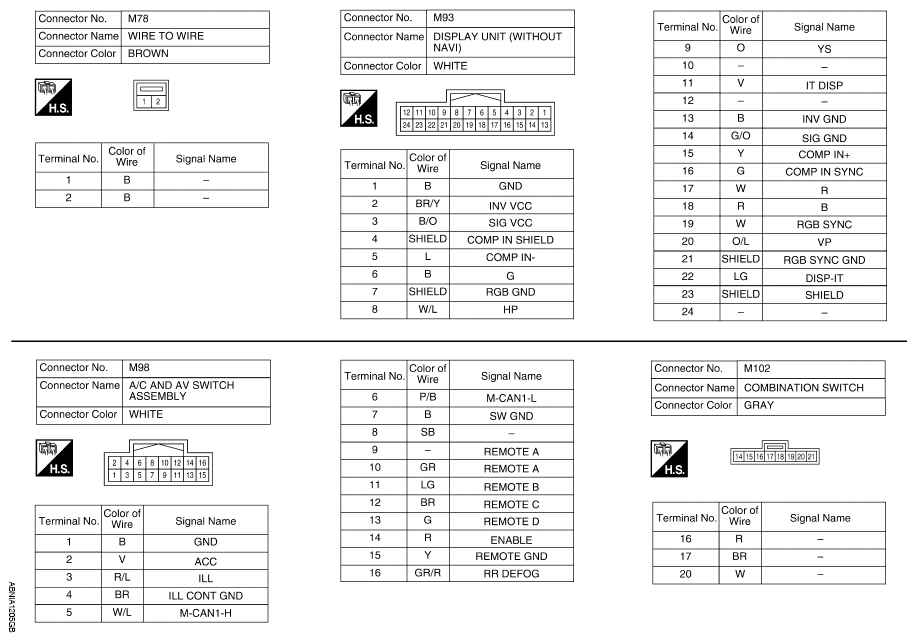

Fig 7: AV Control Unit Connector Chart (4 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

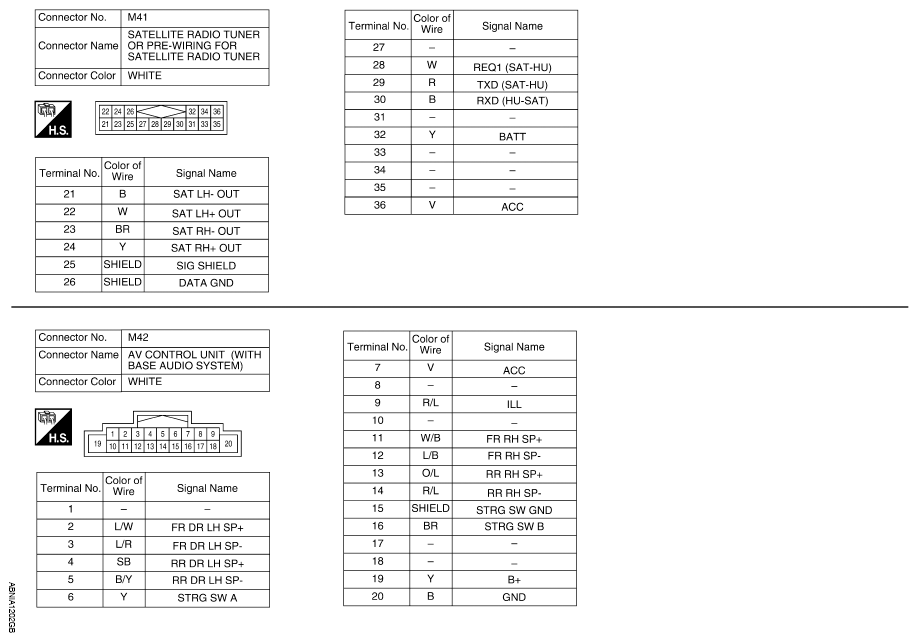

Fig 8: AV Control Unit Connector Chart (5 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

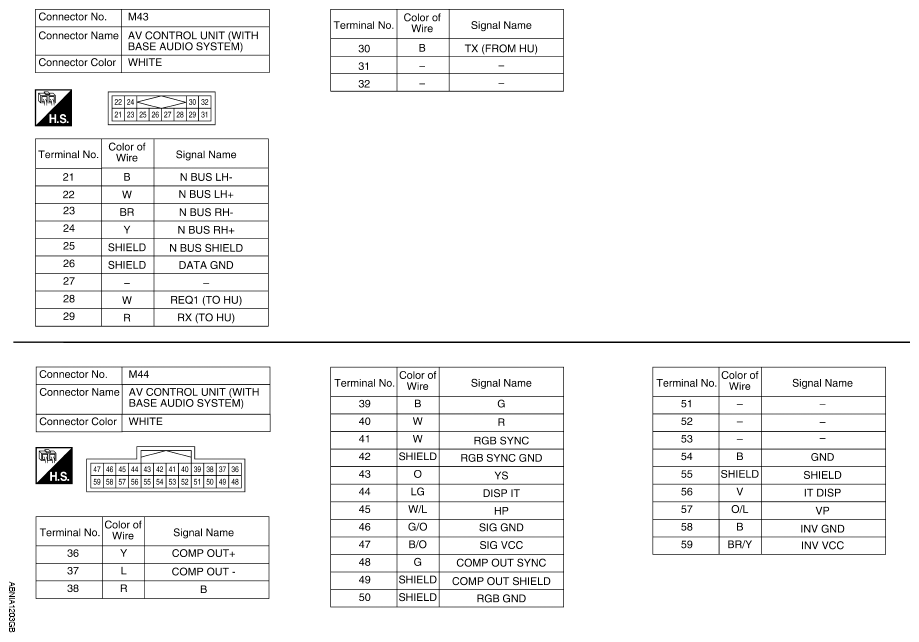

Fig 9: AV Control Unit Connector Chart (6 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: AV Control Unit Connector Chart (7 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: AV Control Unit Connector Chart (8 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: AV Control Unit Connector Chart (9 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: AV Control Unit Connector Chart (10 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: AV Control Unit Connector Chart (11 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: AV Control Unit Connector Chart (12 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: AV Control Unit Connector Chart (13 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.
