Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the display unit screws (A), pull out the display unit (1) from instrument panel, to disconnect the display unit connectors.

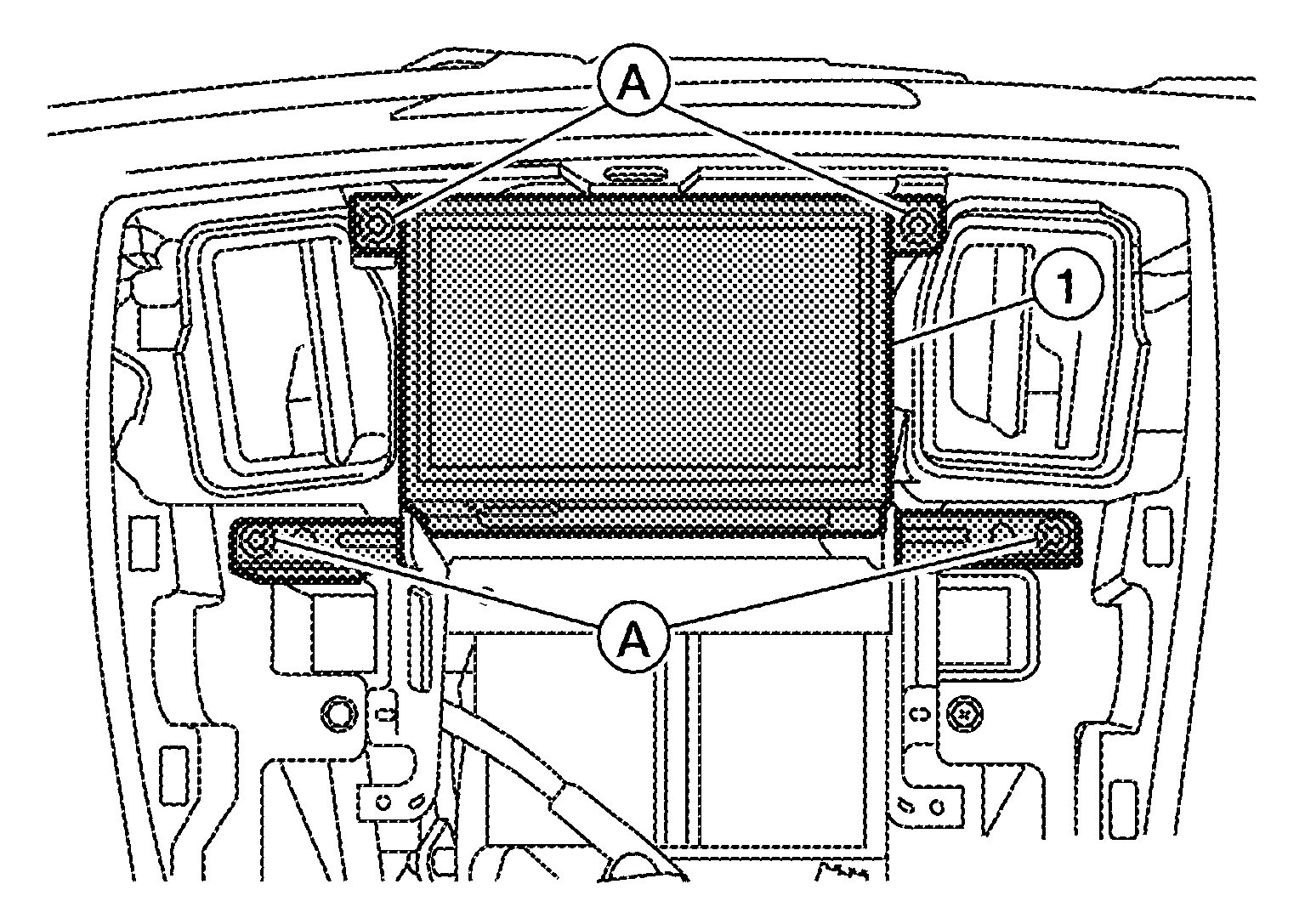

    Fig 1: Identifying Display Unit Screws And Display Unit
    G05383426Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the A/C auto amp. screws (A) and the A/C auto amp. (1).
    • Display unit (2)
  4. Remove the display unit bracket screws and the display unit brackets.

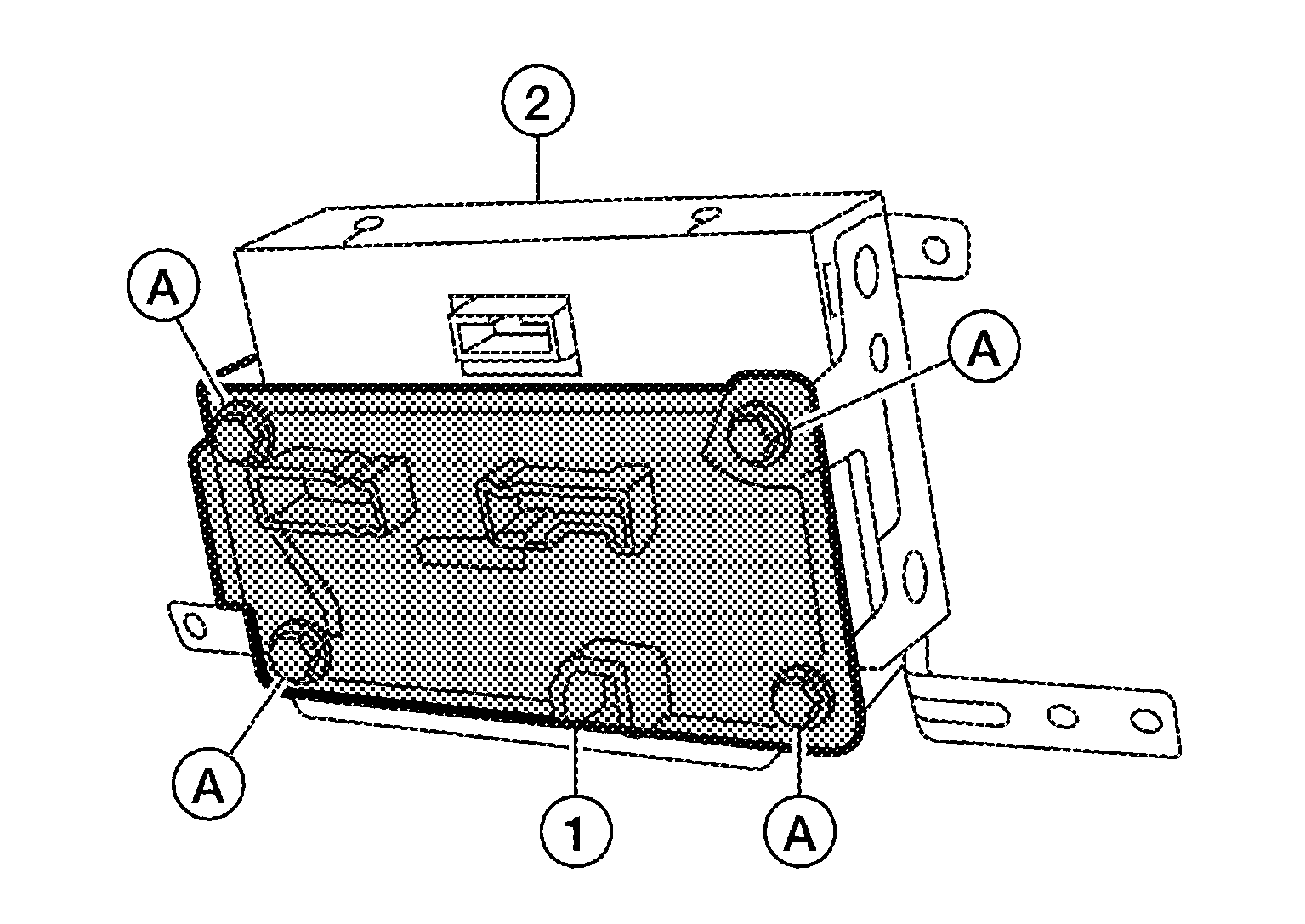

    Fig 2: Identifying A/C Auto Amp. Screws And A/C Auto Amp
    G05381140Courtesy of NISSAN MOTOR CO., U.S.A.
