Component Parts Location

Fig 1: Engine Control System Parts Location

G06614875

Courtesy of NISSAN NORTH AMERICA, INC.

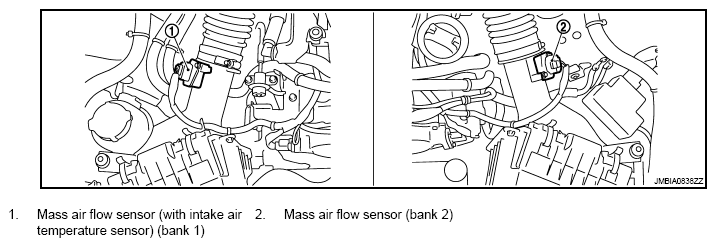

Fig 2: Identifying Mass Air Flow Sensor

G06614876

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Electric Throttle Control Actuator

G06614877

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Cooling Fan Control Module, Cooling Fan Relay And Cooling Fan Motor

G06614878

Courtesy of NISSAN NORTH AMERICA, INC.

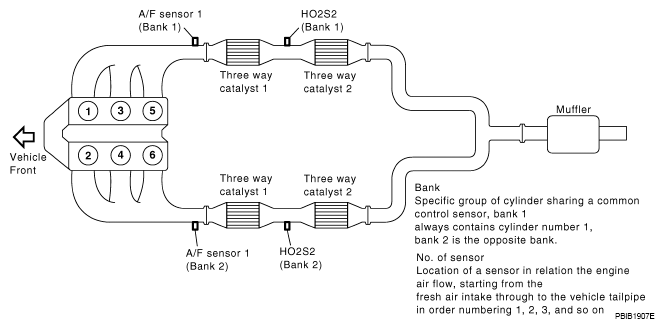

Fig 5: Identifying Sensors Location

G06614879

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor 1 Connector

G06614880

Courtesy of NISSAN NORTH AMERICA, INC.

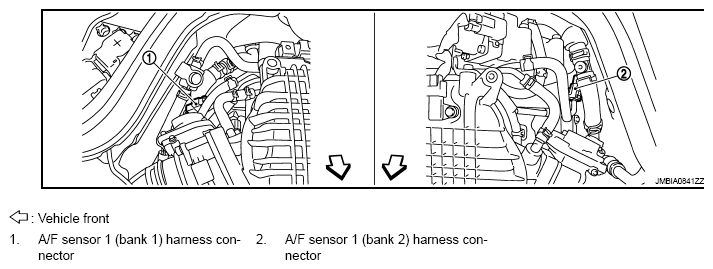

Fig 7: Identifying A/F Sensor 1 Connector

G06614881

Courtesy of NISSAN NORTH AMERICA, INC.

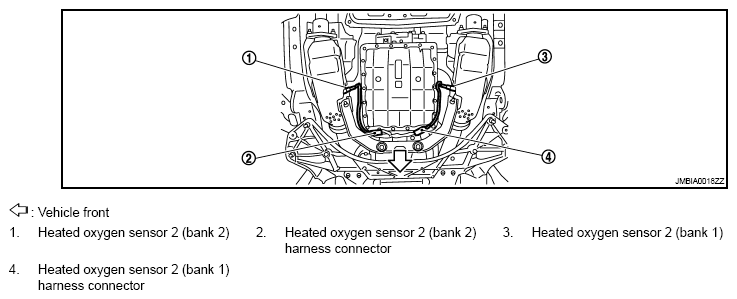

Fig 8: Identifying Heated Oxygen Sensor 2 Connector

G06614882

Courtesy of NISSAN NORTH AMERICA, INC.

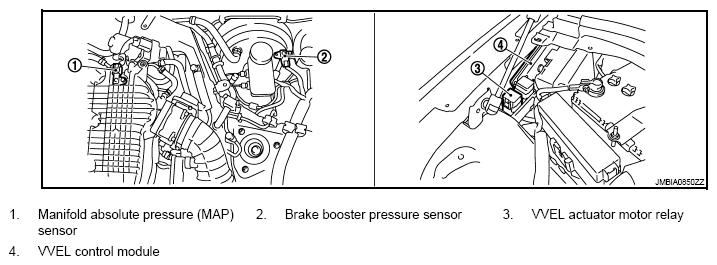

Fig 9: Identifying Manifold Absolute Pressure Sensor, Brake Booster Pressure Sensor, VVEL Actuator Motor Relay And VVEL Control Module

G06614883

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Control Shaft Position Sensor And VVEL Actuator Motor

G06614884

Courtesy of NISSAN NORTH AMERICA, INC.

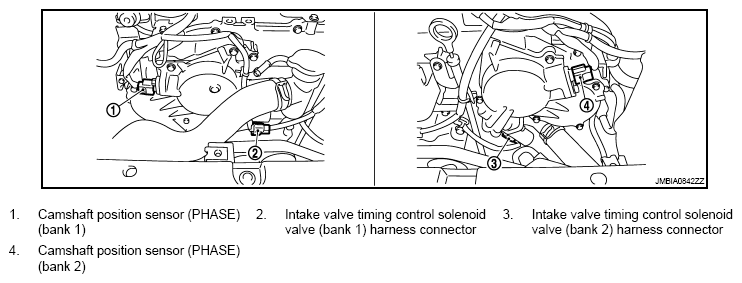

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Connector

G06614885

Courtesy of NISSAN NORTH AMERICA, INC.

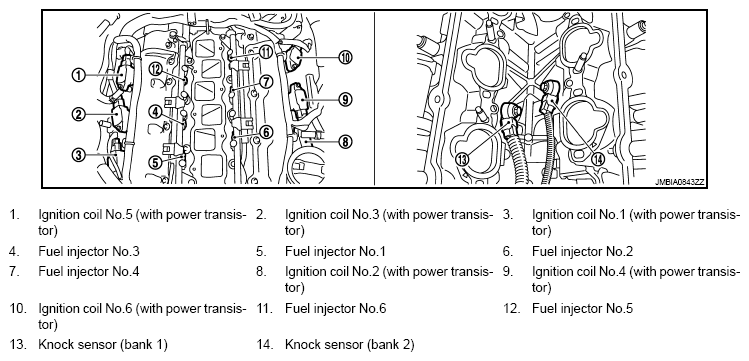

Fig 12: Identifying Fuel Injectors And Ignition Coils

G06614886

Courtesy of NISSAN NORTH AMERICA, INC.

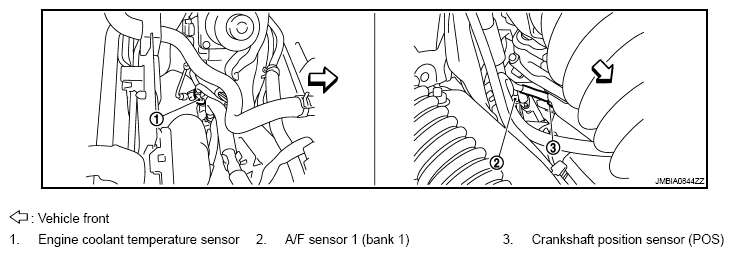

Fig 13: Identifying Engine Coolant Temperature Sensor, A/F Sensor 1 (Bank 1) And Crankshaft Position Sensor (POS)

G06614887

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor

G06614888

Courtesy of NISSAN NORTH AMERICA, INC.

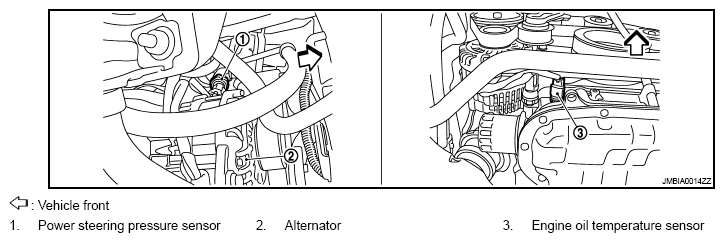

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor

G06614889

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying EVAP Canister, EVAP Canister Vent Control Valve And EVAP Canister Purge Volume Control Solenoid Valve

G06614890

Courtesy of NISSAN NORTH AMERICA, INC.

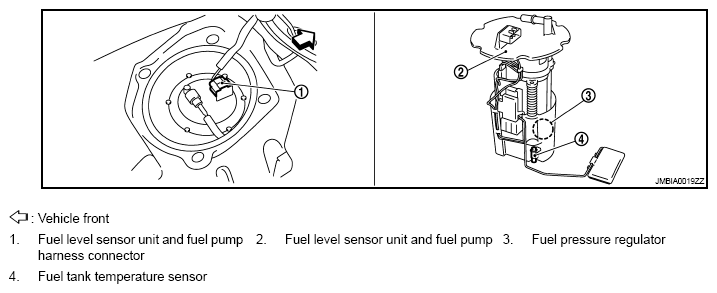

Fig 17: Identifying Fuel Tank Temperature Sensor, Fuel Pressure Regulator With Fuel Level Sensor Unit And Fuel Pump

G06614891

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM

G06614892

Courtesy of NISSAN NORTH AMERICA, INC.

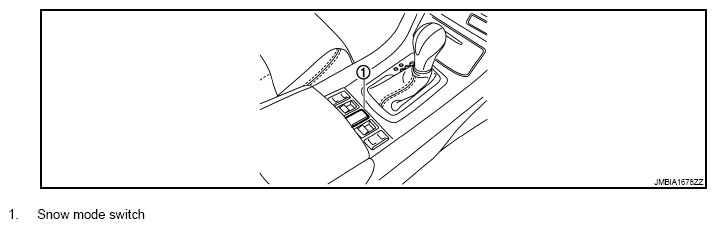

Fig 19: Identifying Snow Mode Switch

G06614893

Courtesy of NISSAN NORTH AMERICA, INC.

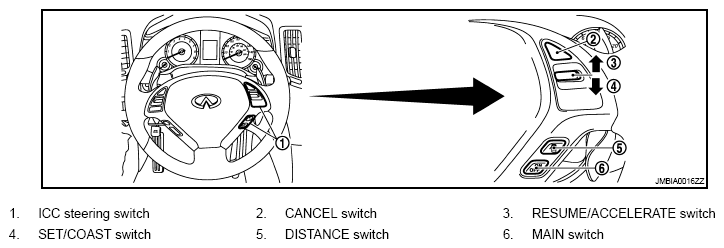

Fig 20: Identifying Steering Column Switches (1 Of 2)

G06614894

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Steering Column Switches (2 Of 2)

G06614895

Courtesy of NISSAN NORTH AMERICA, INC.

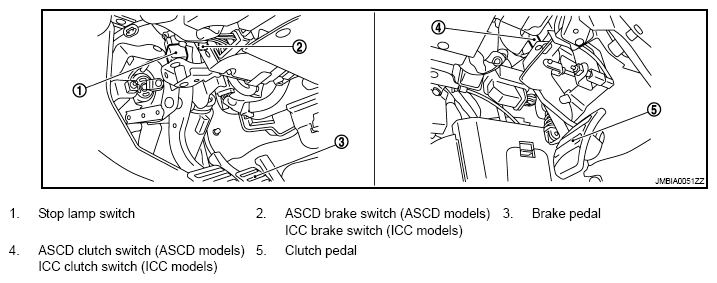

Fig 22: Identifying Stop Lamp Switch With Brake And Clutch Pedal

G06614896

Courtesy of NISSAN NORTH AMERICA, INC.
