Component Parts Location

Fig 1: Engine Control System Parts Location

G06614948

Courtesy of NISSAN NORTH AMERICA, INC.

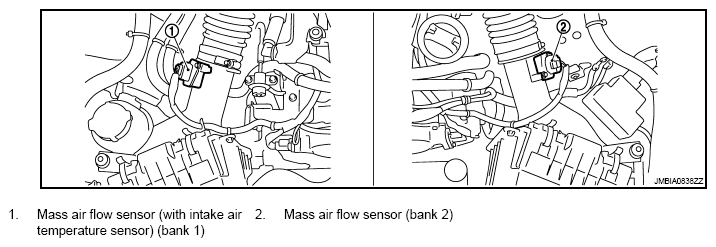

Fig 2: Identifying Mass Air Flow Sensor

G06614949

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Electric Throttle Control Actuator

G06614950

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Cooling Fan Control Module, Cooling Fan Relay And Cooling Fan Motor

G06614951

Courtesy of NISSAN NORTH AMERICA, INC.

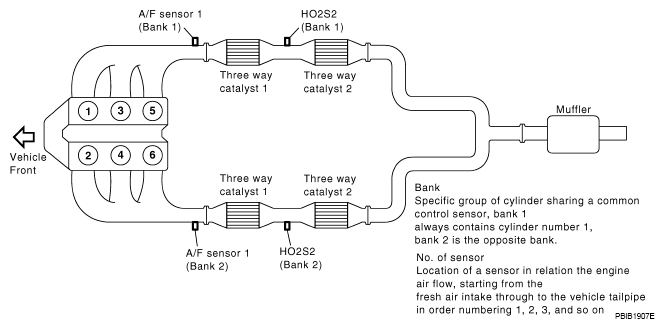

Fig 5: Identifying Sensors Location

G06614952

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor 1 Connector

G06614953

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor 1 Connector

G06614954

Courtesy of NISSAN NORTH AMERICA, INC.

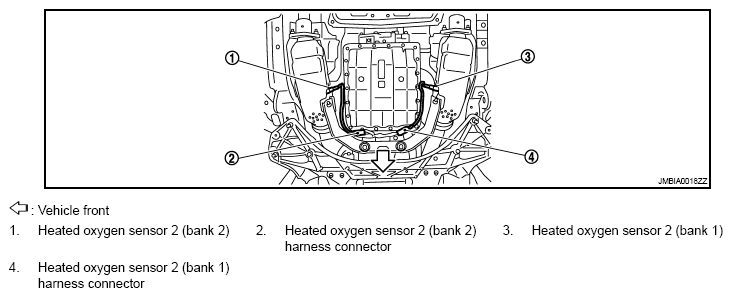

Fig 8: Identifying Heated Oxygen Sensor 2 Connector

G06614955

Courtesy of NISSAN NORTH AMERICA, INC.

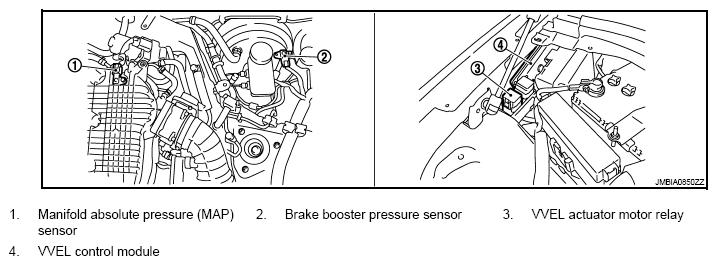

Fig 9: Identifying Manifold Absolute Pressure Sensor, Brake Booster Pressure Sensor, VVEL Actuator Motor Relay And VVEL Control Module

G06614956

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Control Shaft Position Sensor And VVEL Actuator Motor

G06614957

Courtesy of NISSAN NORTH AMERICA, INC.

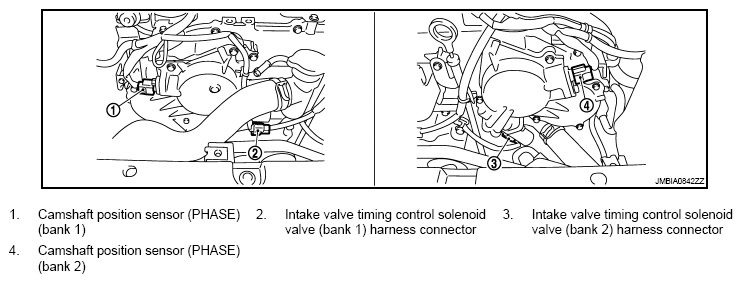

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Connector

G06614958

Courtesy of NISSAN NORTH AMERICA, INC.

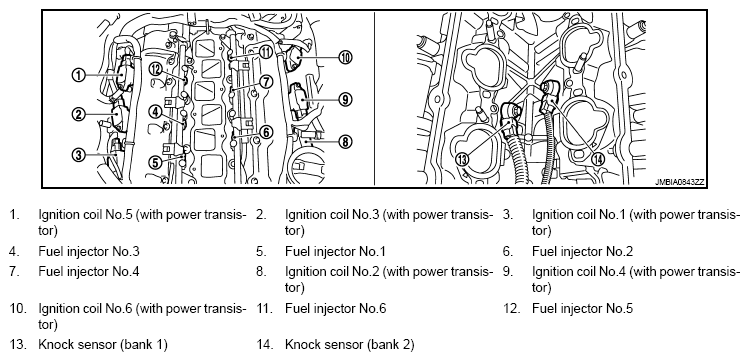

Fig 12: Identifying Fuel Injectors And Ignition Coils

G06614959

Courtesy of NISSAN NORTH AMERICA, INC.

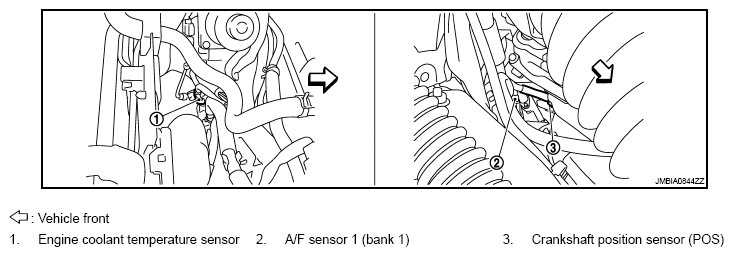

Fig 13: Identifying Engine Coolant Temperature Sensor, A/F Sensor 1 (Bank 1) And Crankshaft Position Sensor (POS)

G06614960

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor

G06614961

Courtesy of NISSAN NORTH AMERICA, INC.

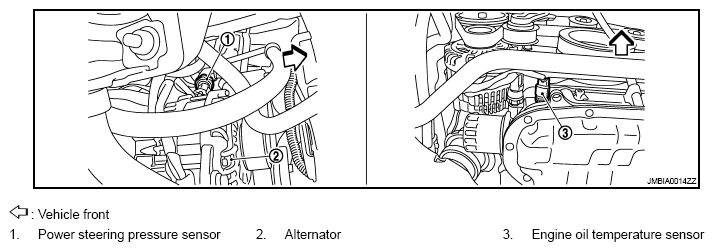

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor

G06614962

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying EVAP Canister, EVAP Canister Vent Control Valve And EVAP Canister Purge Volume Control Solenoid Valve

G06614963

Courtesy of NISSAN NORTH AMERICA, INC.

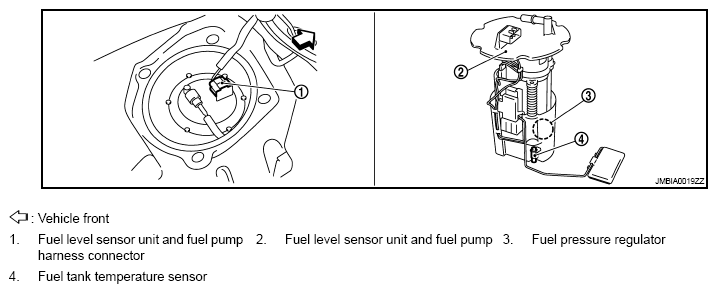

Fig 17: Identifying Fuel Tank Temperature Sensor, Fuel Pressure Regulator With Fuel Level Sensor Unit And Fuel Pump

G06614964

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM

G06614965

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Snow Mode Switch

G06614966

Courtesy of NISSAN NORTH AMERICA, INC.

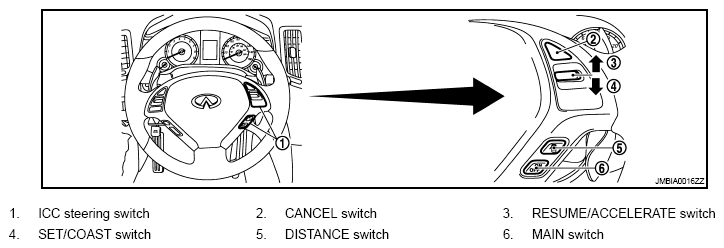

Fig 20: Identifying Steering Column Switches (1 Of 2)

G06614967

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Steering Column Switches (2 Of 2)

G06614968

Courtesy of NISSAN NORTH AMERICA, INC.

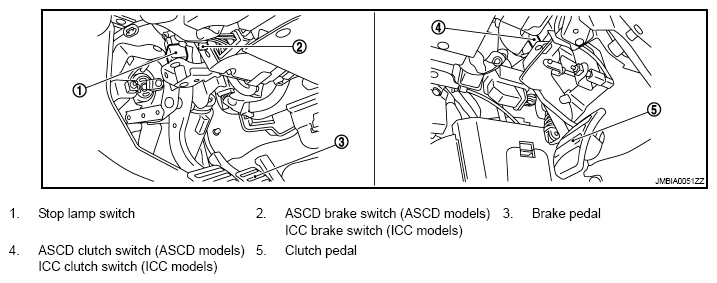

Fig 22: Identifying Stop Lamp Switch With Brake And Clutch Pedal

G06614969

Courtesy of NISSAN NORTH AMERICA, INC.
