Wiring Diagram - NVIS

WARNING: This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

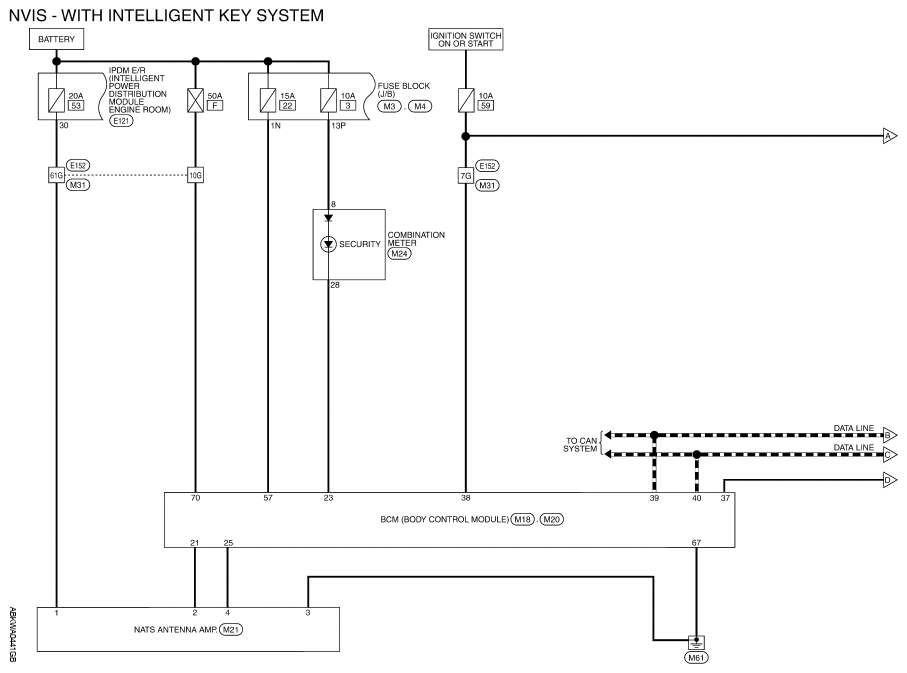

Fig 1: NVIS - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

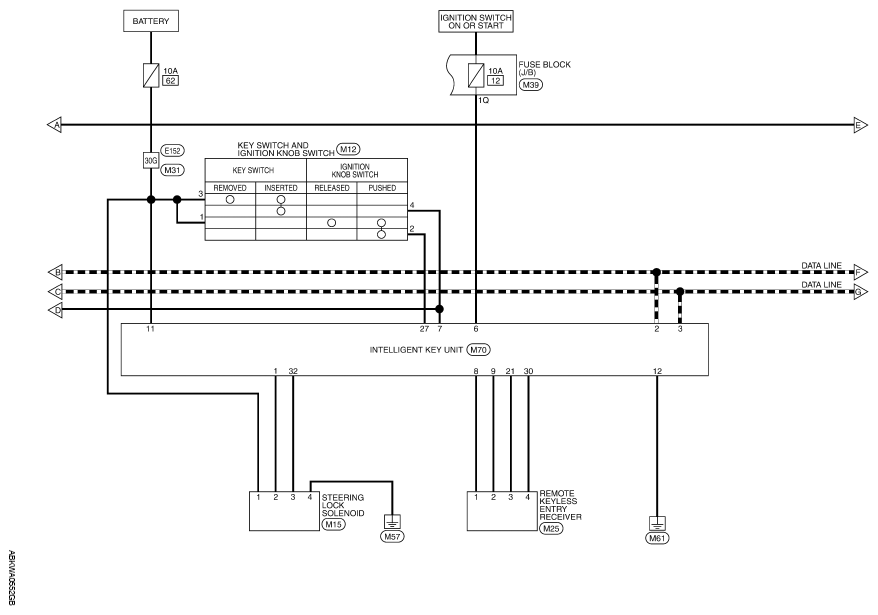

Fig 2: NVIS - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

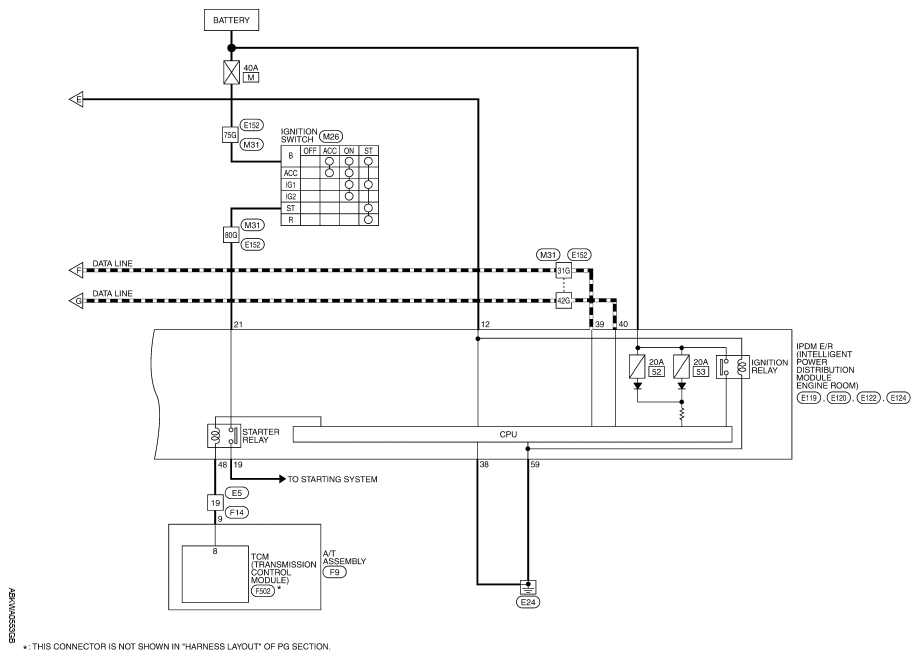

Fig 3: NVIS - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

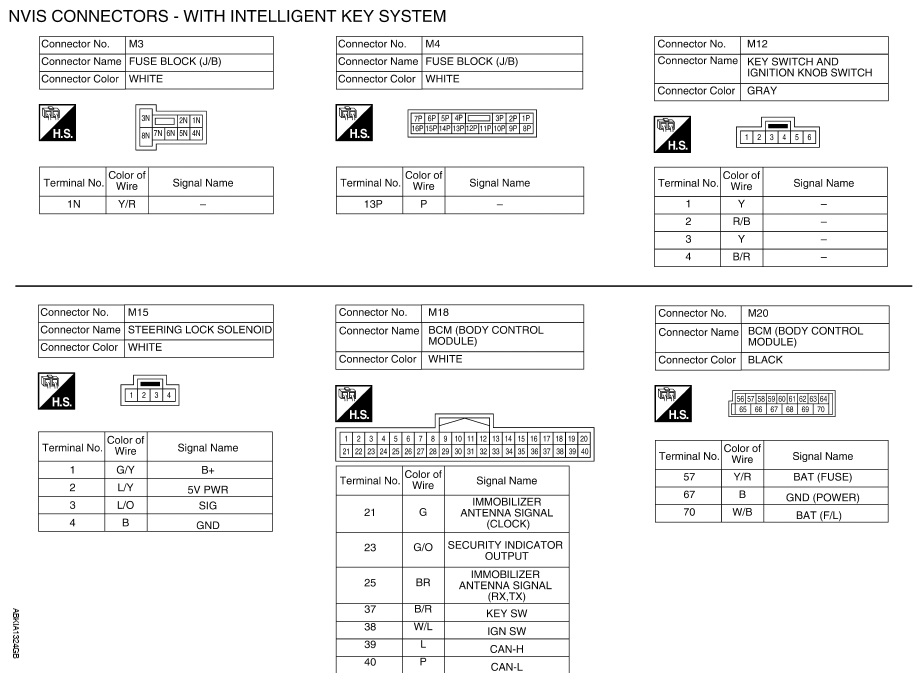

Fig 4: Identifying NVIS Connectors (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

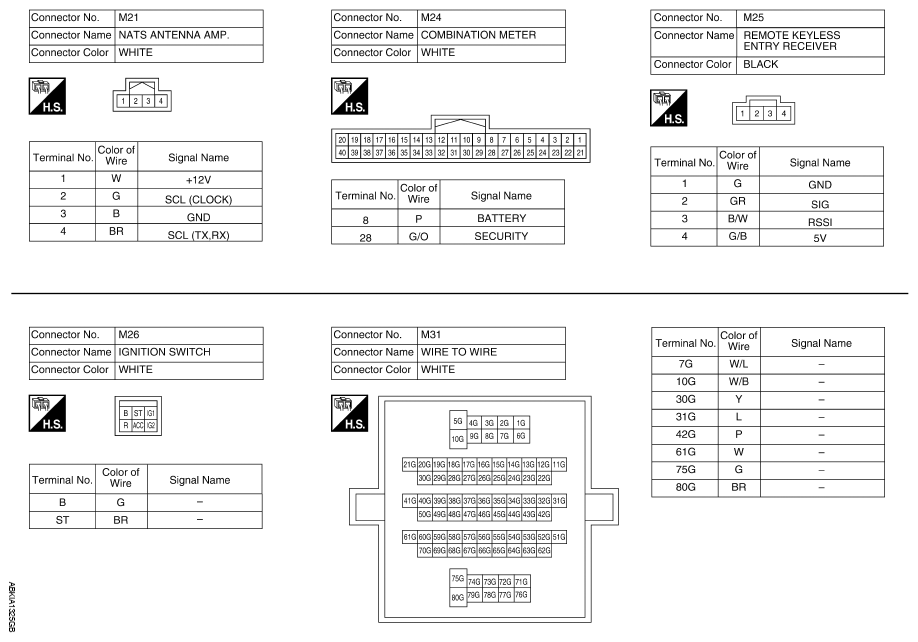

Fig 5: Identifying NVIS Connectors (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

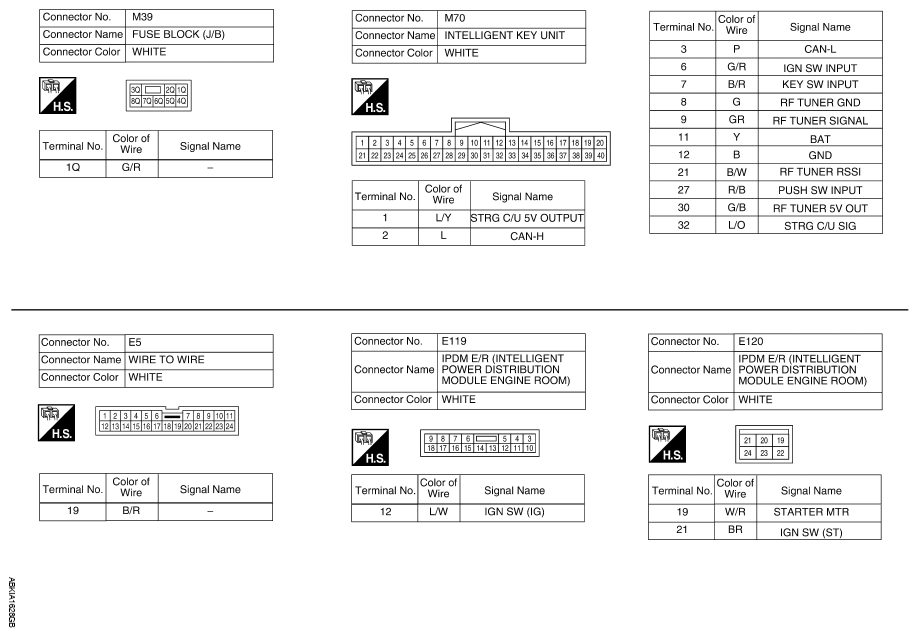

Fig 6: Identifying NVIS Connectors (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

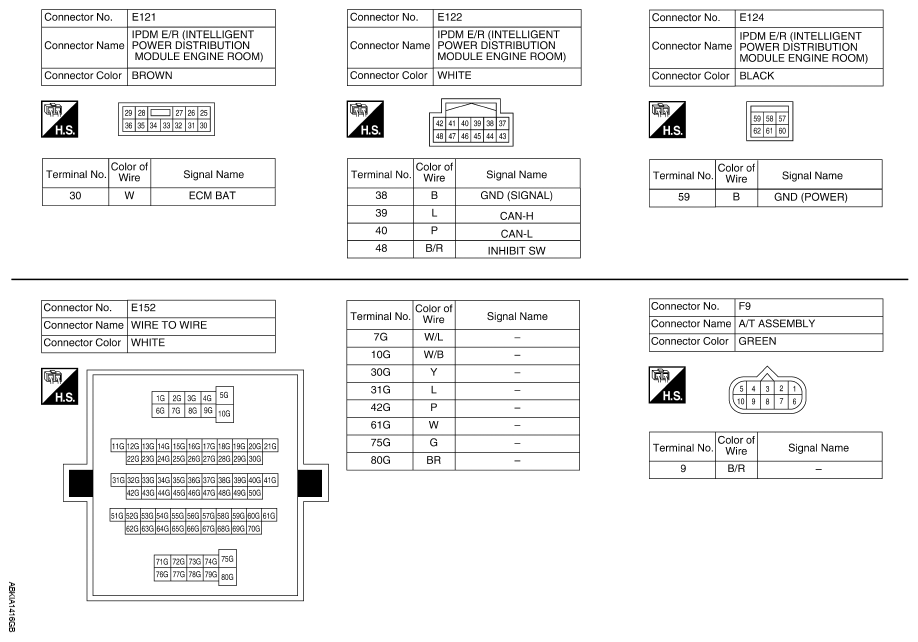

Fig 7: Identifying NVIS Connectors (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

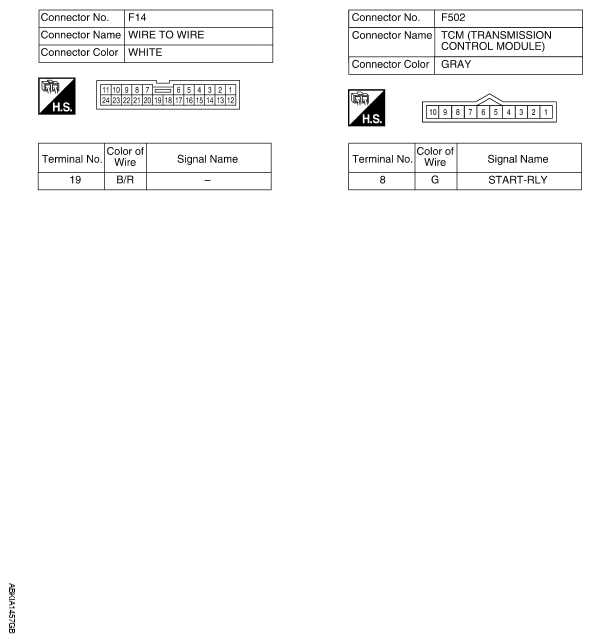

Fig 8: Identifying NVIS Connectors (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
