Wiring Diagram - VEHICLE SECURITY SYSTEM

WARNING: This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

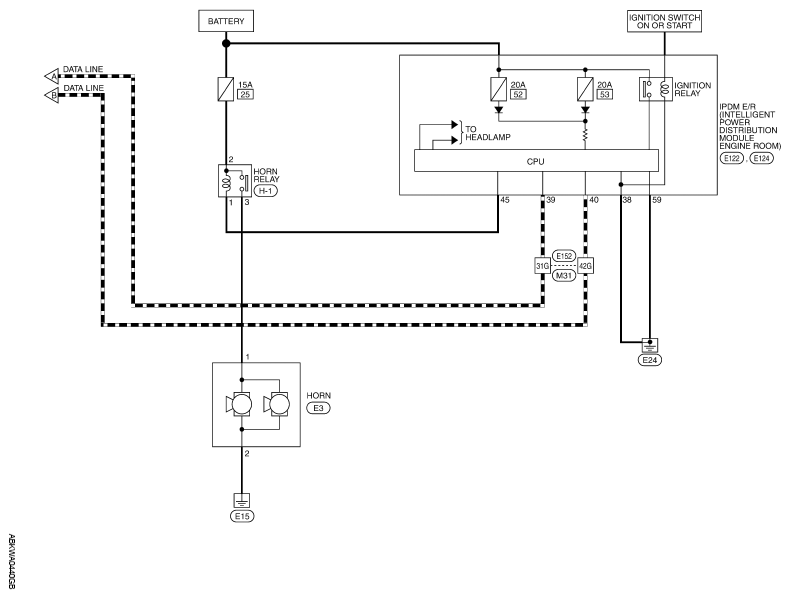

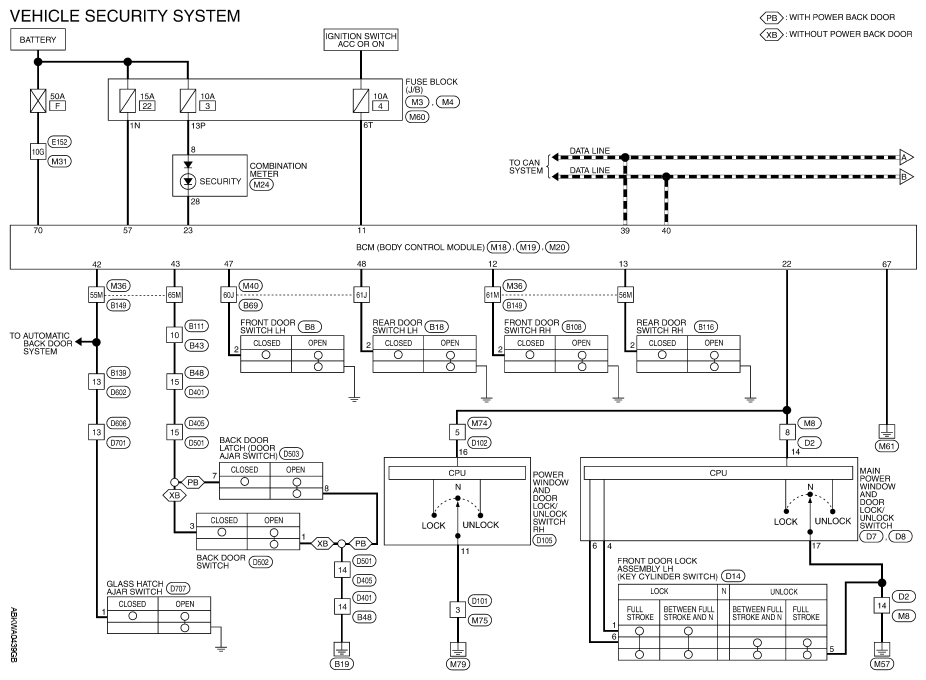

Fig 1: Vehicle Security System - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Vehicle Security System - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

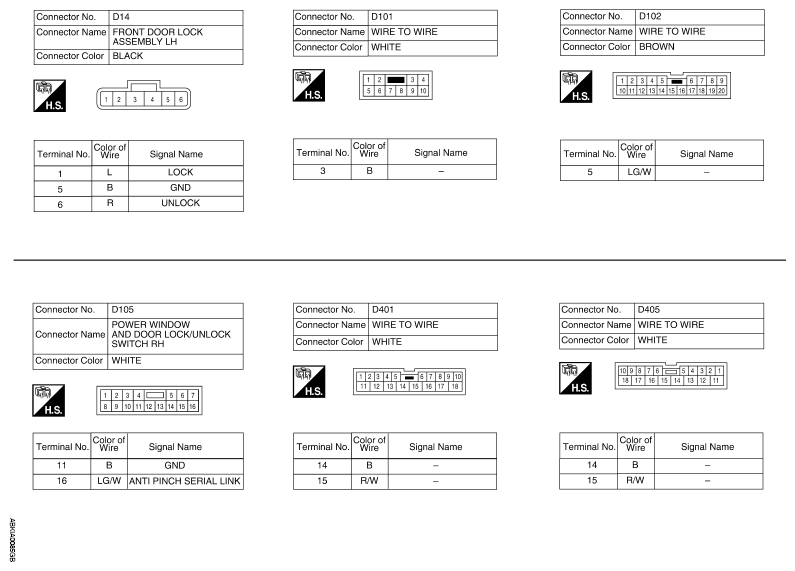

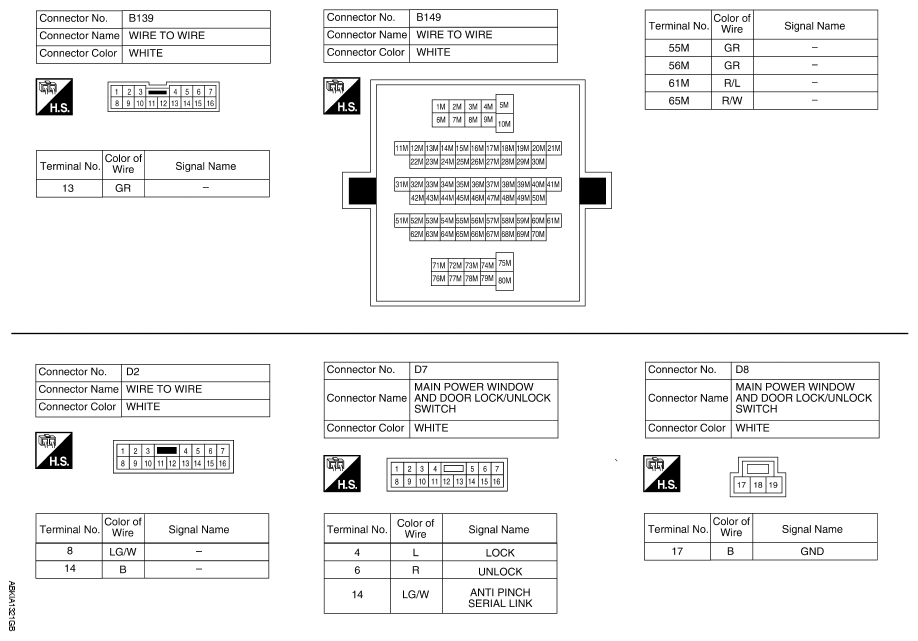

Fig 3: Identifying Vehicle Security System Connectors (1 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

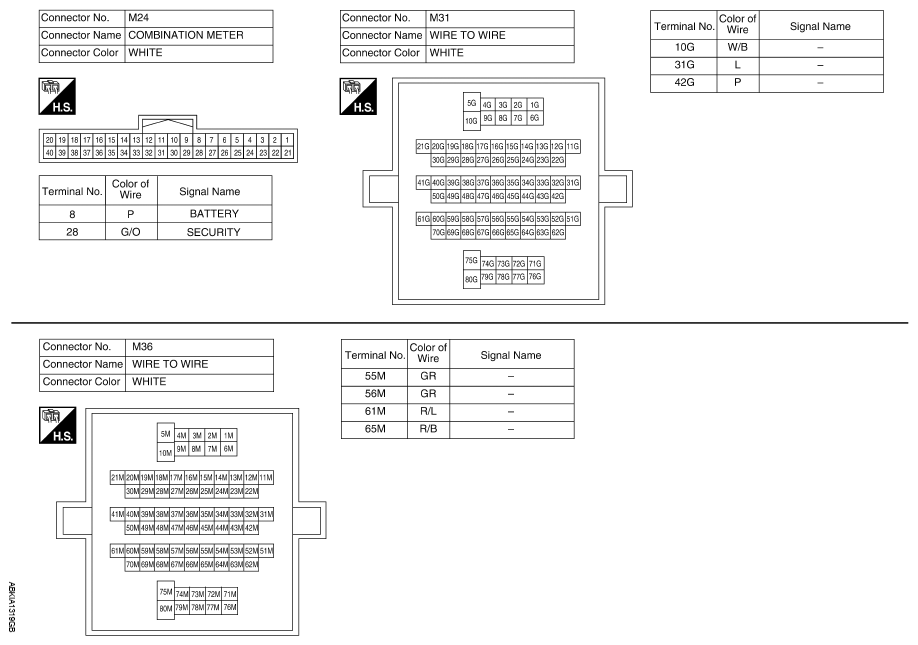

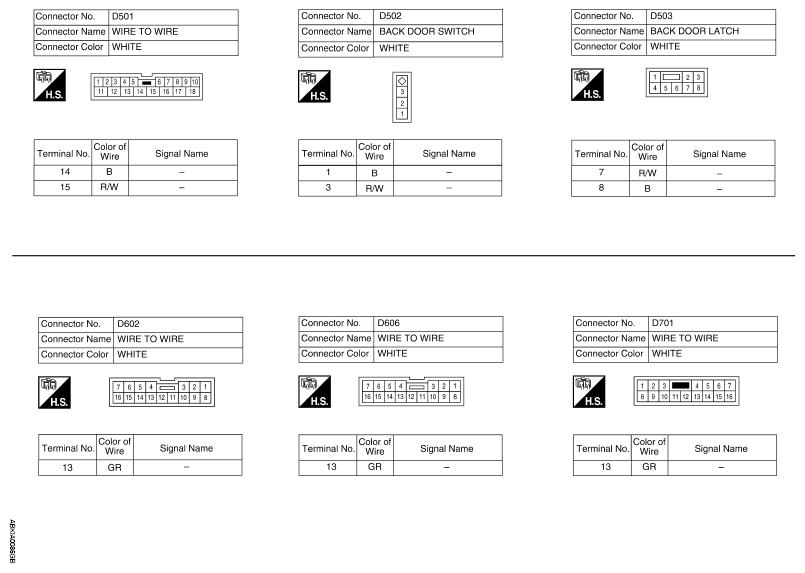

Fig 4: Identifying Vehicle Security System Connectors (2 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

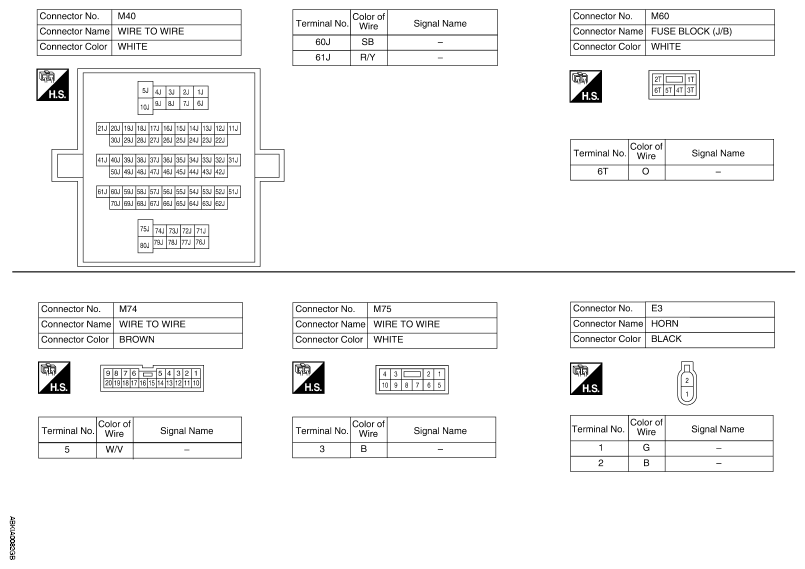

Fig 5: Identifying Vehicle Security System Connectors (3 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

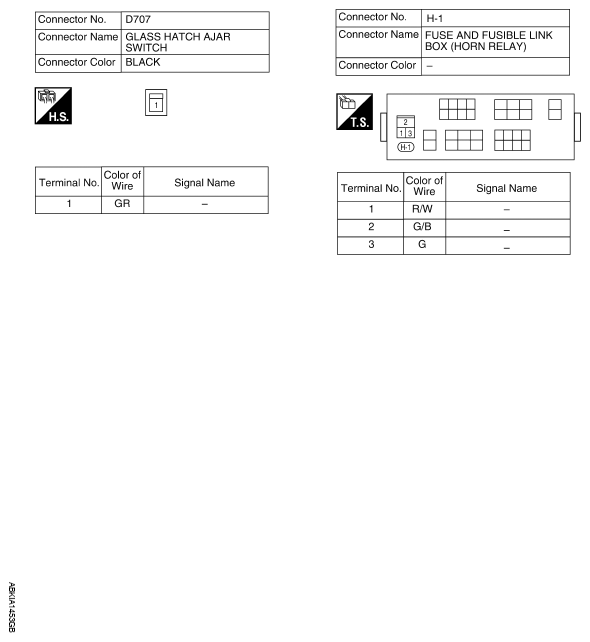

Fig 6: Identifying Vehicle Security System Connectors (4 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

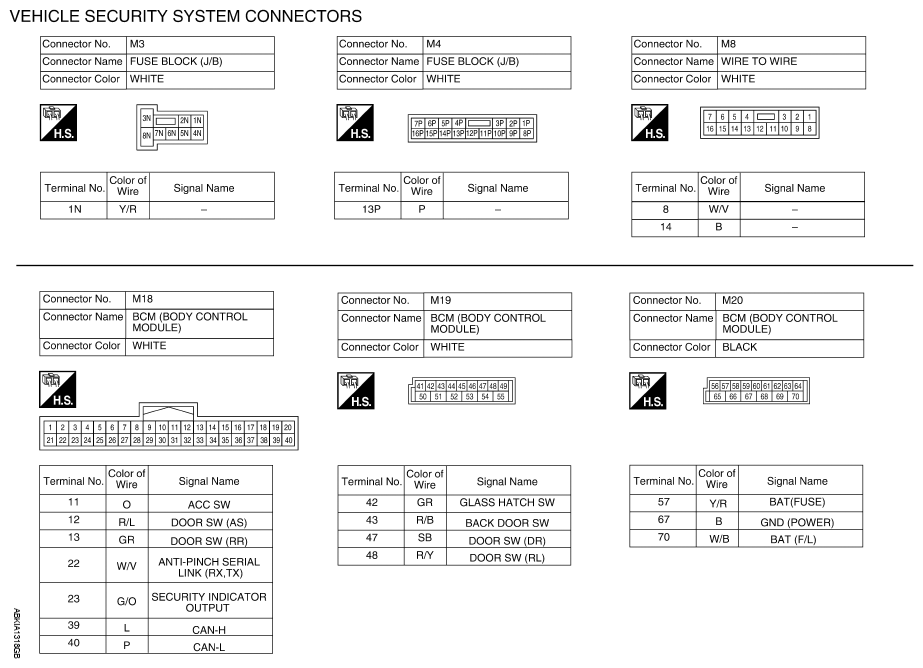

Fig 7: Identifying Vehicle Security System Connectors (5 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

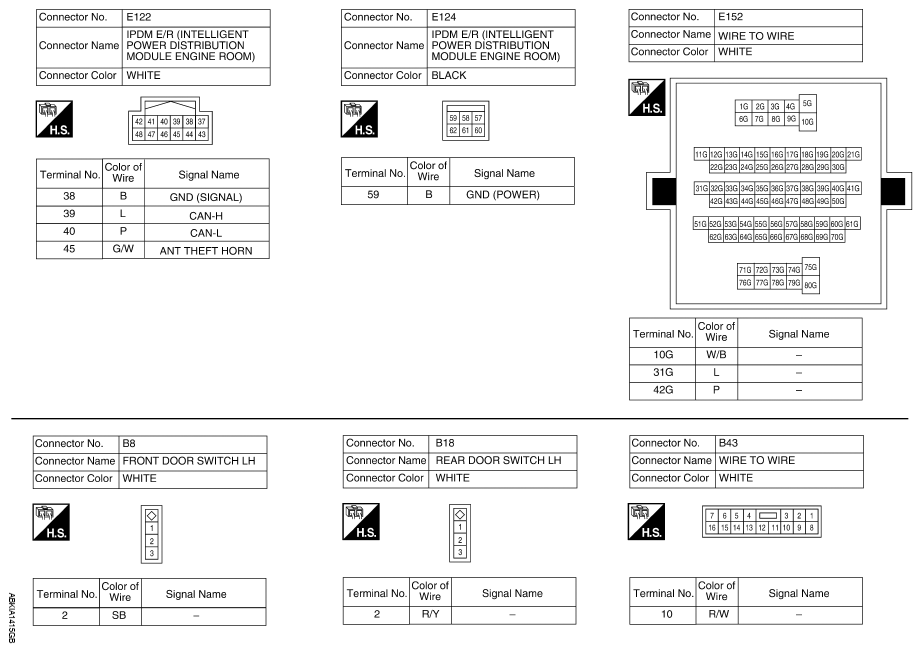

Fig 8: Identifying Vehicle Security System Connectors (6 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

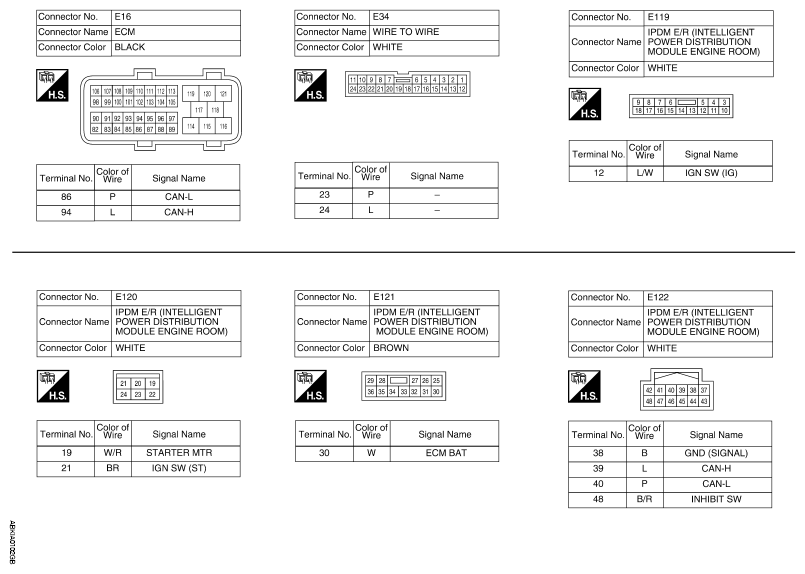

Fig 9: Identifying Vehicle Security System Connectors (7 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Vehicle Security System Connectors (8 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Vehicle Security System Connectors (9 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.
