Wiring Diagram - NVIS -

WARNING: This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

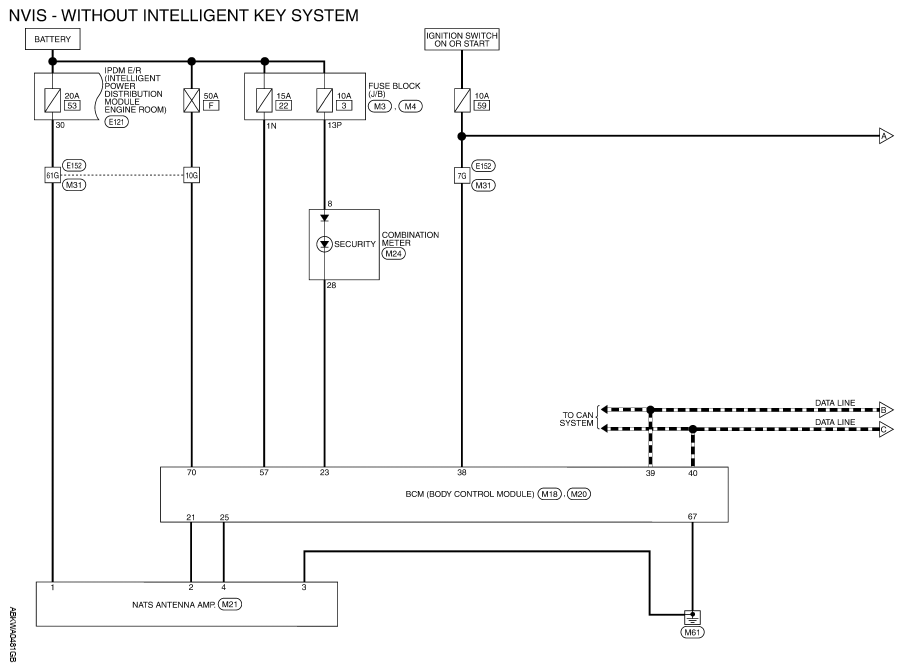

Fig 1: NVIS (Without Intelligent Key System) - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

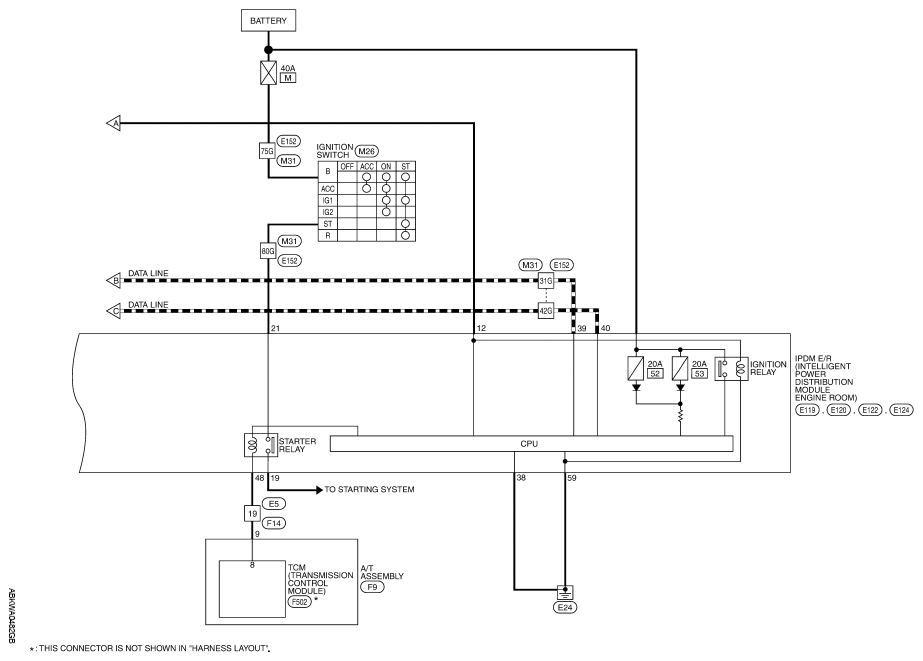

Fig 2: NVIS (Without Intelligent Key System) - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

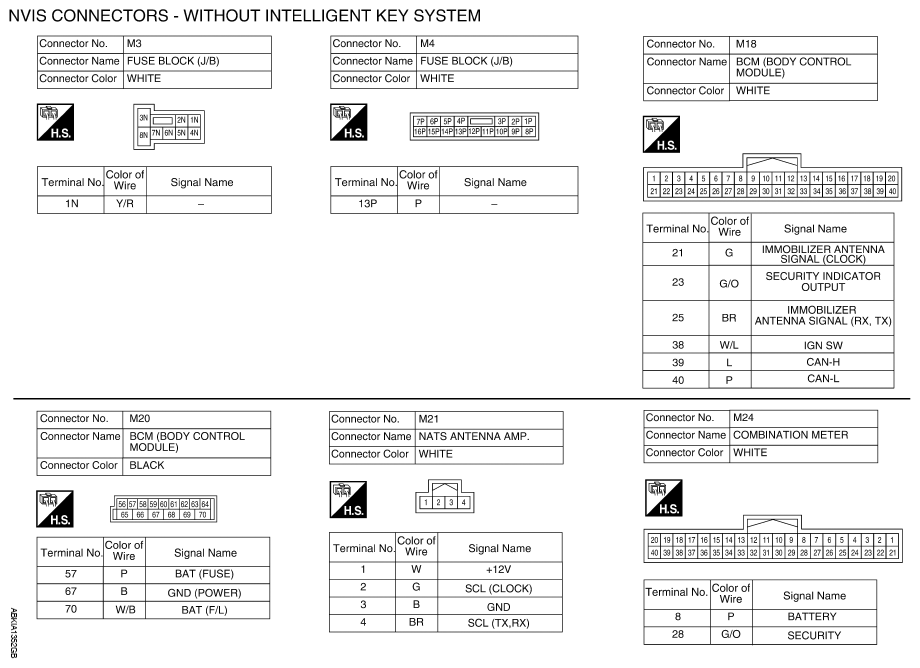

Fig 3: Identifying NVIS Connector - Without Intelligent Key System (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

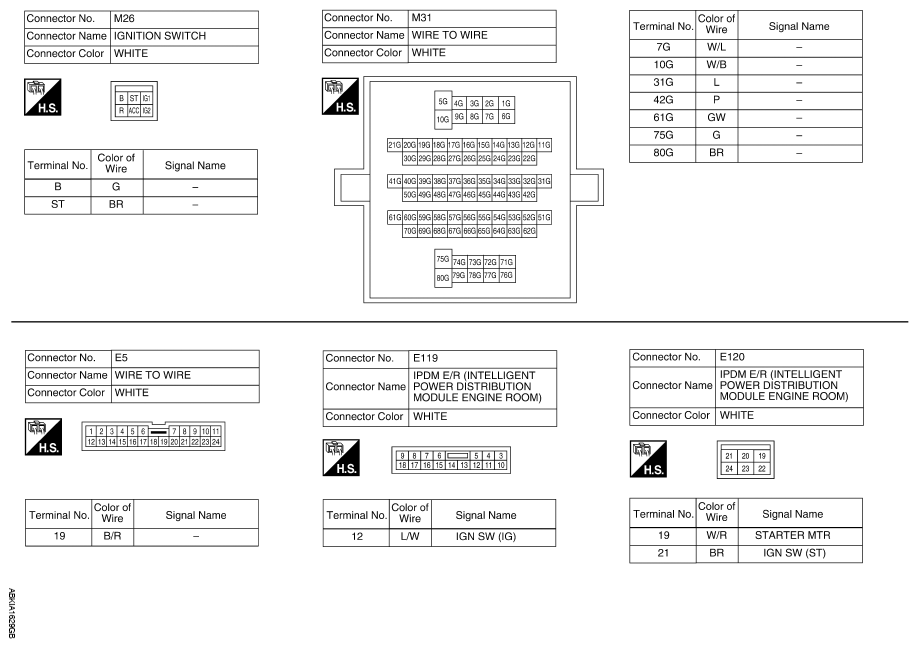

Fig 4: Identifying NVIS Connector - Without Intelligent Key System (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

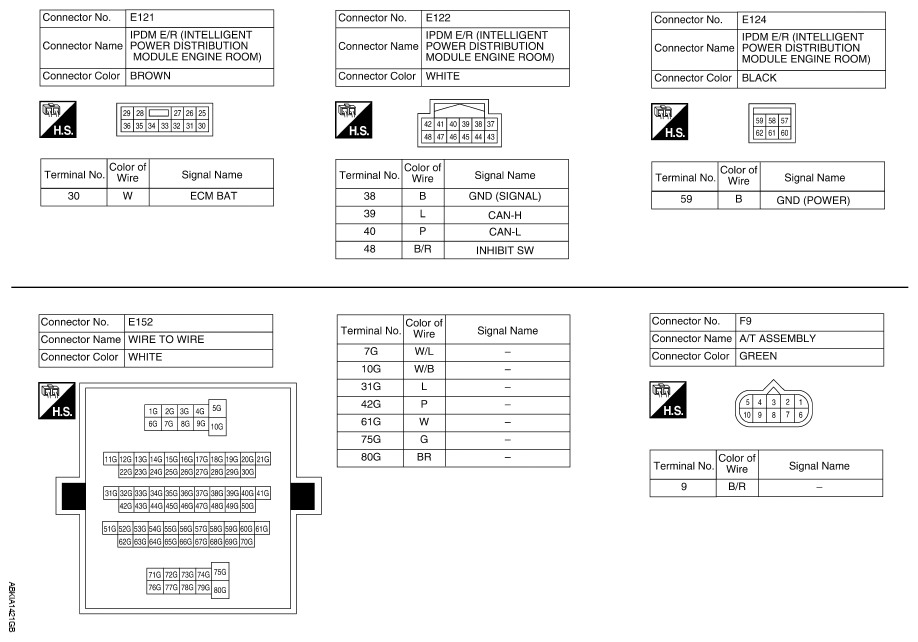

Fig 5: Identifying NVIS Connector - Without Intelligent Key System (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

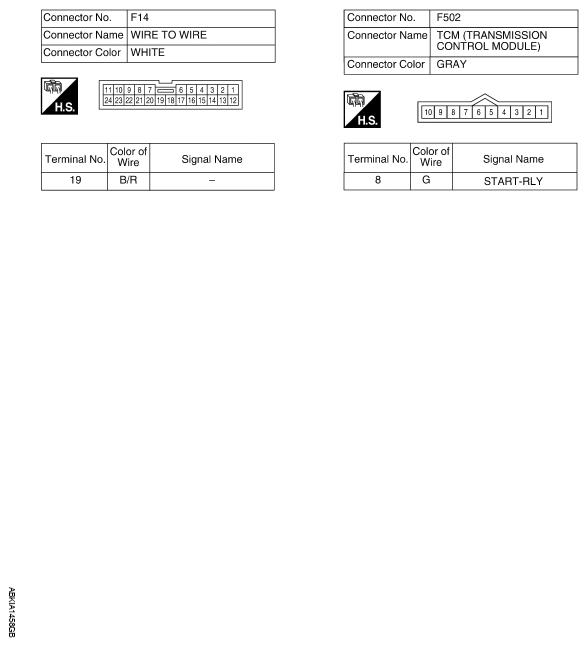

Fig 6: Identifying NVIS Connector - Without Intelligent Key System (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
