WARNING: This page is about a different car, the 2010 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

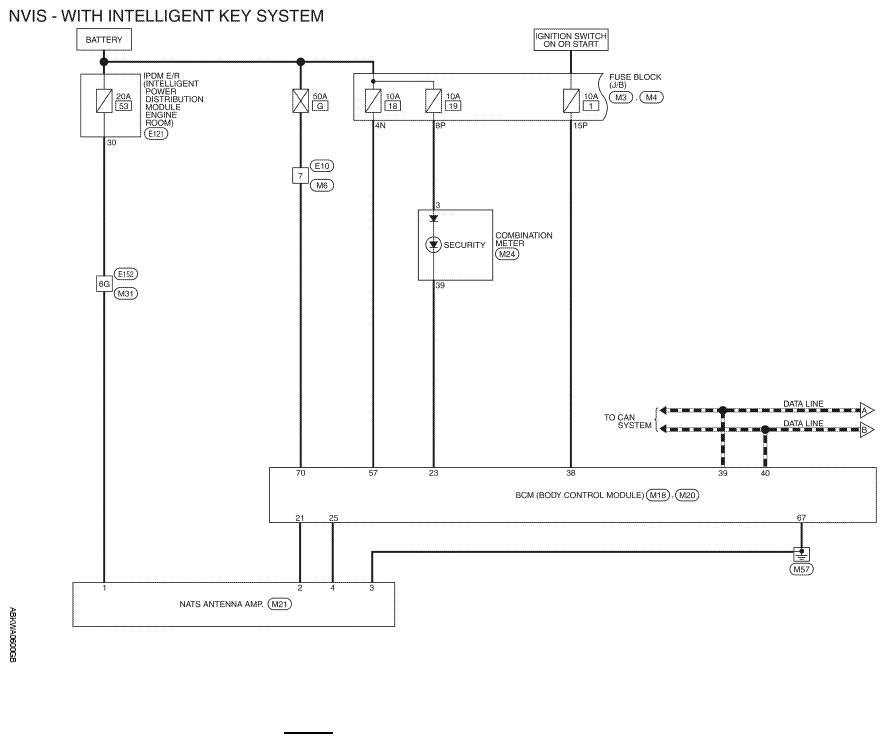

Fig 1: NVIS - Wiring Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

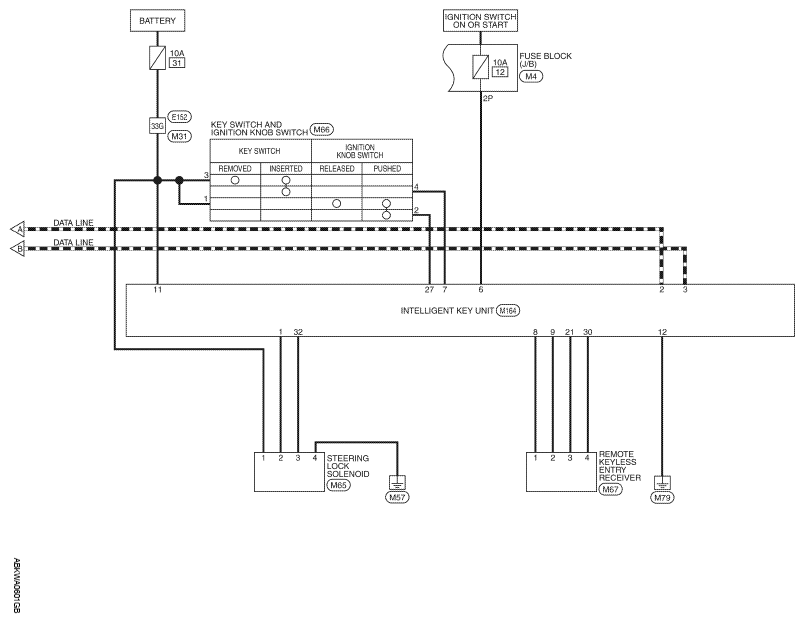

Fig 2: NVIS - Wiring Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

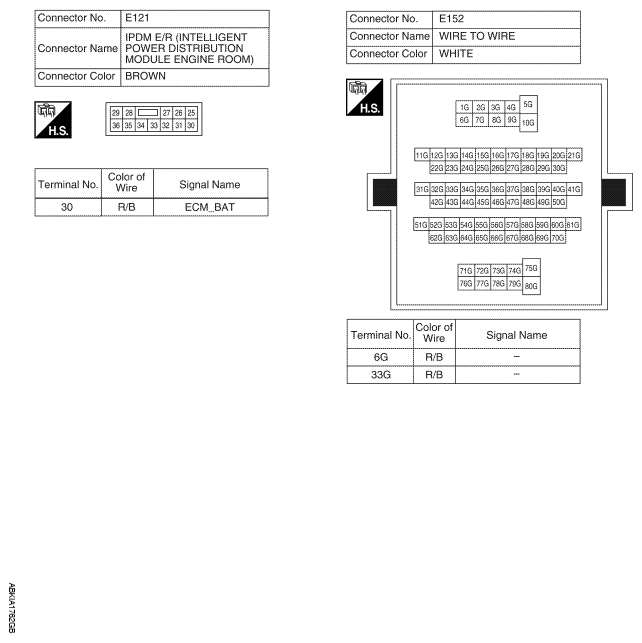

Fig 3: NVIS Connectors Chart - With Intelligent Key System (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

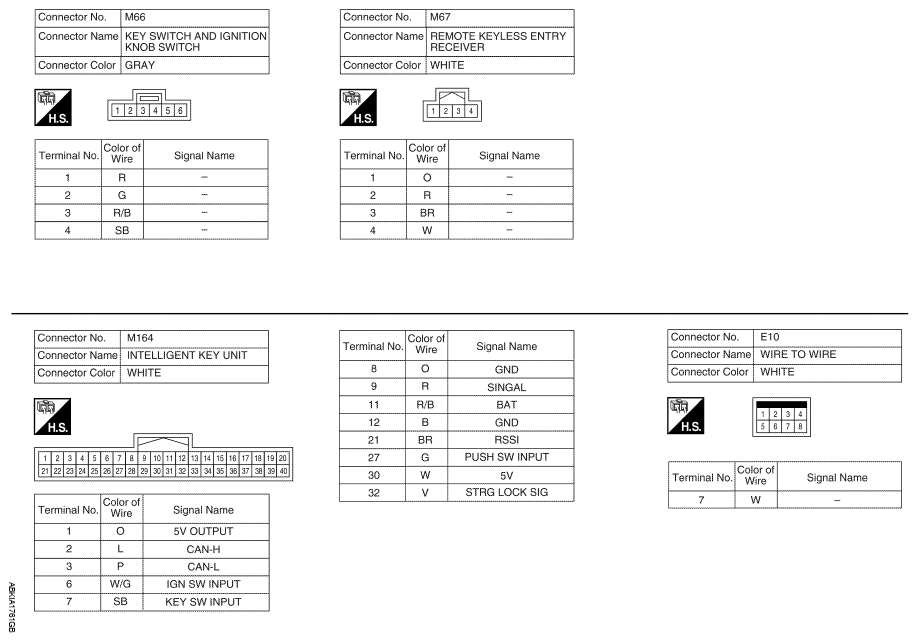

Fig 4: NVIS Connectors Chart - With Intelligent Key System (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: NVIS Connectors Chart - With Intelligent Key System (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: NVIS Connectors Chart - With Intelligent Key System (4 Of 4)
