Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

WARNING: This page is about a different car, the 2010 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

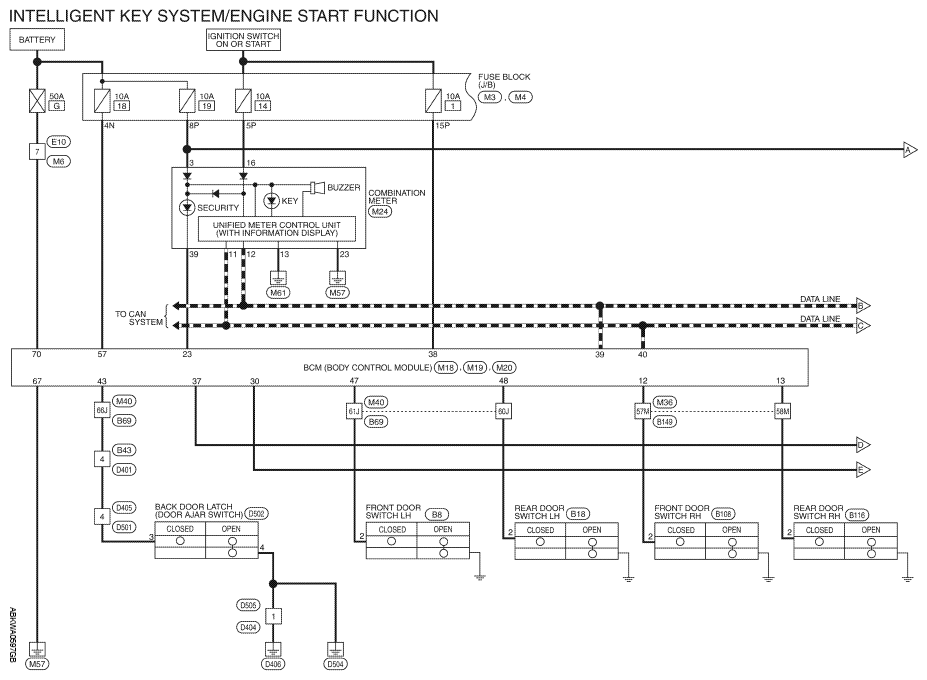

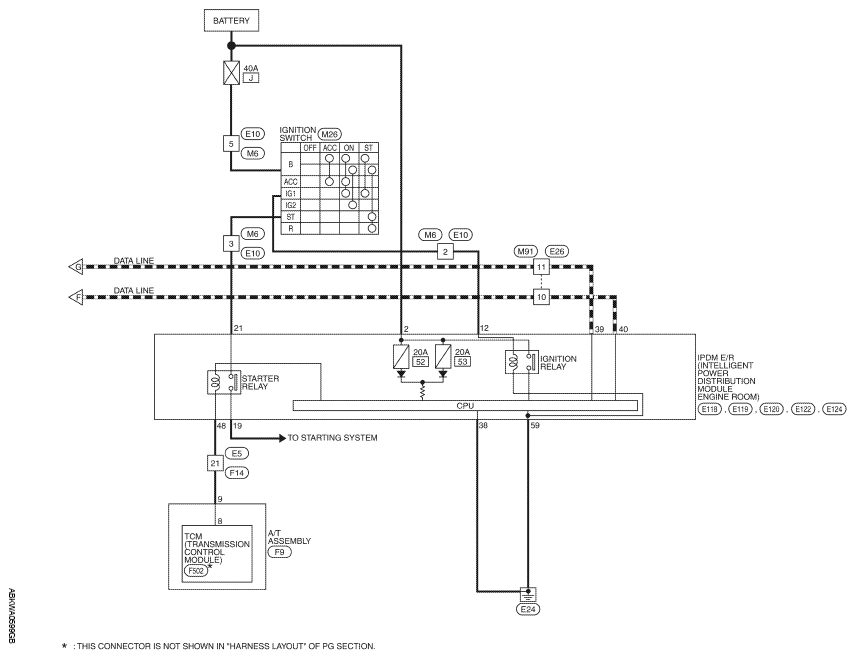

Fig 1: Intelligent Key System/Engine Start Function - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

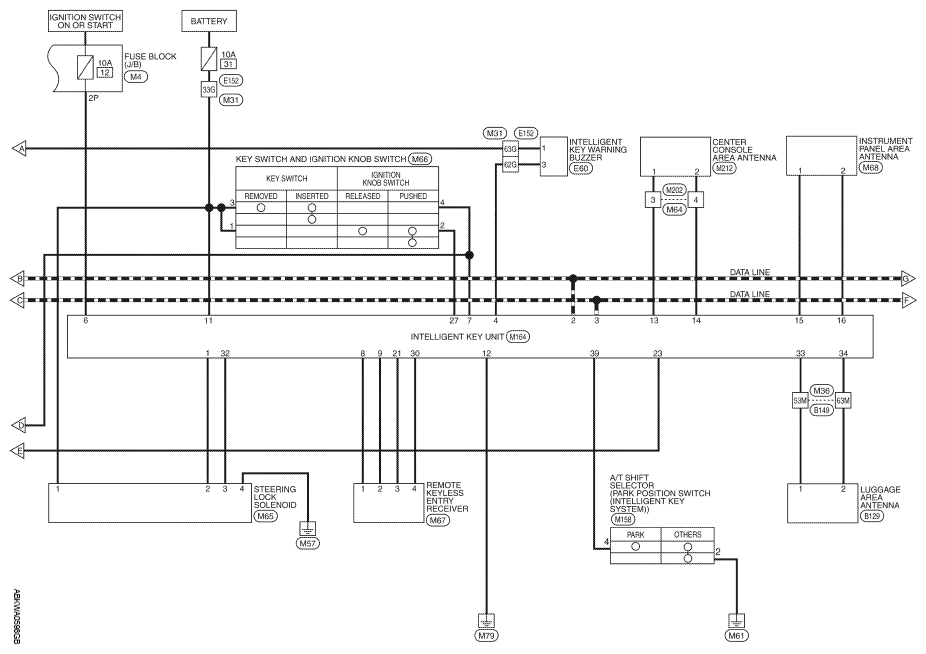

Fig 2: Intelligent Key System/Engine Start Function - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Intelligent Key System/Engine Start Function - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

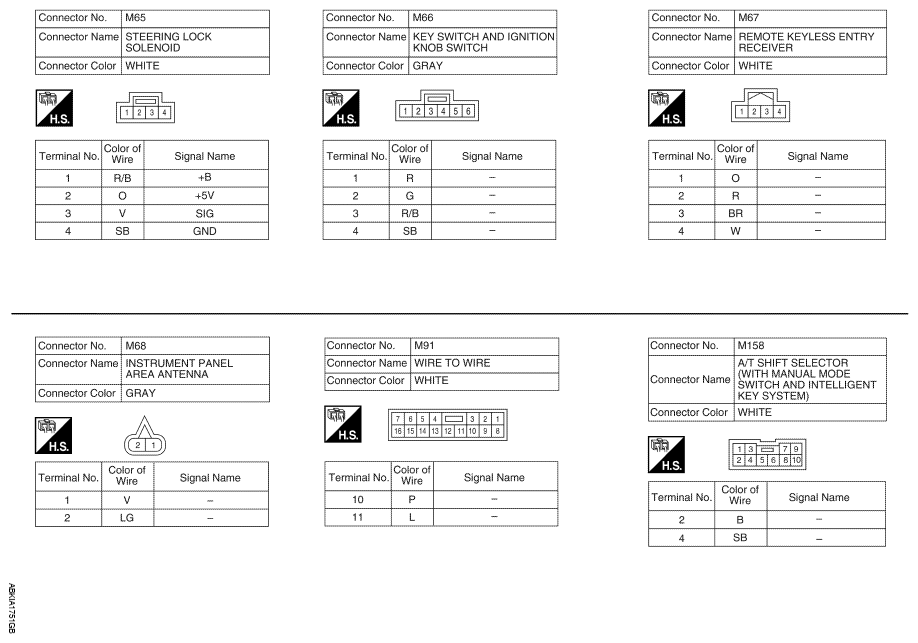

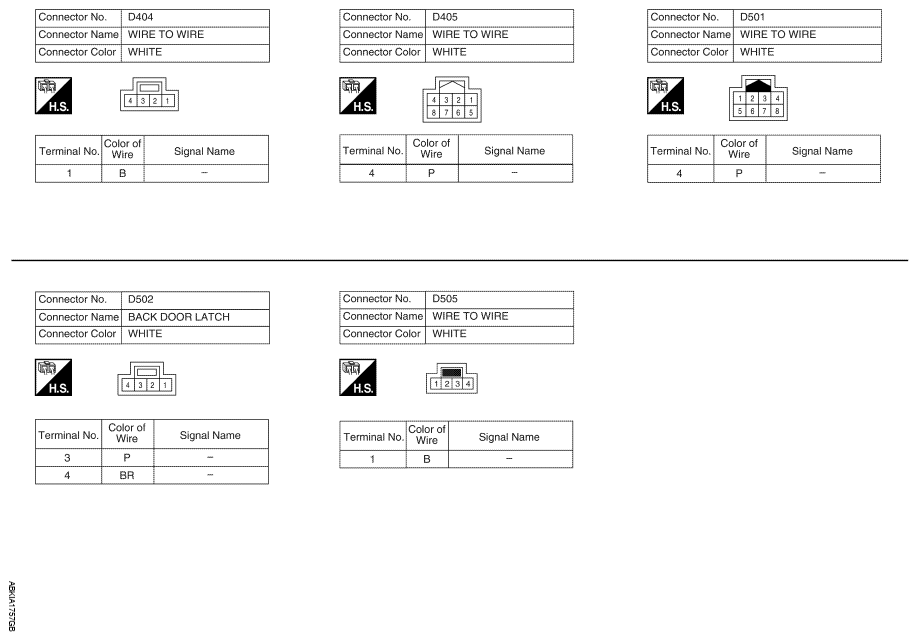

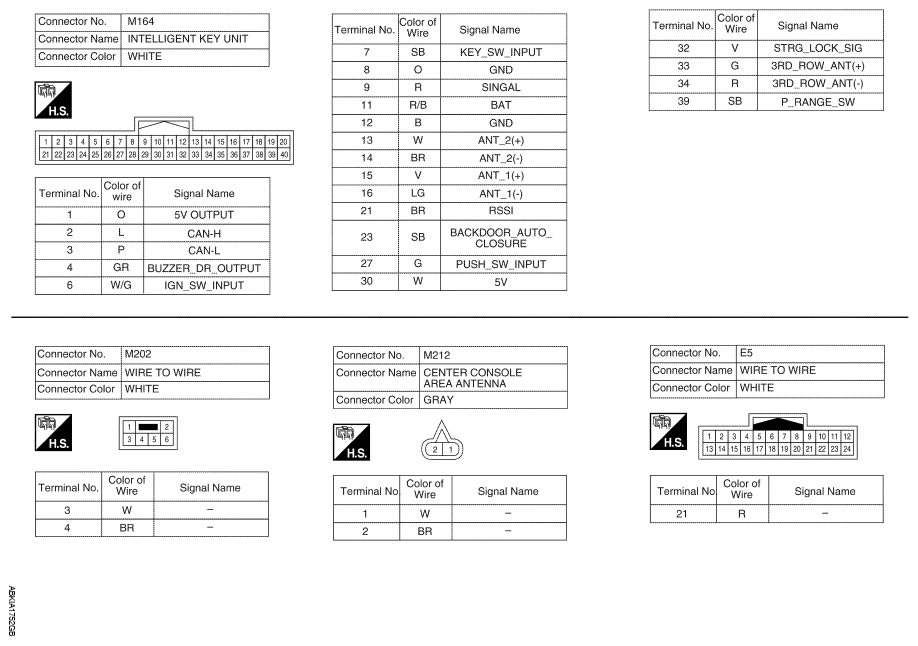

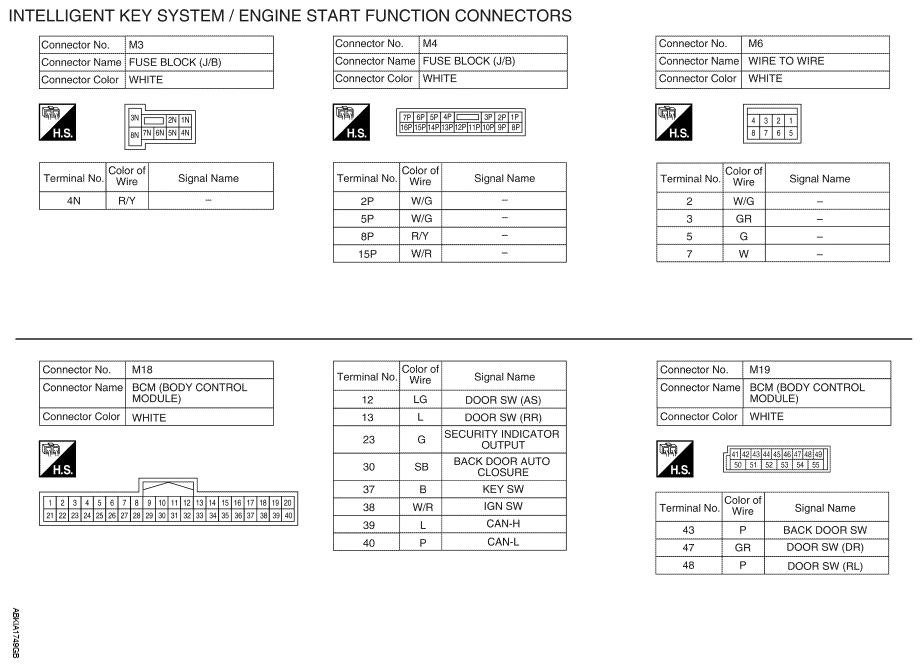

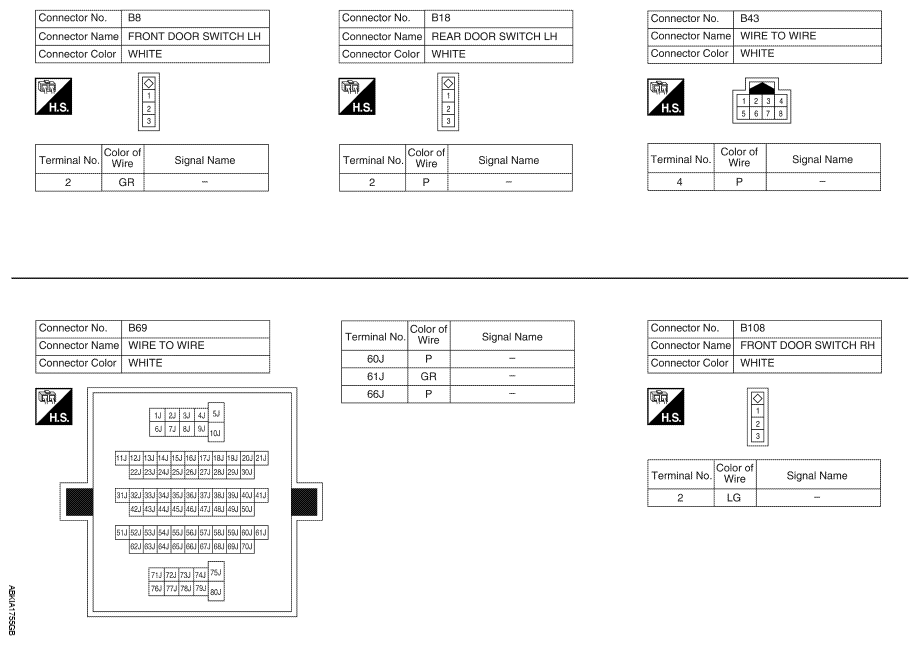

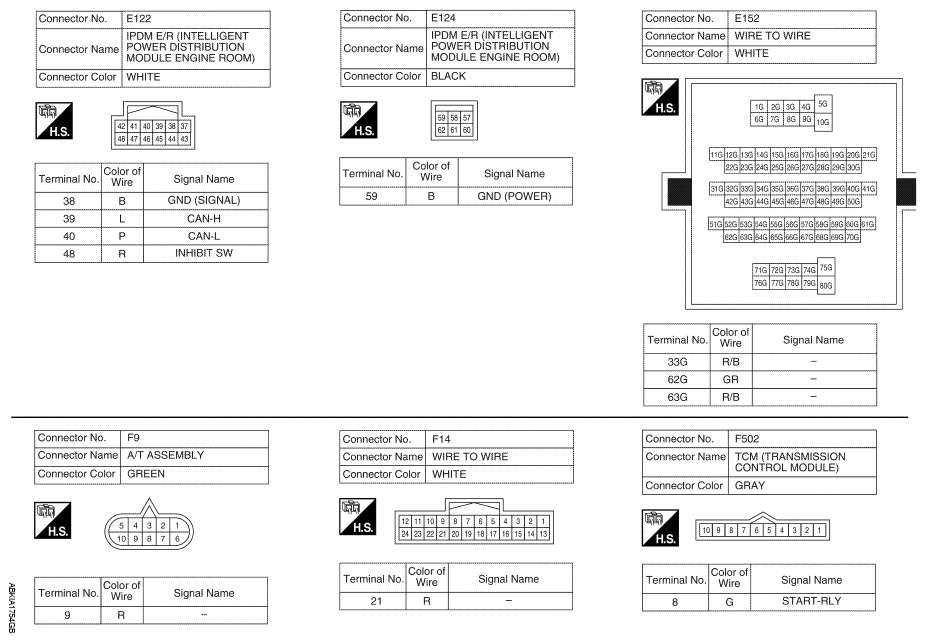

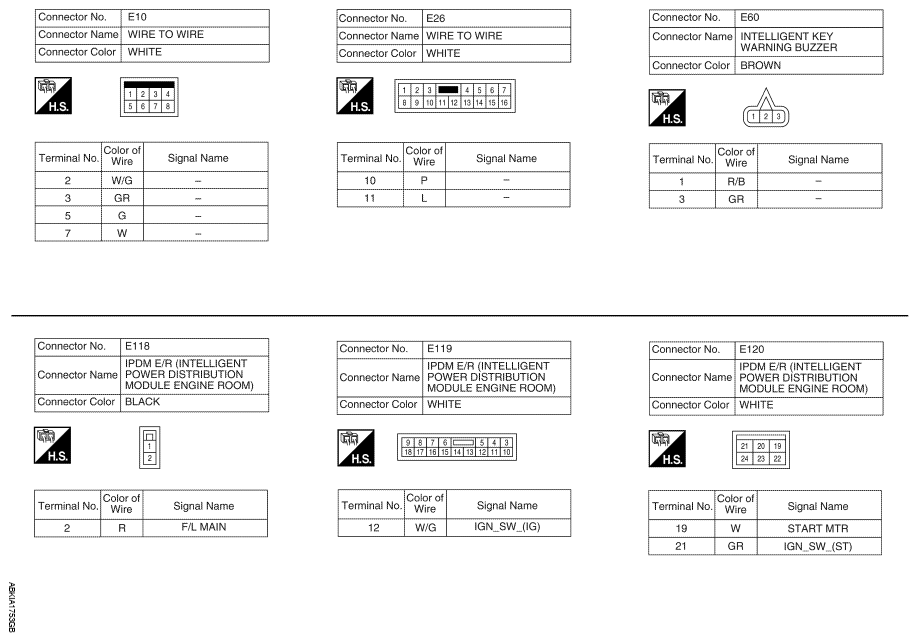

Fig 4: Intelligent Key System/Engine Start Function Connectors Chart (1 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

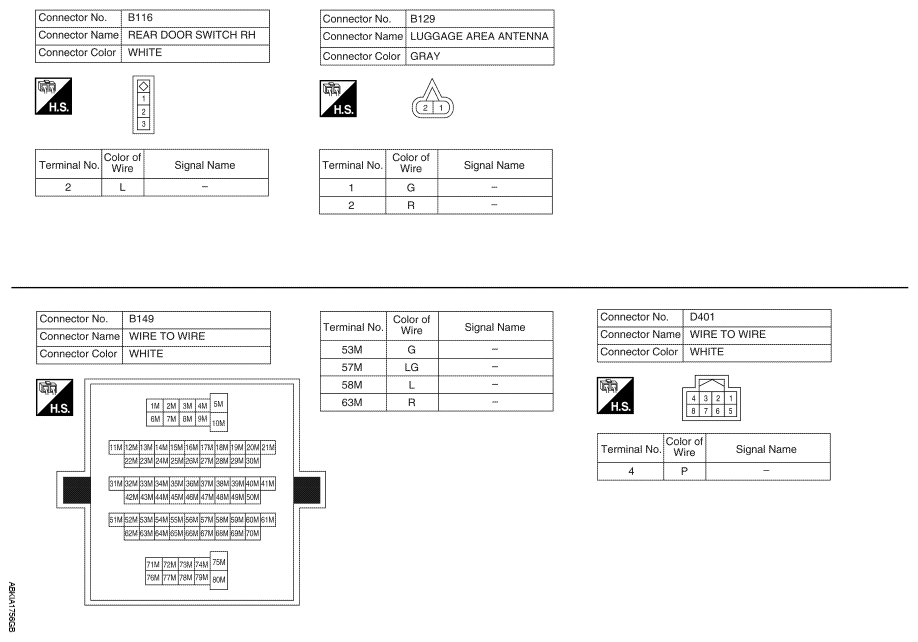

Fig 5: Intelligent Key System/Engine Start Function Connectors Chart (2 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Intelligent Key System/Engine Start Function Connectors Chart (3 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Intelligent Key System/Engine Start Function Connectors Chart (4 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Intelligent Key System/Engine Start Function Connectors Chart (5 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Intelligent Key System/Engine Start Function Connectors Chart (6 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Intelligent Key System/Engine Start Function Connectors Chart (7 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Intelligent Key System/Engine Start Function Connectors Chart (8 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Intelligent Key System/Engine Start Function Connectors Chart (9 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Intelligent Key System/Engine Start Function Connectors Chart (10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
