Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns Except For "Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"

WARNING: This page is about a different car, the 2011 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

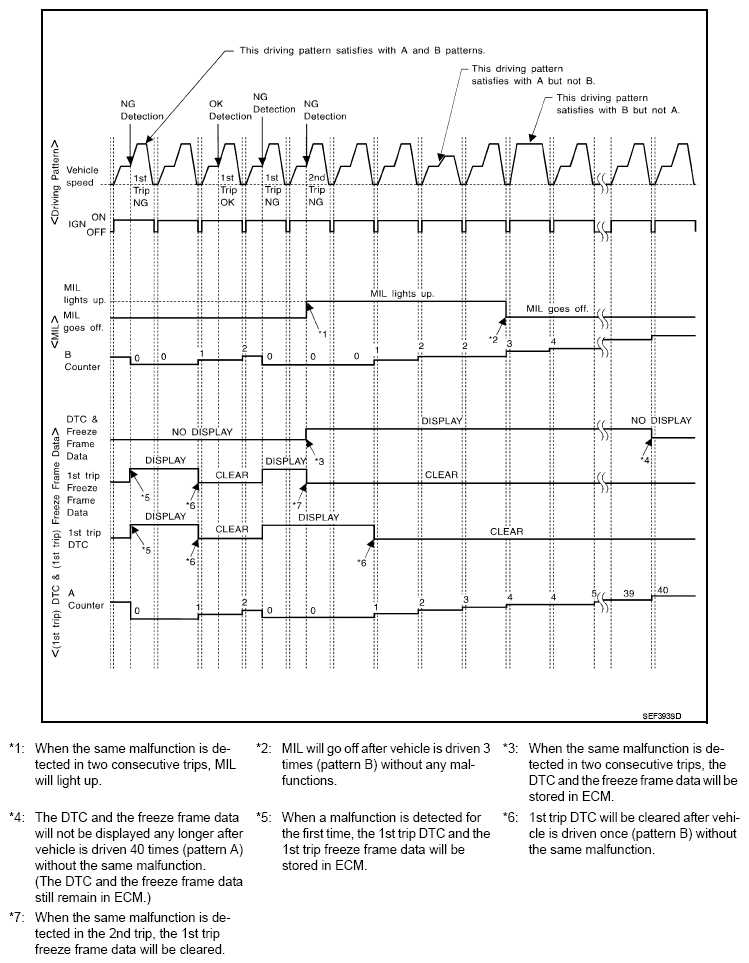

Fig 1: Relationship Between MIL, DTC, 1st Trip DTC And Driving Patterns Except For Misfire (Exhaust Quality Deterioration), Fuel Injection System
G06579693Courtesy of NISSAN MOTOR CO., U.S.A.
