DTC P0181: FTT Sensor: Wiring Diagram

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

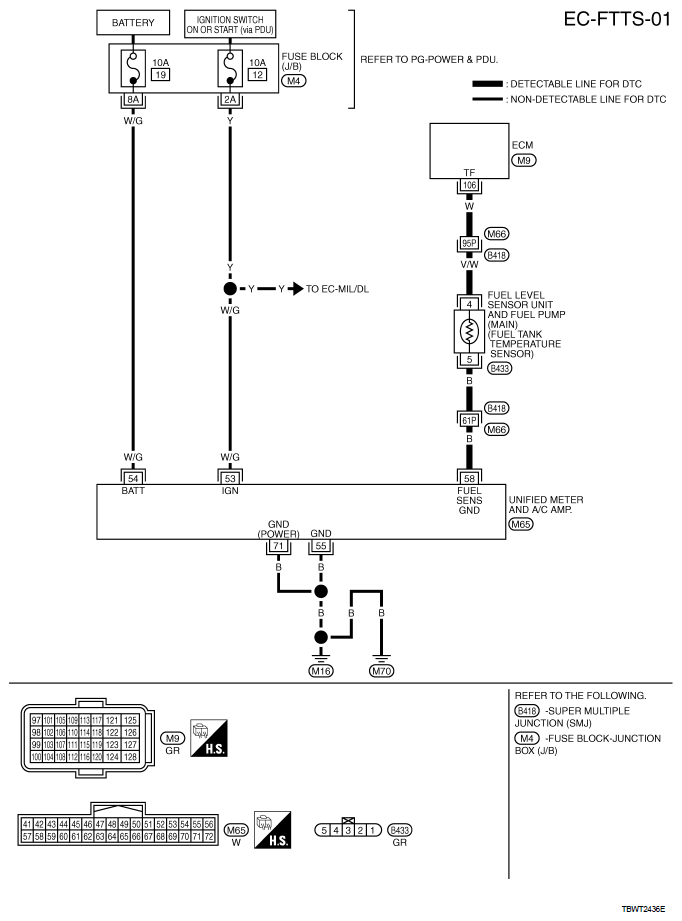

Fig 1: EC-FTTS-01 - Wiring Diagram
G06306583Courtesy of NISSAN MOTOR CO., U.S.A.
