DTC P0452: EVAP Control System Pressure Sensor: Wiring Diagram

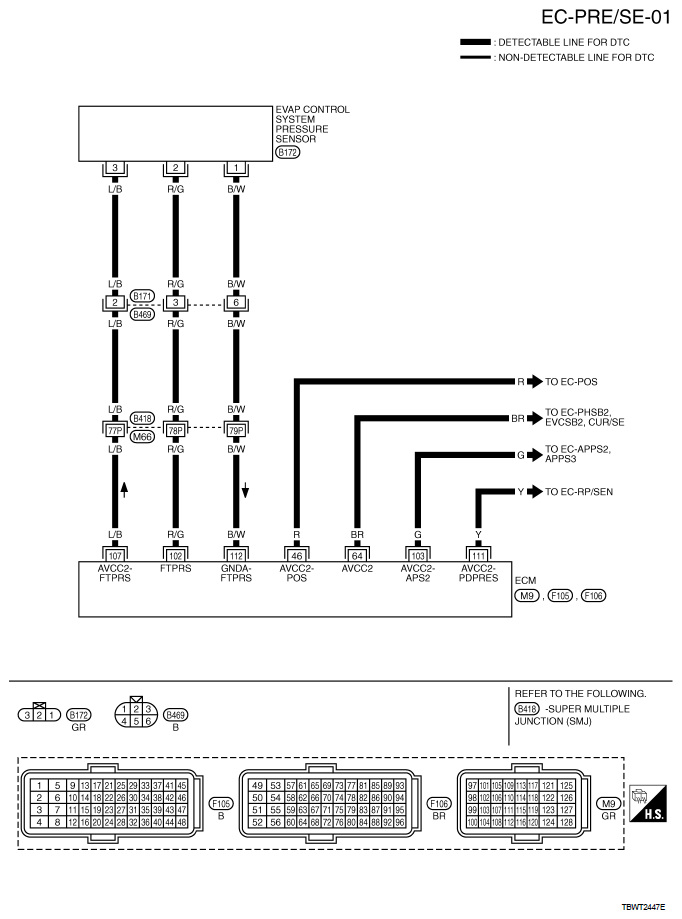

Fig 1: EC-PRE/SE-01 - Wiring Diagram
G06306673Courtesy of NISSAN MOTOR CO., U.S.A.
