DTC P1553: Battery Current Sensor: Wiring Diagram

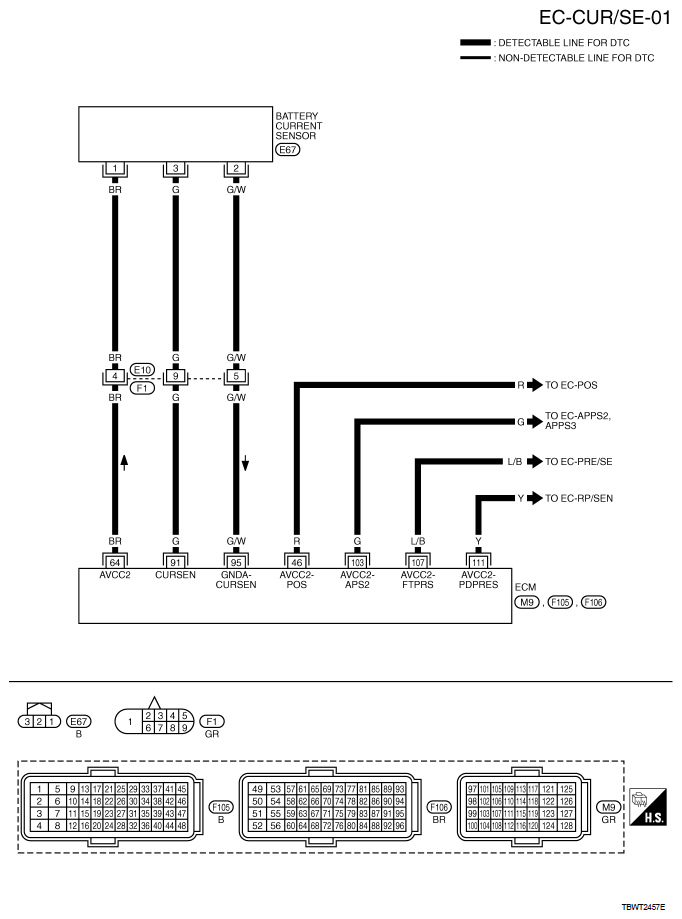

Fig 1: EC-CUR/SE-01 - Wiring Diagram

G06306739

Courtesy of NISSAN MOTOR CO., U.S.A.
