System - Engine Mechanical & Other

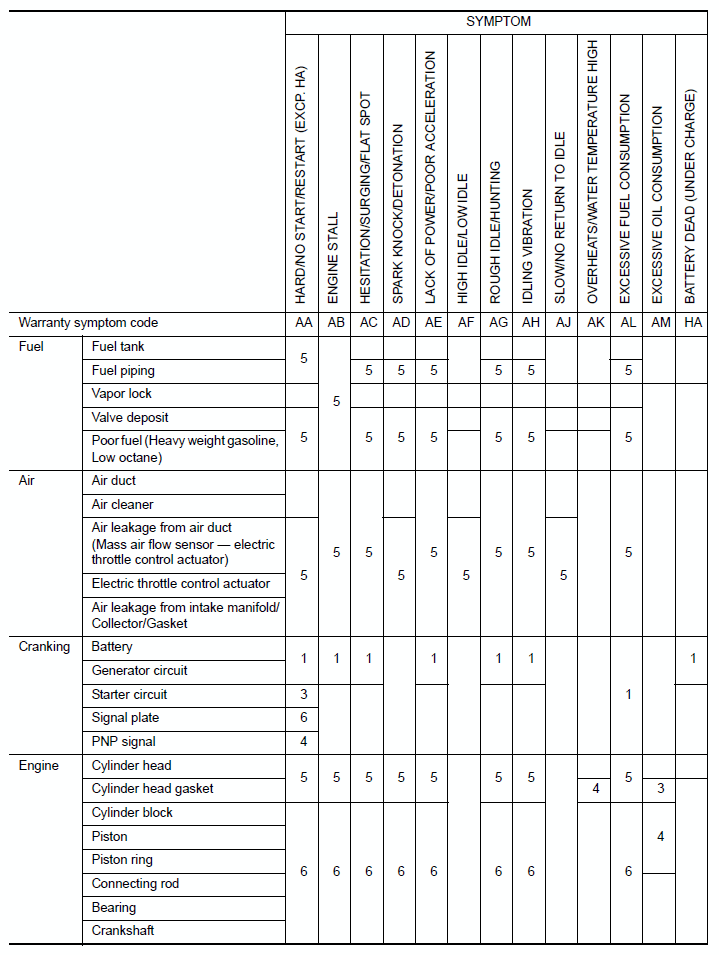

Fig 1: System - Engine Mechanical & Other (1 Of 2)
G06306886Courtesy of NISSAN MOTOR CO., U.S.A.

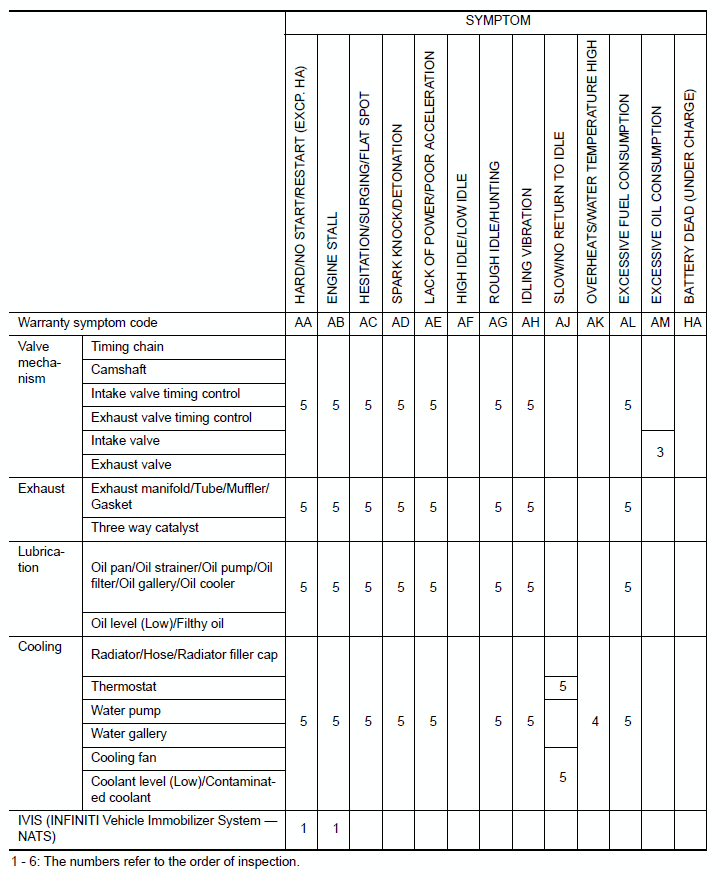

Fig 2: System - Engine Mechanical & Other (2 Of 2)
G06306887Courtesy of NISSAN MOTOR CO., U.S.A.
