System Diagram

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

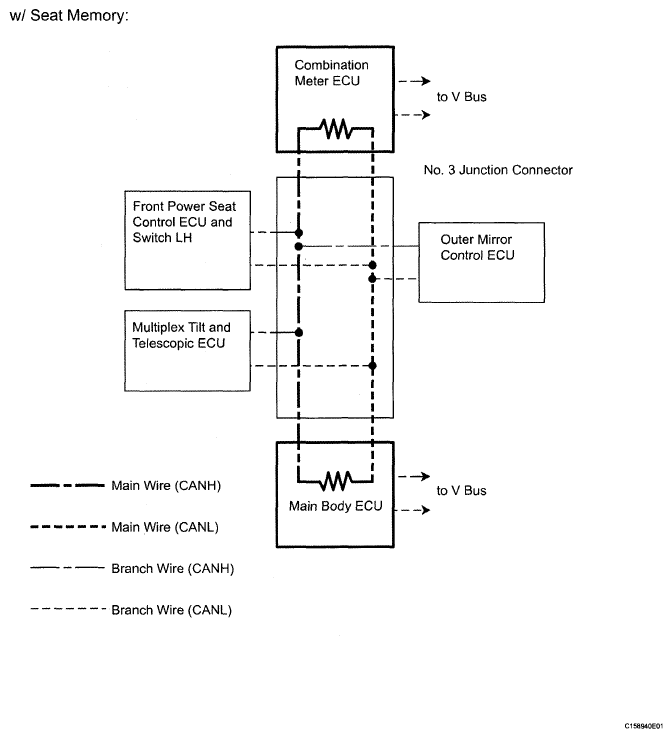

Fig 1: Identifying CAN Communication System Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

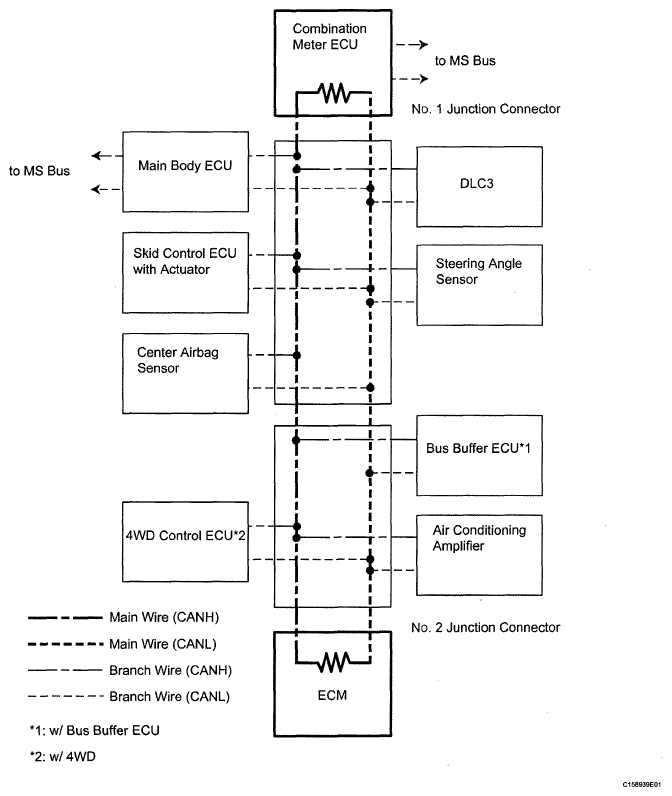

Fig 2: Identifying CAN Communication System Diagram (2 Of 2)

HINT:

The ECM uses the CAN communication system to perform DTC communication instead of the conventional communication line (SIL).
