CAN Communication Signal Table

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

Refer to HOW TO USE CAN COMMUNICATION SIGNAL TABLE for how to use CAN communication signal table.

NOTE: Refer to ABBREVIATION LIST for the abbreviations of the connecting units.

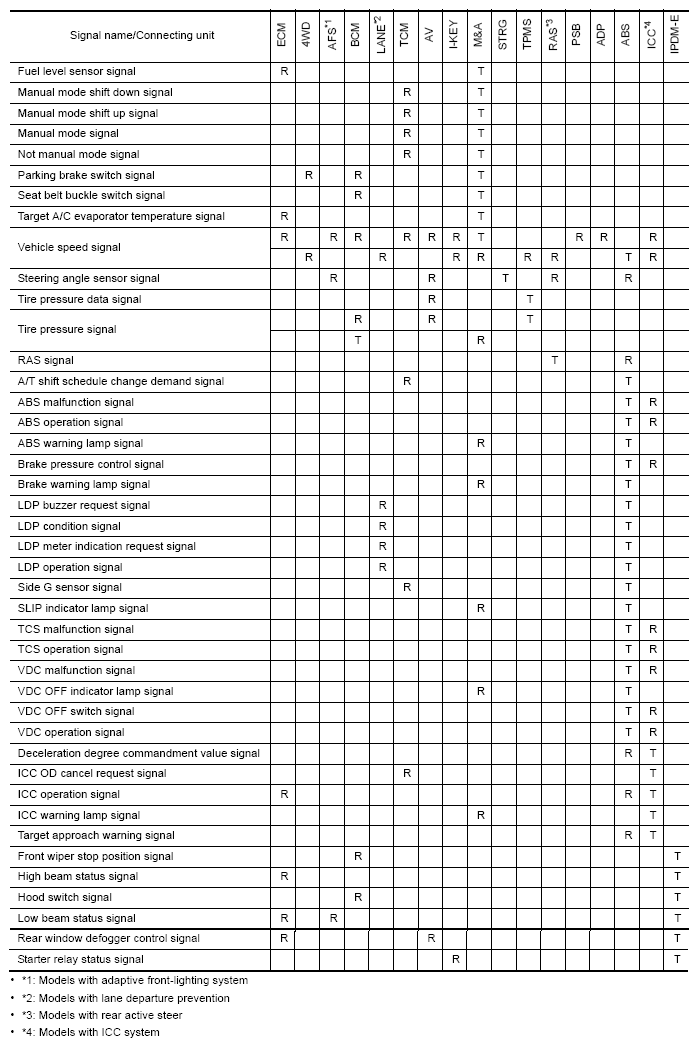

Fig 1: Identifying CAN Communication Signal Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

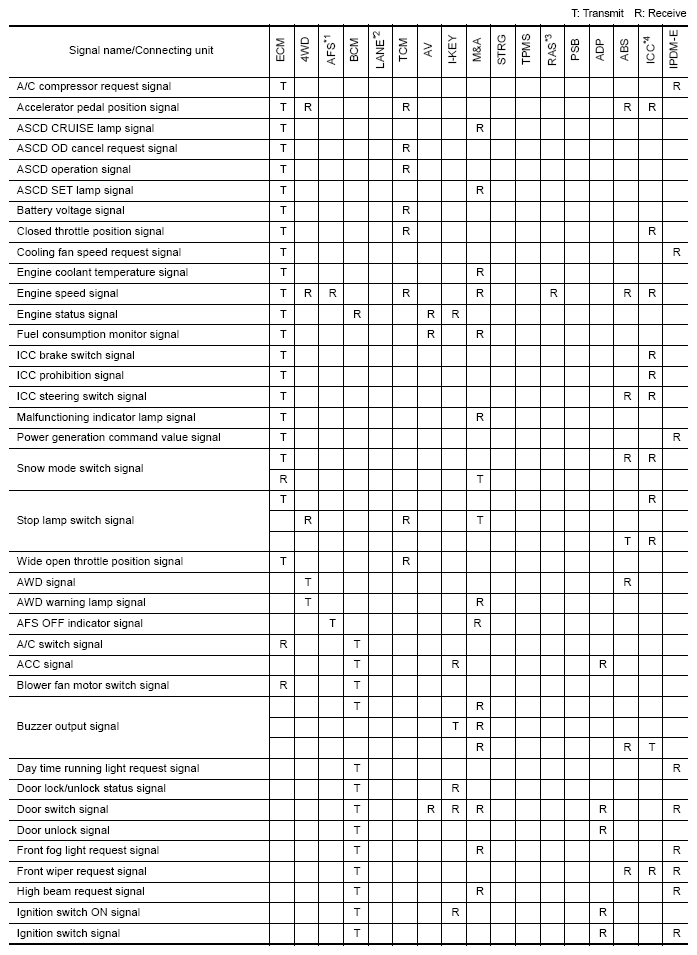

Fig 2: Identifying CAN Communication Signal Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

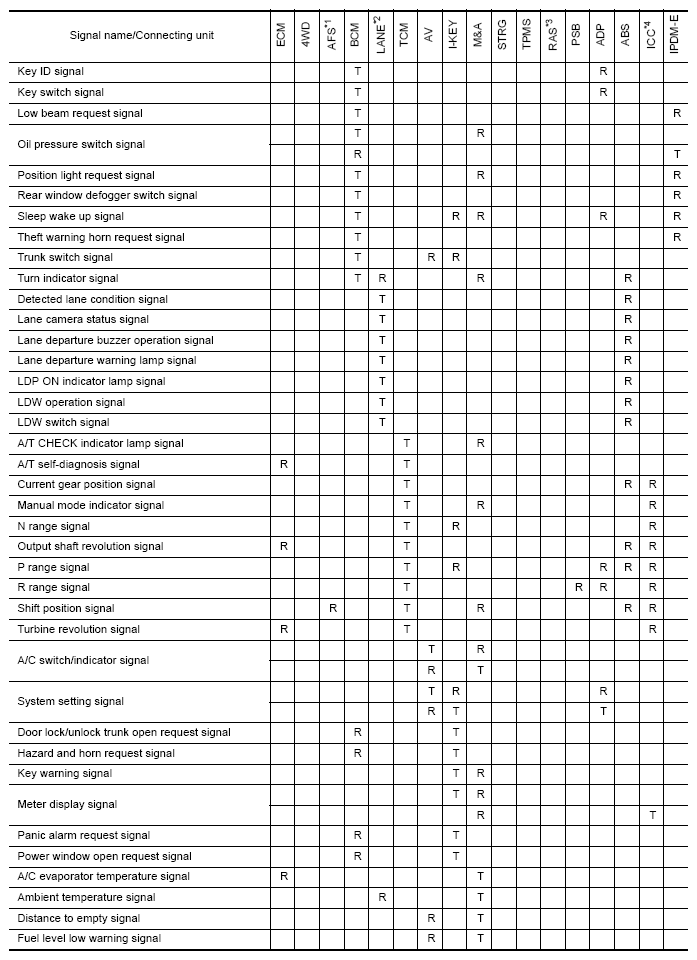

Fig 3: Identifying CAN Communication Signal Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
