Self-Diagnosis Mode

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

Start the self-diagnosis function and select "Self Diagnosis".
- Self-diagnosis subdivision screen is displayed, and the self-diagnosis mode starts.
- The bar graph visible on the center of the self-diagnosis subdivision screen indicates progress of the trouble diagnosis.

  Fig 1: Identifying Screen Display - Self Diagnosis
  Courtesy of NISSAN MOTOR CO., U.S.A.

Diagnosis results are displayed after the self-diagnosis is completed. The unit names and the connection lines are color-coded according to the diagnostic results.

DIAGNOSIS RESULTS TABLE

Diagnosis results	Unit	Connection line
Normal	Green	Green
Connection malfunction	Gray	Yellow
Unit malfunction ^Note	Red	Green

NOTE:

Only the control unit (AV control unit) is displayed in red.
Replace AV control unit if "Self-Diagnosis did not run because of a control unit malfunction" is indicated. The symptom is AV control unit internal error.

Refer to EXPLODED VIEW .

If multiple errors occur at the same time for a single unit, the screen switch colors are determined according to the following order of priority: red > gray.

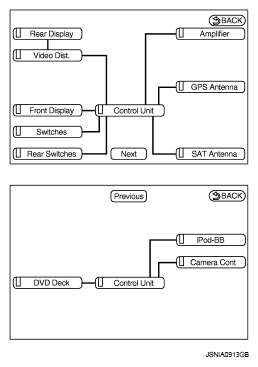

Fig 2: Identifying Screen Display - Self Diagnosis
Courtesy of NISSAN MOTOR CO., U.S.A.
The comments of the self-diagnosis results can be viewed with a component in the diagnosis result screen.

Fig 3: Identifying Screen Display - Self Diagnosis
Courtesy of NISSAN MOTOR CO., U.S.A.
