Speed Calibration

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

During normal driving, distance error caused by tire wear and tire pressure change is automatically adjusted for by the automatic distance correction function. This function, on the other hand, is for immediate adjustment, in cases such as driving with tire chain fitted on tires.

Fig 1: Identifying Screen Display - Speed Calibration

Courtesy of NISSAN MOTOR CO., U.S.A.

XM SAT SUBSCRIPTION STATUS

The XM NavTraffic subscription status can be checked.

Fig 2: Identifying Screen Display - XM SAT Subscription Status

Courtesy of NISSAN MOTOR CO., U.S.A.

Error History

The self-diagnosis results are judged depending on whether any error occurs from when "Self-diagnosis" is selected until the self-diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition SW is turned ON and then no error has occurred until the self-diagnosis start. Check the "Error Record" to detect any error that may have occurred before the self-diagnosis start because of this situation.

The error record displays the time and place of the most recent occurrence of that error. However, take note of the following points.

If there is a malfunction with the GPS antenna circuit board in the AV control unit, the correct date and time of occurrence may not be able to be displayed.
Place of the error occurrence is represented by the position of the current location mark at the time an error occurred. If current location mark has deviated from the correct position, then the place of the error occurrence cannot be located correctly.
The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending on the error item.

Count up method A

The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the condition is normal at a next IGN ON cycle.
The counter upper limit is 39. Any counts exceeding 39 are ignored. "The counter can be reset (no error record display) with the "Delete log" switch or CONSULT-III."

Count up method B

The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if the condition is normal at the next IGN ON cycle.

The counter upper limit is 50. Any counts exceeding 50 are ignored. "The counter can be reset (no error record display) with the "Delete log" switch or CONSULT-III."

ERROR HISTORY DISPLAY ITEM TABLE

Display type of occurrence frequency	Error history display item
Count up method A	CAN communication line, control unit (CAN), AV communication line, control unit (AV communication)
Count up method B	Other than the above

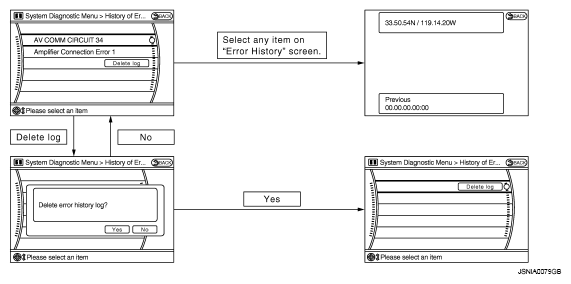

Fig 3: Identifying Screen Display - Self Diagnosis

Courtesy of NISSAN MOTOR CO., U.S.A.

Error item

Some error items may be displayed simultaneously according to the cause. If some error items are displayed simultaneously, the detection of the cause can be performed by the combination of display items

ERROR ITEM TABLE

Error item

Description

Possible malfunction factor/Action to take

CAN COMM CIRCUIT

CAN communication malfunction is detected.

Perform diagnosis with CONSULT-III, and then repair the malfunctioning parts according to the diagnosis results.
Refer to DIAGNOSIS PROCEDURE .

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detected.

Replace the AV control unit.

CONTROL UNIT (AV)

AV communication circuit initial diagnosis malfunction is detected.

FLASH-ROM Error Of Control Unit

AV control unit malfunction is detected.

Connection Of Gyro

XM SERIAL COMM Error

CAN Controller Memory Error

Bluetooth Module Connection Error

HDD CONN Error

HDD READ Error

HDD WRITE Error

HDD COMM Error

HDD ACCESS Error

DSP CONN Error

DSP COMM Error

Internal Communication Error

Malfunction is detected in AV control unit power supply and ground circuits.

Check AV control unit power supply and ground circuits. When detecting no malfunction in those components, replace AV control unit.

GPS Communication Error

GPS malfunction is detected.

An intermittent error caused by strong radio interference may be detected unless any symptom (GPS reception error, etc.) occurs.
Replace the AV control unit if the malfunction occurs constantly.

GPS ROM Error

GPS RAM Error

GPS RTC Error

Front Display Connection Error

When either one of the following items is detected:

front display unit power supply and ground circuits are malfunctioning.
serial communication circuits between AV control unit and front display unit are malfunctioning.
serial communication signal between AV control unit and front display unit is malfunctioning.

Front display unit power supply and ground circuits.
Serial communication circuits between AV control unit and front display unit.

GPS Antenna Error

GPS antenna connection malfunction is detected.

GPS antenna.

Rear Display Connection Error

When either one of the following items is detected:

rear display unit power supply and ground circuits are malfunctioning.
serial communication circuits between video distributor and rear display unit are malfunctioning.
serial communication signal between video distributor and rear display unit is malfunctioning.

Rear display unit power supply and ground circuits.
Serial communication circuits between video distributor and rear display unit.

Camera Control Unit Connection Error

Malfunction is detected in camera connection recognition circuit between AV control unit and camera control unit.

Camera-connection recognition circuit between AV control unit and camera control unit.

XM Antenna Connection Error

Satellite radio antenna connection malfunction is detected.

Satellite radio antenna feeder.
Satellite radio antenna.

AV COMM CIRCUIT
Internal Communication Error

Malfunction is detected in AV control unit power supply and ground circuits.

Check AV control unit power supply and ground circuits. When detecting no malfunction in those components, replace AV control unit.

AV COMM CIRCUIT
Switches Connection Error

When either one of the following items is detected:

multifunction switch power supply and ground circuits are malfunctioning.
AV communication signal between AV control unit and multifunction switch is malfunctioning.

Multifunction switch power supply and ground circuits.

AV COMM CIRCUIT
Rear SW Connection Error

When either one of the following items is detected:

Rear control switch power supply and ground circuits are malfunctioning.
AV communication signal between AV control unit and rear control switch is malfunctioning.

Rear control switch power supply and ground circuits.

AV COMM CIRCUIT
Video Distributor Connection Error

When either one of the following items is detected:

video distributor power supply and ground circuits are malfunctioning.
AV communication signal between AV control unit and video distributor is malfunctioning.

Video distributor power supply and ground circuits.

AV COMM CIRCUIT
DVD Deck Connection Error

When either one of the following items is detected:

DVD player power supply and ground circuits are malfunctioning.
AV communication signal between AV control unit and DVD player is malfunctioning.

DVD player power supply and ground circuits.

AV COMM CIRCUIT
Amplifier Connection Error

When either one of the following items is detected:

BOSE amp. power supply and ground circuits are malfunctioning.
AV communication signal between AV control unit and BOSE amp. is malfunctioning.

BOSE amp. power supply and ground circuits.

AV COMM CIRCUIT
Rearview Camera Connection Error

When either one of the following items is detected:

camera control unit power supply and ground circuits are malfunctioning.
AV communication signal between AV control unit and camera control unit is malfunctioning.

Camera control unit power supply and ground circuits.

AV COMM CIRCUIT
iPod Connection Error

When either one of the following items is detected:

iPod adapter power supply and ground circuits are malfunctioning.
AV communication circuits between camera control unit and iPod adapter are malfunctioning.
AV communication signal between AV control unit and iPod adapter is malfunctioning.

iPod adapter power supply and ground circuits.
AV communication circuits between camera control unit and iPod adapter.

AV COMM CIRCUIT
Rearview Camera Connection Error
iPod Connection Error

Malfunction is detected in AV communication circuits between BOSE amp. and camera control unit.

AV communication circuits between BOSE amp. and camera control unit.

AV COMM CIRCUIT
Amplifier Connection Error
Rearview Camera Connection Error
iPod Connection Error

When either one of the following items is detected:

AV communication circuits between DVD player and BOSE amp. are malfunctioning. (without rear control switch models)
AV communication circuits between rear control switch and BOSE amp. are malfunctioning. (with rear control switch models)

AV communication circuits between DVD player and BOSE amp. (without rear control switch models)
AV communication circuits between rear control switch and BOSE amp.

AV COMM CIRCUIT
Rear SW Connection Error
Amplifier Connection Error
Rearview Camera Connection Error
iPod Connection Error

Malfunction is detected in AV communication circuits between DVD player and rear control switch.

AV communication circuits between DVD player and rear control switch.

AV COMM CIRCUIT
Rear SW Connection Error⁽¹⁾
DVD Deck Connection Error
Amplifier Connection Error
Rearview Camera Connection Error
iPod Connection Error

Malfunction is detected in AV communication circuits between video distributor and DVD player.

AV communication circuits between video distributor and DVD player.

AV COMM CIRCUIT
Rear SW Connection Error⁽¹⁾
Video Distributor Connection Error
DVD Deck Connection Error
Amplifier Connection Error
Rearview Camera Connection Error
iPod Connection Error

Malfunction is detected in AV communication circuits between multifunction switch and video distributor.

AV communication circuits between multifunction switch and video distributor.

AV COMM CIRCUIT
Rear SW Connection Error⁽¹⁾
Switches Connection Error
Video Distributor Connection Error
DVD Deck Connection Error
Amplifier Connection Error
Rearview Camera Connection Error
iPod Connection Error

Malfunction is detected in AV communication circuits between AV control unit and multifunction switch.

AV communication circuits between AV control unit and multifunction switch.

AV COMM CIRCUIT
Rear SW Connection Error⁽¹⁾
Internal Communication Error
Switches Connection Error
Video Distributor Connection Error
DVD Deck Connection Error
Amplifier Connection Error
Rearview Camera Connection Error
iPod Connection Error

Malfunction is detected in AV communication circuits.

Check and repair the short circuit in AV communication circuits.

⁽¹⁾	non-equipped item is not displayed.

Vehicle CAN Diagnosis

CAN communication status and error counter is displayed.
The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.

The error counter is erased if "Reset" is pressed.

Fig 4: Identifying Screen Display - Vehicle CAN Diagnosis

Courtesy of NISSAN MOTOR CO., U.S.A.

MALFUNCTION COUNTER TABLE

Items	Display (Current)	Malfunction counter (Past)
Tx (HVAC)	OK / UNKWN	OK / 0 - 39
Rx (ECM)	OK / UNKWN	OK / 0 - 39
Rx (Cluster)	OK / UNKWN	OK / 0 - 39
Rx (BCM)	OK / UNKWN	OK / 0 - 39
Rx (HVAC)	OK / UNKWN	OK / 0 - 39
Rx (USM)	OK / UNKWN	OK / 0 - 39
Rx (TPMS)	OK / UNKWN	OK / 0 - 39
Rx (STRG)	OK / UNKWN	OK / 0 - 39

AV COMM Diagnosis

Displays the communication status between AV control unit (master unit) and each unit.
The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.

The error counter is erased if "Reset" is pressed.

Fig 5: Identifying Screen Display - AV COMM Diagnosis

Courtesy of NISSAN MOTOR CO., U.S.A.

ITEM STATUS TABLE

Items	Status (Current)	Counter (Past)
C Tx (ITM-Primary SW)	OK / UNKWN	OK / 0 - 39
C Rx (Primary SW-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (STRG SW-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (Rr Seat SW-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (Audio-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (Amp-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (Rear Camera-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (DVD-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (XM-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (iPod-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (Video Dist-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (Remote Cont-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (Amp-Audio)	OK / UNKWN	OK / 0 - 39
C Rx (DVD-Audio)	OK / UNKWN	OK / 0 - 39
C Rx (iPod-Audio)	OK / UNKWN	OK / 0 - 39
C Tx (Audio-ITM)	OK / UNKWN	OK / 0 - 39

NOTE:

Any units with "-" displayed have no history of vehicle connection.
"STRG SW", "Amp" "XM" indicate the same status as "Audio".

Hands-Free Phone

The hands-free phone reception volume adjustment, microphone and speaker test, and memory erase functions are also available.

Fig 6: Identifying Screen Display - Hands-Free Phone

Courtesy of NISSAN MOTOR CO., U.S.A.

Camera Cont.

The two functions of "Connection Confirmation" and "Adjust Offset of Rear View Camera" are available. CONNECTION CONFIRMATION

The steering angle sensor, reverse signal and vehicle speed sensor can be inspected.

Fig 7: Identifying Screen Display - Camera Cont

Courtesy of NISSAN MOTOR CO., U.S.A.

VEHICLE STATUS TABLE

Diagnosis item	Display	Vehicle status
Steer. Angle Sensor	ON	When steering the vehicle with ignition switch ON (remains ON until connection mode is stopped when it is turned ON).
	OFF	Ignition switch at ACC. No steering with ignition switch ON.
	-	Malfunction detected in camera connection recognition signal.
Reverse Sensor	ON	Selector lever is in "R" with ignition switch ON.
	OFF	Ignition switch at ACC. Selector lever is in position other than "R" with ignition switch ON.
	-	Malfunction detected in camera-connection recognition signal.
Vehicle Speed Sensor	ON	Vehicle speed is more than 0 km/h (0 MPH) with ignition switch ON.
	OFF	Ignition switch at ACC. Vehicle speed is 0 km/h (0 MPH) with ignition switch ON.
	-	Malfunction detected in camera connection recognition signal.
Side view Switch	-	Not used.

ADJUST OFFSET OF REAR VIEW CAMERA

Use this mode to adjust the guide line display position of the rearview monitor if necessary after removing the rear view monitor camera.

Fig 8: Identifying Screen Display - Adjust Offset Of Rear View Camera

Courtesy of NISSAN MOTOR CO., U.S.A.

Bluetooth

Confirm / Change Passkey

The passkey of Bluetooth can be confirmed and changed.
The passkey can be changed by four digits within 0 to 9.

Fig 9: Identifying Screen Display - Bluetooth
Courtesy of NISSAN MOTOR CO., U.S.A.

Confirm/Change Device Name

The device name of Bluetooth can be confirmed and changed.
The device name can be changed by sixteen digits within A to Z (small character can be used) and - (hyphen).

Fig 10: Identifying Screen Display - Confirm/Change Device Name
Courtesy of NISSAN MOTOR CO., U.S.A.

SAT

Change Channel
- Any necessary channels required to receive traffic information from the satellite radio system can be set.

  Fig 11: Identifying Screen Display - Change Channel
  Courtesy of NISSAN MOTOR CO., U.S.A.
Change Application ID
- Any application ID'-s required to receive traffic information from the satellite radio system can be set.

  Fig 12: Identifying Screen Display - Change Application ID
  Courtesy of NISSAN MOTOR CO., U.S.A.

Delete Unit Connection Log

Deletes any unit connection records and error records from the AV control unit memory. (Clear the records of the unit that has been removed.)

Fig 13: Identifying Screen Display - Delete Unit Connection Log

Courtesy of NISSAN MOTOR CO., U.S.A.

Initialize Settings

Deletes data stored in HDD.

Fig 14: Identifying Screen Display - Initialize Settings

Courtesy of NISSAN MOTOR CO., U.S.A.
