Reference Value
WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.
VALUES ON THE DIAGNOSIS TOOL
CONSULT-III MONITOR ITEM
CONSULT-III MONITOR ITEM
| Display Item | Display | Vehicle status | Remarks |
|---|---|---|---|
| VHCL SPD SIG | On | Vehicle speed >0 km/h (0 MPH) | Changes in indication may be delayed. This is normal. |
| Off | Vehicle speed =0 km/h (0 MPH) | ||
| PKB SIG | On | Parking brake is applied. | Changes in indication may be delayed. This is normal. |
| Off | Parking brake is released. | ||
| ILLUM SIG | On | Light switch ON. | - |
| Off | Light switch OFF. | ||
| IGN SIG | On | Ignition switch ON. | - |
| Off | Ignition switch in ACC position. | ||
| REV SIG | On | Shift the selector lever to "R" position. | Changes in indication may be delayed. This is normal. |
| Off | Shift the selector lever other than "R" position. |

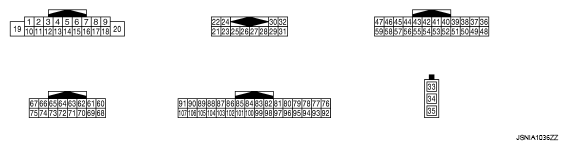

TERMINAL LAYOUT
PHYSICAL VALUES
CONNECTOR TERMINALS REFERENCE TABLE
| Terminal (Wire color) |
Description | Condition | Reference value (Approx.) | |||
|---|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | |||
| 2 (P) | 3 (W) | Sound signal front LH | Output | Ignition switch ON | Audio sound output. | |
| 4 (LG) | 5 (B/Y) | Sound signal rear LH | Output | Ignition switch ON | Audio sound output. | |
| 6 (BR) | 15 (G) | Steering switch signal A | Input | Ignition switch ON | Keep pressing SOURCE switch. | 0 V |
| Keep pressing ↑ witch. | 0.7 V | |||||
| Keep pressing ↓ switch. | 1.3 V | |||||
| Except for above. | 3.3 V | |||||
| 7 (V) | Ground | ACC power supply | Input | Ignition switch ACC | - | Battery voltage |
| 9 (LG) | Ground | Illumination signal | Input | Ignition switch OFF | Lighting switch is OFF. | 0 V |
| Lighting switch is ON. | 12 V | |||||
| 11 (BR) | 12 (R) | Sound signal front RH | Output | Ignition switch ON | Audio sound output. | |
| 13 (O) | 14 (B/P) | Sound signal rear RH | Output | Ignition switch ON | Audio sound output. | |
| 15 (G) | Ground | Steering switch signal ground | - | Ignition switch ON | - | 0 V |
| 16 (O) | 15 (G) | Steering switch signal B | Input | Ignition switch ON | Keep pressing VOL DOWN switch. | 0 V |
| Keep pressing VOL UP switch. | 0.7 V | |||||
| Keep pressing hands free switch. | 1.3 V | |||||
| Keep pressing telephone switch. | 2.2 V | |||||
| Except for above. | 3.3 V | |||||
| 18 (R/Y) | Ground | Illumination control signal | Input | Ignition switch ON | Illumination control switch is operated by lighting switch in ON position. | Change between approx. 0 V and approx. 12 V |
| 19 (Y) | Ground | Battery power supply | Input | Ignition switch OFF | - | Battery voltage |
| 20 (B) | Ground | Ground | - | Ignition switch ON | - | 0 V |
| 22 (R) | 21 (G) | Satellite radio sound signal LH | Input | Ignition switch ON | When satellite radio mode is selected. | |
| 24 (B) | 23 (W) | Satellite radio sound signal RH | Input | Ignition switch ON | When satellite radio mode is selected. | |
| 25 | - | Shield | - | - | - | - |
| 26 | - | Shield | - | - | - | - |
| 28 (B) | Ground | Request signal (SAT→CONT) | Input | Ignition switch ON | When satellite radio mode is selected. | |
| 29 (R) | Ground | Communication signal (SAT→CONT) | Input | Ignition switch ON | When satellite radio mode is selected. | |
| 30 (W) | Ground | Communication signal (CONT→SAT) | Output | Ignition switch ON | When satellite radio mode is selected. | |
| 33 | Ground | Antenna amp. ON signal | Output | Ignition switch ACC | - | 12 V |
| 34 | - | AM-FM main | Input | - | - | - |
| 35 | - | FM sub | Input | - | - | - |
| 36 (W) | 37 (G) | AUX image signal | Output | Ignition switch ON | When AUX image is displayed. | |
| 37 (G) | Ground | AUX image ground | - | Ignition switch ON | - | 0 V |
| 38 (Y) | Ground | RGB image signal (B: blue) | Output | Ignition switch ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |
| 39 (L) | Ground | RGB image signal (G: green) | Output | Ignition switch ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |
| 40 (G) | Ground | RGB image signal (R: red) | Output | Ignition switch ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |
| 41 (B) | Ground | RGB synchronizing signal | Output | Ignition switch ON | - | |
| 42 | - | Shield | - | - | - | - |
| 43 (G) | Ground | RGB area (YS) signal | Output | Ignition switch ON | When RGB image is displayed. | 5 V |
| When AUX image is displayed. | ||||||
| 44 (W/L) | Ground | Communication signal (DISP→CONT) | Input | Ignition switch ON | When adjusting display brightness. | |
| 45 (W) | Ground | Horizontal synchronizing (HP) signal | Input | Ignition switch ON | - | |
| 46 (O) | Ground | Signal GND | - | Ignition switch ON | - | 0 V |
| 47 (L) | Ground | Signal VCC | Output | Ignition switch ACC | - | 9 V |
| 49 | - | Shield | - | - | - | - |
| 50 | - | Shield | - | - | - | - |
| 55 | - | Shield | - | - | - | - |
| 56 (O/L) | Ground | Communication signal (CONT→DISP) | Output | Ignition switch ON | When adjusting display brightness. | |
| 57 (R) | Ground | Vertical synchronizing (VP) signal | Input | Ignition switch ON | - | |
| 58 (W/R) | Ground | Inverter GND | - | Ignition switch ON | - | 0 V |
| 59 (Y) | Ground | Inverter VCC | Output | Ignition switch ACC | - | 9 V |
| 66 (LG) | 74 (V) | AUX image signal | Input | Ignition switch ON | At AUX image is displayed. | |
| 73 | - | Shield | - | - | - | - |
| 74 (V) | Ground | AUX image signal ground | - | Ignition switch ON | - | 0 V |
| 80 (L) | 79 (P) | TEL voice signal | Input | Ignition switch ON | During voice guide output with the hands free switch pressed. | |
| 81 | - | Shield | - | - | - | - |
| 85 (B) | Ground | Ground | - | Ignition switch ON | - | 0 V |
| 86 (L) | - | CAN-H | Input/Output | - | - | - |
| 87 (P) | - | CAN-L | Input/Output | - | - | - |
| 88 (BR) | - | AV communication signal (H) | Input/Output | - | - | - |
| 89 (B/R) | - | AV communication signal (L) | Input/Output | - | - | - |
| 90 (W) | - | AV communication signal (H) | Input/Output | - | - | - |
| 91 (R) | - | AV communication signal (L) | Input/Output | - | - | - |
| 95 (R) | 97 (B) | AUX sound signal RH | Input | Ignition switch ON | When AUX mode is selected. | |
| 96 (BR) | 97 (B) | AUX sound signal LH | Input | Ignition switch ON | When AUX mode is selected. | |
| 97 (B) | Ground | AUX sound signal ground | - | Ignition switch ON | - | 0 V |
| 104 (YG) | Ground | Ignition signal | Input | Ignition switch ON | - | Battery voltage |
| 105 (O) | Ground | Reverse signal | Input | Ignition switch ON | R position. | 12 V |
| Other than R position. | 0 V | |||||
| 106 (P) | Ground | Parking brake signal | Input | Ignition switch ON | Parking brake ON. | 0 V |
| Parking brake OFF. | ||||||
| 107 (G) | Ground | Vehicle speed signal (8-pulse) | Input | Ignition switch ON | When vehicle speed is approx. 40 km/h (25 MPH). | |
