Schematic - Base Audio System

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

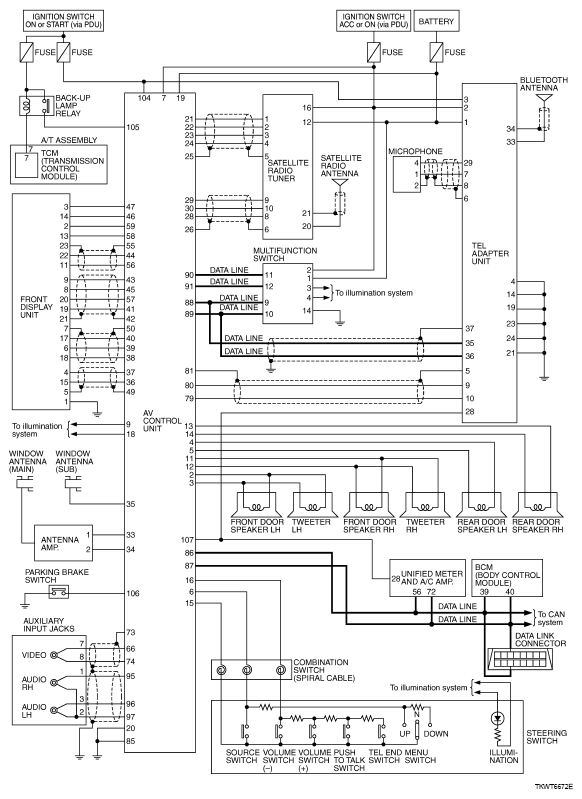

Fig 1: Identifying Base Audio System - Schematic (Without Navigation)
G05722128Courtesy of NISSAN MOTOR CO., U.S.A.
