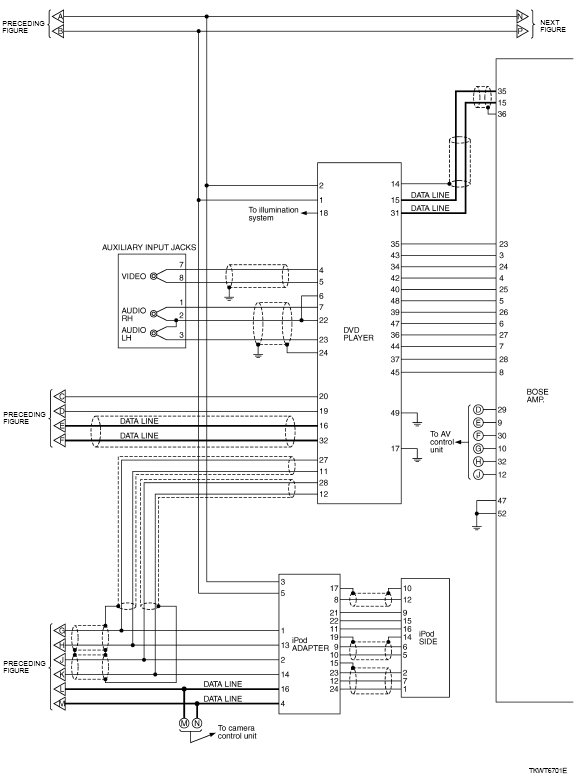

Fig 1: Identifying Bose Surround Audio 5.1ch System (With Navigation) - Schematic (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

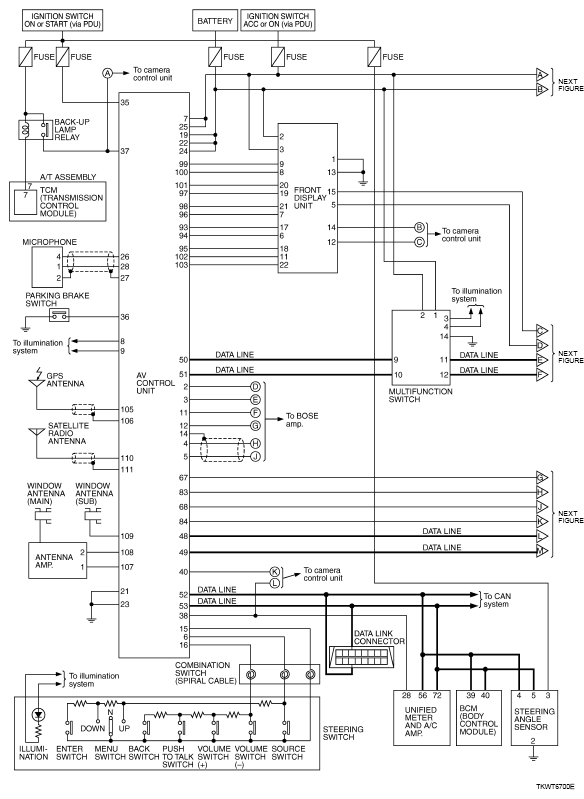

Fig 2: Identifying Bose Surround Audio 5.1ch System (With Navigation) - Schematic (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

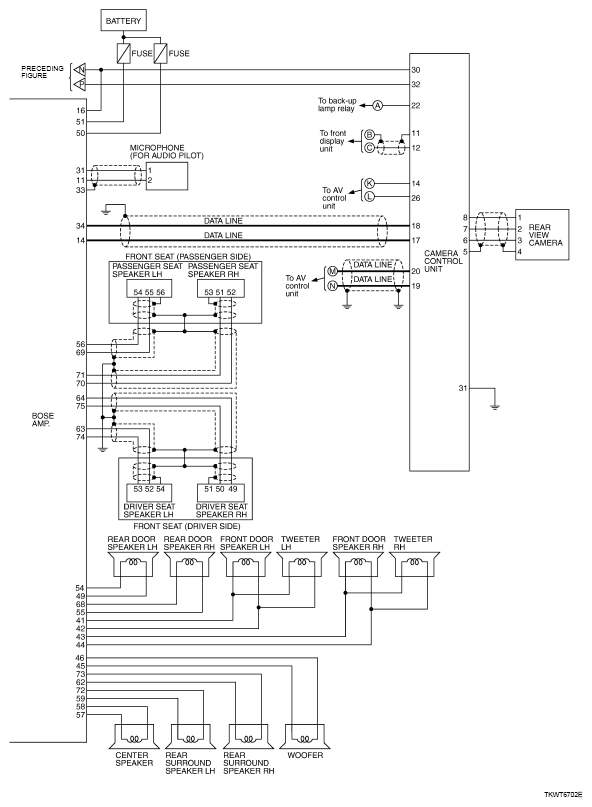

Fig 3: Identifying Bose Surround Audio 5.1ch System (With Navigation) - Schematic (3 Of 3)
