Diagnosis Description

MULTIFUNCTION SWITCH AND PRESET SWITCH SELF-DIAGNOSIS FUNCTION

The ON/OFF operation (continuity) of each switch in the multifunction switch and preset switch can be checked.

Self-Diagnosis Mode

• Press the "BACK (A)" switch and the "↑ (B)" switch of the 8-direction switches within 10 seconds after turning the ignition switch from OFF to ACC and hold them for 3 seconds or more. Then the buzzer sounds, all indicators of the preset switch illuminate, and the self-diagnosis mode starts.
• The continuity of each switch at the ON position can be checked by pressing the switch. The buzzer sounds if the switch is normal.
  NOTE: The hazard switch and CD eject switch cannot be checked.
  Fig 1: Identifying BACK Switch

  Courtesy of NISSAN MOTOR CO., U.S.A.

Finishing Self-Diagnosis Mode

Self-diagnosis mode is canceled when turning the ignition switch OFF.

MULTI AV SYSTEM ON BOARD DIAGNOSIS FUNCTION

• The AV control unit diagnosis function starts up with multifunction switch operation and the AV control unit performs a diagnosis for each unit in the system during the on board diagnosis.
• Perform a CONSULT-III diagnosis if the on board diagnosis does not start, e.g., the screen does not display anything, the multifunction switch does not function, etc.

ON BOARD DIAGNOSIS

Description

• The trouble diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and a confirmation/adjustment mode for operating manually.
• The self-diagnosis mode performs diagnoses on the AV control unit, connections between system components as well as connections between AV control unit and GPS antenna and between AV control unit and satellite radio antenna. Then it displays the diagnosis results on the display.
• The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and set values, as well as to monitor the system error records and system communication status. The checking, modifying or adjusting generally require human intervention and judgment (the system cannot make judgment automatically).

On board diagnosis item

Mode			Description
Self-Diagnosis			AV control unit diagnosis. Diagnoses the connections across system components, between AV control unit and GPS antenna and between AV control unit and satellite radio antenna.
Confirmation/Adjustment	Display Diagnosis		The following check functions are available: color tone check by color bar display, light and shade check by gray scale display and touch panel calibration response check.
	Vehicle Signals		Diagnosis of signals can be performed for vehicle speed, parking brake, lights, ignition switch, and reverse.
	Speaker Test		The connection of a speaker can be confirmed by test tone.
	Climate Control		Start auto air conditioner system self-diagnosis.
	Navigation	Steering Angle Adjustment	When there is a difference between the actual turning angle and the vehicle mark turning angle, it can be adjusted.
		Speed Calibration	When there is a difference between the current location mark and the actual location, it can be adjusted.
		XM SAT Subscription Status	The XM NavTraffic subscription status can be checked.
	Error History		The system malfunction and the frequency when occurring in the past are displayed. When the malfunctioning item is selected, the time and place that the selected malfunction last occurred are displayed.
	Vehicle CAN Diagnosis		The transmitting/receiving of CAN communication can be monitored.
	AV COMM Diagnosis		The communication condition of each unit of Multi AV system can be monitored.
	Handsfree Phone		The received volume adjustment of hands-free phone, microphone speaker check, and erase memory can be performed.
	Camera Cont.		The signal connected to camera control unit can be checked and the guiding line position that overlaps rear view camera image can be adjusted.
	Bluetooth		The passkey and the device name can be checked and changed.
	SAT	Change Channel	Any necessary channels required to receive traffic information from the satellite radio system can be set.
		Change Application ID	Any application ID's required to receive traffic information from the satellite radio system can be set.
		Diag	Not used.
	Delete Unit Connection Log		Erase the connection history of unit and error history.
	Initialize Settings		Initializes the AV control unit memory.

STARTING PROCEDURE

1. Start the engine.
2. Turn the audio system OFF.
3. While pressing the "SETTING" button, turn the volume control dial clockwise or counterclockwise for 40 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.)
   • Shifting from current screen to previous screen is performed by pressing "BACK" button.
     Fig 2: Turning Volume Control Dial Clockwise Or Counterclockwise

     Courtesy of NISSAN MOTOR CO., U.S.A.
4. The trouble diagnosis initial screen is displayed, and then the items of "Self Diagnosis" and "Confirmation/Adjustment" can be selected.
   Fig 3: Identifying Screen Display - Self Diagnosis & Confirmation/Adjustment

   Courtesy of NISSAN MOTOR CO., U.S.A.

SELF-DIAGNOSIS MODE

1. Start the self-diagnosis function and select "Self Diagnosis".
   • Self-diagnosis subdivision screen is displayed, and the self-diagnosis mode starts.
   • The bar graph visible on the center of the self-diagnosis subdivision screen indicates progress of the trouble diagnosis.
     Fig 4: Identifying Screen Display - Progress Of Trouble Diagnosis

     Courtesy of NISSAN MOTOR CO., U.S.A.
2. Diagnosis results are displayed after the self-diagnosis is completed. The unit names and the connection lines are color-coded according to the diagnostic results.
   DIAGNOSIS RESULTS



   Diagnosis results	Unit	Connection line
   Normal	Green	Green
   Connection malfunction	Gray	Yellow
   Unit malfunction Note	Red	Green

   NOTE:

   • Only the control unit (AV control unit) is displayed in red.
   • Replace AV control unit if "Self-Diagnosis did not run because of a control unit malfunction" is indicated. The symptom is AV control unit internal error. Refer to EXPLODED VIEW  .

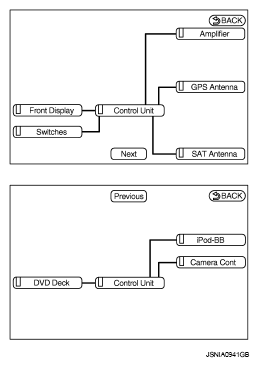

   Fig 5: Identifying Multi AV System Display - Diagnosis Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.

• If multiple errors occur at the same time for a single unit, the screen switch colors are determined according to the following order of priority: red > gray.
• The comments of the self-diagnosis results can be viewed with a component in the diagnosis result screen.
  Fig 6: Identifying Multi AV System Display - Diagnosis Result Screen

  Courtesy of NISSAN MOTOR CO., U.S.A.

SELF-DIAGNOSIS RESULTS

Check the applicable display at the following table, and then repair the malfunctioning parts.

Diagnosis results	Detection logic	Possible malfunction location/Action to take
Control unit unit: red NOTE: When a control unit malfunction is detected (red in unit display), connection malfunctions with other connection unit may be displayed.	Malfunction is detected in AV control unit power supply and ground circuits.	Check AV control unit power supply and ground circuits. When detecting no malfunction in those components, replace AV control unit.
"Self-Diagnosis did not run because of a control unit malfunction"
Front Display unit: gray connection line: yellow	When either one of the following items is detected: serial communication circuits between AV control unit and front display unit are malfunctioning. serial communication signal between AV control unit and front display unit is malfunctioning.	Serial communication circuits between AV control unit and front display unit.
DVD Deck unit: gray connection line: yellow	When either one of the following items is detected: DVD player power supply and ground circuits are malfunctioning. AV communication signal between AV control unit and DVD player is malfunctioning.	DVD player power supply and ground circuits.
Amplifier unit: gray connection line: yellow	When either one of the following items is detected: BOSE amp. power supply and ground circuits are malfunctioning. AV communication signal between AV control unit and BOSE amp. is malfunctioning.	BOSE amp. power supply and ground circuits.
Camera Cont. unit: gray connection line: yellow	Malfunction is detected in Camera connection recognition signal circuit.	Camera-connection recognition signal circuit.
iPod-BB unit: gray connection line: yellow	When either one of the following items is detected: iPod adapter power supply and ground circuits are malfunctioning. AV communication circuits between camera control unit and iPod adapter are malfunctioning. AV communication circuits between BOSE amp. and camera control unit are malfunctioning. AV communication signal between AV control unit and iPod adapter is malfunctioning.	iPod adapter power supply and ground circuits. AV communication circuits between BOSE amp. and camera control unit. AV communication circuits between camera control unit and iPod adapter.
GPS Antenna unit: gray connection line: yellow	GPS antenna connection malfunction is detected.	GPS antenna.
SAT Antenna unit: gray connection line: yellow	Satellite radio antenna connection malfunction is detected.	Satellite radio antenna feeder. Satellite radio antenna.
Amplifier and iPod-BB unit: gray connection line: yellow	When either one of the following items is detected: AV communication circuits between multifunction switch and BOSE amp. are malfunctioning. (without DVD player models) AV communication circuits between DVD player and BOSE amp. are malfunctioning. (with DVD player models)	AV communication circuits between multifunction switch and BOSE amp. (without DVD player models) AV communication circuits between DVD player and BOSE amp. (with DVD player models)
Amplifier, iPod-BB and DVD Deck unit: gray connection line: yellow	Malfunction is detected in AV communication circuits between multifunction switch and DVD player.	AV communication circuits between multifunction switch and DVD player.

CONFIRMATION/ADJUSTMENT MODE

1. Start the diagnosis function and select "Confirmation/Adjustment". The confirmation/adjustment mode indicates where each item can be checked or adjusted.
2. Select each switch on the "Confirmation/Adjustment Mode" screen to display the relevant trouble diagnosis screen. Press the "BACK" switch to return to the initial Confirmation/Adjustment Mode screen.
   Fig 7: Identifying Multi AV System Display - Relevant Trouble Diagnosis Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.

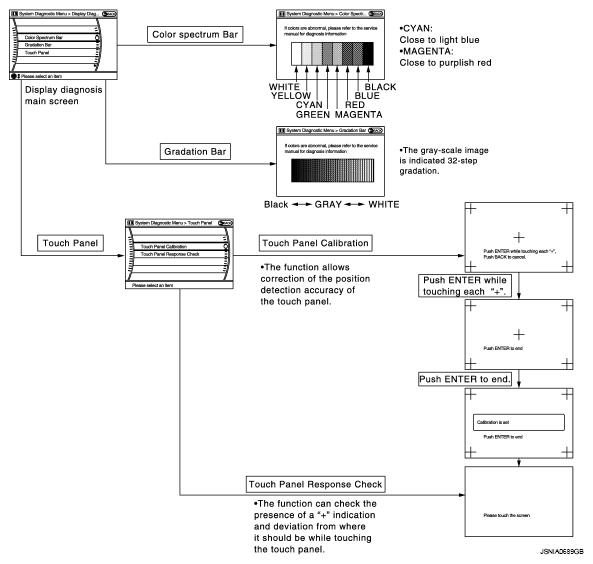

Display Diagnosis

The tint of the color bar indication is as per the following list if RGB signal error is detected.

R (red) signal error: Light blue (Cyan) tint

G (green) signal error: Purple (Magenta) tint

B (blue) signal error: Yellow tint

Vehicle Signals

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

Diagnosis item	Display	Vehicle status	Remarks
Vehicle speed	ON	Vehicle speed > 0 km/h (0 MPH)	Changes in indication may be delayed. This is normal.
	OFF	Vehicle speed = 0 km/h (0 MPH)
Parking brake	ON	Parking brake is applied.
	OFF	Parking brake is released.
Lights	ON	Light switch ON.	-
	OFF	Light switch OFF.
Ignition	ON	Ignition switch ON.	-
	OFF	Ignition switch in ACC position.
Reverse	ON	Shift the selector lever to "R" position.	Changes in indication may be delayed. This is normal.
	OFF	Shift the selector lever other than "R" position.

Speaker Test

Select "SPEAKER DIAGNOSIS" to display the Speaker Diagnosis screen. Press "START and NEXT" to generate a test tone in a speaker. Press "Start" to generate a test tone in the next speaker. Press "End" to stop the test tones.

Front tweeter: 3 kHz

Front door speaker: 300 Hz

Rear door speaker: 1 kHz

Rear surround speaker: 1 kHz

Center speaker: 1 kHz

Woofer: 100 Hz

Seat speaker: 1 kHz

Climate Control

Refer to "HEATER & COOLING UNIT ASSEMBLY " for details.

Navigation

STEERING ANGLE ADJUSTMENT

The steering angle output value detected with the gyroscope is adjusted.

SPEED CALIBRATION

During normal driving, distance error caused by tire wear and tire pressure change is automatically adjusted for by the automatic distance correction function. This function, on the other hand, is for immediate adjustment, in cases such as driving with tire chain fitted on tires.

XM SAT SUBSCRIPTION STATUS

The XM NavTraffic subscription status can be checked.

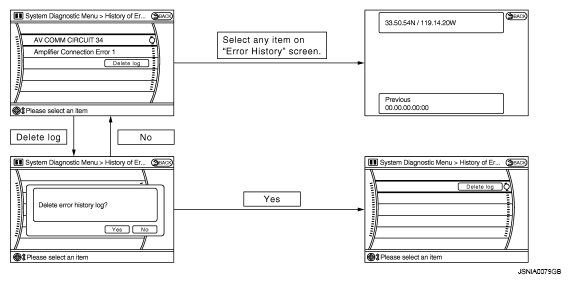

Error History

The self-diagnosis results are judged depending on whether any error occurs from when "Self-diagnosis" is selected until the self-diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition SW is turned ON and then no error has occurred until the self-diagnosis start. Check the "Error Record" to detect any error that may have occurred before the self-diagnosis start because of this situation.

The error record displays the time and place of the most recent occurrence of that error. However, take note of the following points.

• If there is a malfunction with the GPS antenna circuit board in the AV control unit, the correct date and time of occurrence may not be able to be displayed.
• Place of the error occurrence is represented by the position of the current location mark at the time an error occurred. If current location mark has deviated from the correct position, then the place of the error occurrence cannot be located correctly.
• The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending on the error item.

Count up method A

• The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the condition is normal at a next IGN ON cycle.
• The counter upper limit is 39. Any counts exceeding 39 are ignored." The counter can be reset (no error record display) with the "Delete log" switch or CONSULT-III."

Count up method B

• The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if the condition is normal at the next IGN ON cycle.
• The counter upper limit is 50. Any counts exceeding 50 are ignored. "The counter can be reset (no error record display) with the "Delete log" switch or CONSULT-III."

Display type of occurrence frequency	Error history display item
Count up method A	CAN communication line, control unit (CAN), AV communication line, control unit (AV communication)
Count up method B	Other than the above

Error item

Some error items may be displayed simultaneously according to the cause. If some error items are displayed simultaneously, the detection of the cause can be performed by the combination of display items

Error item	Description	Possible malfunction factor/Action to take
CAN COMM CIRCUIT	CAN communication malfunction is detected.	Perform diagnosis with CONSULT-III, and then repair the malfunctioning parts according to the diagnosis results. Refer to DIAGNOSIS PROCEDURE  .
CONTROL UNIT (CAN)	CAN initial diagnosis malfunction is detected.	Replace the AV control unit.
CONTROL UNIT (AV)	AV communication circuit initial diagnosis malfunction is detected.
FLASH-ROM Error Of Control Unit	AV control unit malfunction is detected.
Connection Of Gyro
XM SERIAL COMM Error
CAN Controller Memory Error
Bluetooth Module Connection Error
HDD CONN Error
HDD READ Error
HDD WRITE Error
HDD COMM Error
HDD ACCESS Error
DSP CONN Error
DSP COMM Error
Internal Communication Error	Malfunction is detected in AV control unit power supply and ground circuits.	Check AV control unit power supply and ground circuits. When detecting no malfunction in those components, replace AV control unit.
GPS Communication Error	GPS malfunction is detected.	An intermittent error caused by strong radio interference may be detected unless any symptom (GPS reception error, etc.) occurs. Replace the AV control unit if the malfunction occurs constantly.
GPS ROM Error
GPS RAM Error
GPS RTC Error
Front Display Connection Error	When either one of the following items is detected: front display unit power supply and ground circuits are malfunctioning. serial communication circuits between AV control unit and front display unit are malfunctioning. serial communication signal between AV control unit and front display unit is malfunctioning.	Front display unit power supply and ground circuits. Serial communication circuits between AV control unit and front display unit.
GPS Antenna Error	GPS antenna connection malfunction is detected.	GPS antenna.
XM Antenna Connection Error	Satellite radio antenna connection malfunction is detected.	Satellite radio antenna feeder. Satellite radio antenna.
AV COMM CIRCUIT Internal Communication Error	Malfunction is detected in AV control unit power supply and ground circuits.	Check AV control unit power supply and ground circuits. When detecting no malfunction in those components, replace AV control unit.
AV COMM CIRCUIT Switches Connection Error	When either one of the following items is detected: Multifunction switch power supply and ground circuits are malfunctioning. AV communication signal between AV control unit and multifunction switch is malfunctioning.	Multifunction switch power supply and ground circuits.
AV COMM CIRCUIT DVD Deck Connection Error	When either one of the following items is detected: DVD player power supply and ground circuits are malfunctioning. AV communication signal between AV control unit and DVD player is malfunctioning.	DVD player power supply and ground circuits.
AV COMM CIRCUIT Amplifier Connection Error	When either one of the following items is detected: BOSE amp. power supply and ground circuits are malfunctioning. AV communication signal between AV control unit and BOSE amp. is malfunctioning.	BOSE amp. power supply and ground circuits.
AV COMM CIRCUIT Rearview Camera Connection Error	When either one of the following items is detected: camera control unit power supply and ground circuits are malfunctioning. AV communication signal between AV control unit and camera control unit is malfunctioning.	Camera control unit power supply and ground circuits.
AV COMM CIRCUIT iPod Connection Error	When either one of the following items is detected: iPod adapter power supply and ground circuits are malfunctioning. AV communication circuits between camera control unit and iPod adapter are malfunctioning. AV communication signal between AV control unit and iPod adapter is malfunction.	iPod adapter power supply and ground circuits. AV communication circuits between camera control unit and iPod adapter.
AV COMM CIRCUIT Rearview Camera Connection Error iPod Connection Error	Malfunction is detected in AV communication circuits between BOSE amp. and camera control unit.	AV communication circuits between BOSE amp. and camera control unit.
AV COMM CIRCUIT Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error	Without DVD player models AV communication circuits between multifunction switch and BOSE amp. are malfunctioning. With DVD player models AV communication circuits between DVD player and BOSE amp. are malfunctioning.	AV communication circuits between multifunction switch and BOSE amp. (without DVD player models) AV communication circuits between DVD player and BOSE amp. (with DVD player models)
AV COMM CIRCUIT DVD Deck Connection Error Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error	Malfunction is detected in AV communication circuits between multifunction switch and DVD player.	AV communication circuits between multifunction switch and DVD player.
Without DVD player models AV COMM CIRCUIT Switches Connection Error Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error	Malfunction is detected in AV communication circuits between multifunction switch and AV control unit.	AV communication circuits between multifunction With DVD player models switch and AV control unit.
AV COMM CIRCUIT Switches Connection Error DVD Deck Connection Error Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error
Without DVD player models AV COMM CIRCUIT Internal Communication Error Switches Connection Error Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error	Malfunction is detected in AV communication circuits.	Check and repair the short circuit in AV communication circuits.
With DVD player models AV COMM CIRCUIT Internal Communication Error Switches Connection Error DVD Deck Connection Error Amplifier Connection Error Rearview Camera Connection Error iPod Connection Error

Vehicle CAN Diagnosis

• CAN communication status and error counter is displayed.
• The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
• The error counter is erased if "Reset" is pressed.
  Fig 15: Identifying Screen Display - CAN Communication Status & Error Counter

  Courtesy of NISSAN MOTOR CO., U.S.A.

Items	Display (Current)	Malfunction counter (Past)
Tx (HVAC)	OK / UNKWN	OK / 0 - 39
Rx (ECM)	OK / UNKWN	OK / 0 - 39
Rx (Cluster)	OK / UNKWN	OK / 0 - 39
Rx (BCM)	OK / UNKWN	OK / 0 - 39
Rx (HVAC)	OK / UNKWN	OK / 0 - 39
Rx (USM)	OK / UNKWN	OK / 0 - 39
Rx (TPMS)	OK / UNKWN	OK / 0 - 39
Rx (STRG)	OK / UNKWN	OK / 0 - 39

AV COMM Diagnosis

• Displays the communication status between AV control unit (master unit) and each unit.
• The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
• The error counter is erased if "Reset" is pressed.
  Fig 16: Identifying Multi AV System Display - AV COMM Diagnosis Screen

  Courtesy of NISSAN MOTOR CO., U.S.A.

Items	Status (Current)	Counter (Past)
C Tx (ITM-Primary SW)	OK / UNKWN	OK / 0 - 39
C Rx (Primary SW-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (STRG SW-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (Audio-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (Amp-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (Rear Camera-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (DVD-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (XM-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (iPod-ITM)	OK / UNKWN	OK / 0 - 39
C Rx (Amp-Audio)	OK / UNKWN	OK / 0 - 39
C Rx (DVD-Audio)	OK / UNKWN	OK / 0 - 39
C Rx (iPod-Audio)	OK / UNKWN	OK / 0 - 39
C Tx (Audio-ITM)	OK / UNKWN	OK / 0 - 39

Hands-Free Phone

The hands-free phone reception volume adjustment, microphone and speaker test, and memory erase functions are also available.

Camera Cont.

The two functions of "Connection Confirmation" and "Adjust Offset of Rear View Camera" are available. CONNECTION CONFIRMATION

The steering angle sensor, reverse signal and vehicle speed sensor can be inspected.

Diagnosis item	Display	Vehicle status
Steer. Angle Sensor	ON	When steering the vehicle with ignition switch ON (remains ON until connection mode is stopped when it is turned ON).
	OFF	Ignition switch at ACC. No steering with ignition switch ON.
	-	Malfunction detected in camera connection recognition signal.
Reverse Sensor	ON	Selector lever is in "R" with ignition switch ON.
	OFF	Ignition switch at ACC. Selector lever is in position other than "R" with ignition switch ON.
	-	Malfunction detected in camera-connection recognition signal.
Vehicle Speed Sensor	ON	Vehicle speed is more than 0 km/h (0 MPH) with ignition switch ON.
	OFF	Ignition switch at ACC. Vehicle speed is 0 km/h (0 MPH) with ignition switch ON.
	-	Malfunction detected in camera connection recognition signal.
Side view Switch	-	Not used.

ADJUST OFFSET OF REAR VIEW CAMERA

Use this mode to adjust the guide line display position of the rearview monitor if necessary after removing the rear view monitor camera.

Bluetooth

Confirm/Change Passkey

• The passkey of Bluetooth can be confirmed and changed.
• The passkey can be changed by four digits within 0 to 9.
  Fig 20: Identifying Screen Display - Bluetooth Passkey

  Courtesy of NISSAN MOTOR CO., U.S.A.

Comfirm/Change Device Name

• The device name of Bluetooth can be confirmed and changed.
• The device name can be changed by sixteen digits within A to Z (small character can be used) and - (hyphen).
  Fig 21: Identifying Screen Display - Device Name Of Bluetooth

  Courtesy of NISSAN MOTOR CO., U.S.A.

SAT

• Change Channel
  • Any necessary channels required to receive traffic information from the satellite radio system can be set.
    Fig 22: Identifying Screen Display - Channel List

    Courtesy of NISSAN MOTOR CO., U.S.A.
• Change Application ID
  • Any application ID'-s required to receive traffic information from the satellite radio system can be set.
    Fig 23: Identifying Multi AV System Display - Change Application ID Screen

    Courtesy of NISSAN MOTOR CO., U.S.A.

Delete Unit Connection Log

Deletes any unit connection records and error records from the AV control unit memory. (Clear the records of the unit that has been removed.)

Initialize Settings

Deletes data stored in HDD.
