System Diagram

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

WITH NAVIGATION

Fig 1: Identifying Multi AV System System Diagram (With Navigation)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.

WITH NAVIGATION AND DVD PLAYER

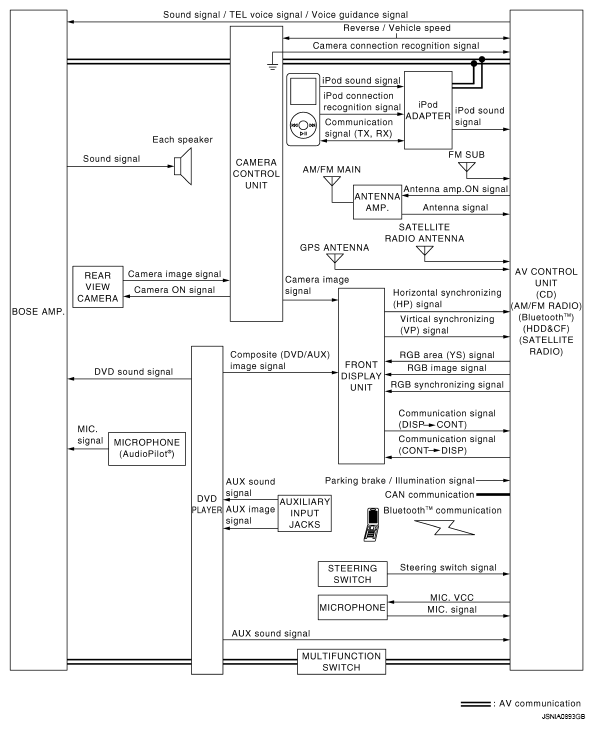

Fig 2: Identifying Multi AV System System Diagram (With Navigation & DVD Player)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
