Service Information: Radiator: Component

WARNING: This page is about a different car, the 2010 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

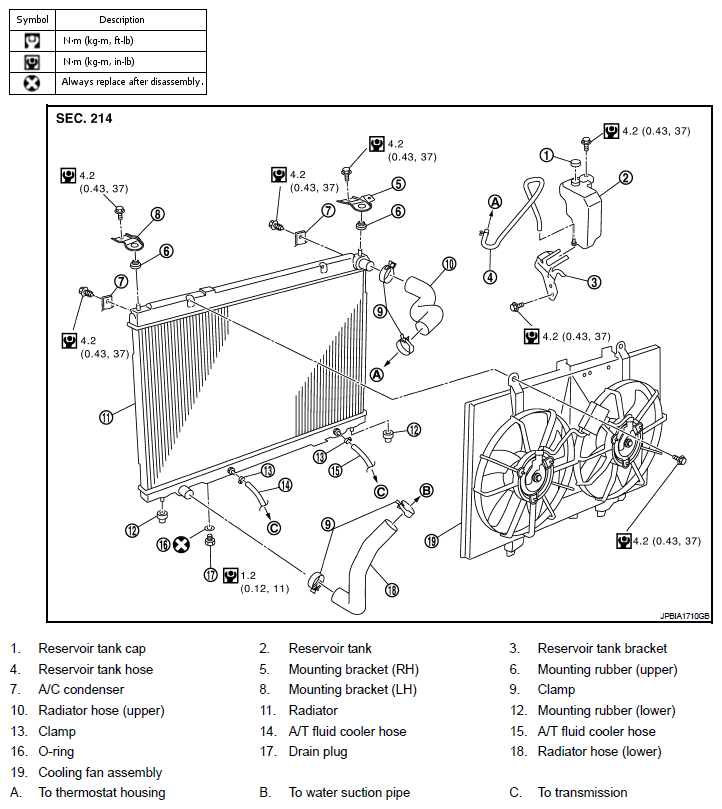

Fig 1: Exploded View Of Radiator With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to Component for symbols above.
